Summary of Contents for Beta Three Professional Theater Series

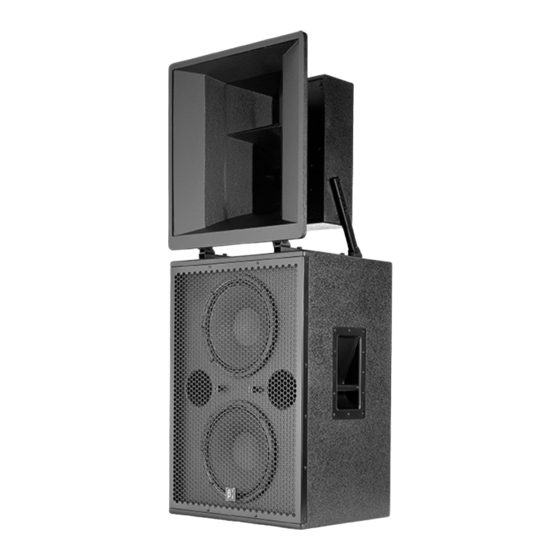

- Page 1 CS3415A Professional Theater Series Loudspeaker System User Manual U M - C S 3 4 1 5 A - 2 0 1 3 1 0 3 1 v e r A...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buyin product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
CS3415A CONTENT Professional Theater Series Loudspeaker System CONTENT INTRODUCTION Features Description Applications INSTALLATION AND CONNECTION System Installation Reference Loudspeaker Connection TECHNICAL SPECIFICATION Technical Sheet Frequency Response And Impedance Curve 2D Dimension Product information subjects to be updated without notification, please visit www.elderaudio.com for... -
Page 4: Introduction
Applications prolong the service life of the product. Church Professional theater series products, through mutual combination, can be applied to different scale of the Auditorium cinema place, through the installation of the professional... -
Page 5: Installation And Connection
CS3415A INSTALLATION AND CONNECTION Professional Theater Series Loudspeaker System System Connection Reference Speaker Ground Loudspeaker Connection Connection way between speaker and Speakon NL4 cable Terminal Plate MID/HF Crossover MID/HF Terminal Plate... -
Page 6: Technical Specification
CS3415A TECHNICAL SPECIFICATION Professional Theater Series Loudspeaker System Technical Sheet LF:15" 2, MF:10" 1, HF: 75mm 1 Transducers : LOW:35Hz-550Hz/29Hz-700Hz MID/HIGH:400Hz-15kHz/300Hz-20kHz Frequency response(-3dB)/ (-10dB) Sensitivity(1W@1m): LOW:102dB MID/HIGH:105dB Crossover point: LOW/MID:350Hz MID/HIGH:1.5kHz Dispersion(H×V): LOW:900W MID/HIGH:300W Power(RMS): Rated impedance: LOW:4 Ohm MID/HIGH:8 Ohm DC impedance: LOW:2.8 Ohm MID/HIGH:6.2 Ohm... -
Page 7: 2D Dimension
CS3415A TECHNICAL SPECIFICATION Professional Theater Series Loudspeaker System 2D Dimension Top view Front view Side view 700mm 600mm [27.6in] [23.6in] Back view... - Page 8 www.beta3pro.com...
