Summary of Contents for Beta Three QS1000t

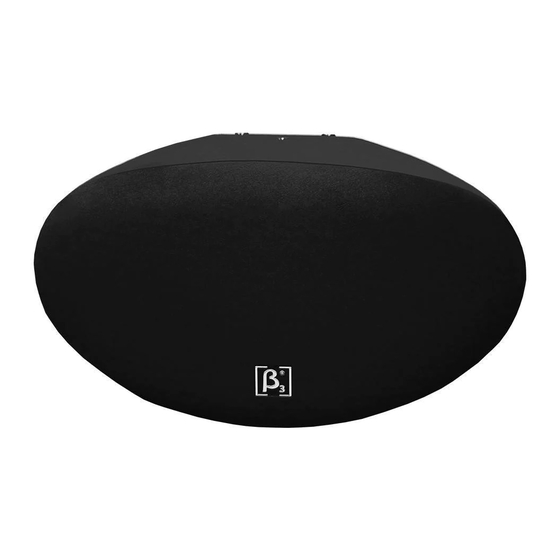

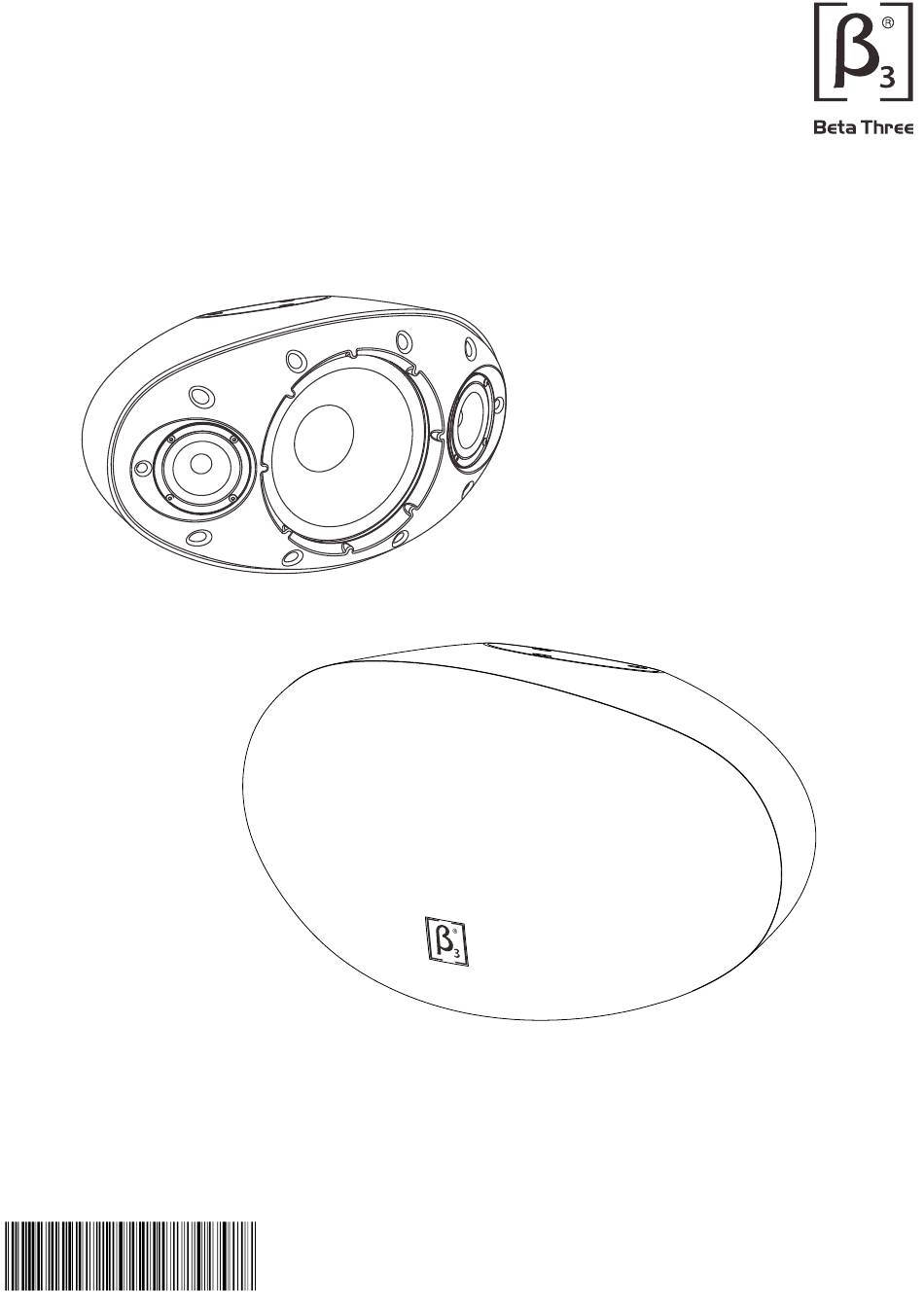

- Page 1 QS1000t 10" Two Way Full Range Pro Speaker System User Manual U M- Q S 1 0 0 0 t - 2 0 1 2 0 5 1 1 v e r A...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buying product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
QS1000t CONTENT 10" Two Way Full Range Pro Speaker System CONTENT INTRODUCTION Features Description Applications CONNECTION Terminal Plate System Connection Reference INSTALLATION Installation Accessories Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response And Impedance Curve 2D Dimension Product information subjects to be updated without notification, please visit www.elderaudio.com for... -
Page 4: Introduction
3 x M8 hang point. Customizable grill and cabinet color. Description QS1000t is a 10"2-way full range speaker system with wide dispersion. Its sound is nature and clear while the cabinet is handy, compact and the appearance elegant and fashionable. It's applicable in small and medium performing stages, KTV, multi-function halls as sound monitoring and major and fill sound reinforcement. -
Page 5: Connection
QS1000t CONNECTION 10" Two Way Full Range Pro Speaker System QS1000t connects the amplifier with a wire clamp. Two groups of parallel terminals enable it to connect to another speaker conveniently. Terminal Plate Red£1+ Black£1- Crossover HIGH HIGH White£2+ Green£2-... -
Page 6: Installation
INSTALLATION 10" Two Way Full Range Pro Speaker System Installation Accessories Installation Reference QS1000t has 3 hanging points to work together with the 1. Ceiling special designed accessories for fast and convenient hanging, wall-mounting and on standing with adjustable angles. -
Page 7: Technical Specification
QS1000t TECHNICAL SPECIFICATION 10" Two Way Full Range Pro Speaker System Technical Sheet Speaker Testing Method 1. Frequency response System: Two way full range speaker Use Pink noise to test the speaker in the anechoic room, Tweeter: 2 4" High frequency drivers... -
Page 8: 2D Dimension
QS1000t TECHNICAL SPECIFICATION 10" Two Way Full Range Pro Speaker System 2D Dimension Toy view 550mm [21.5in] Side view Front view Back view 316mm [12.4in] 336mm [13.2in] Bottom view... - Page 9 Notes:...
