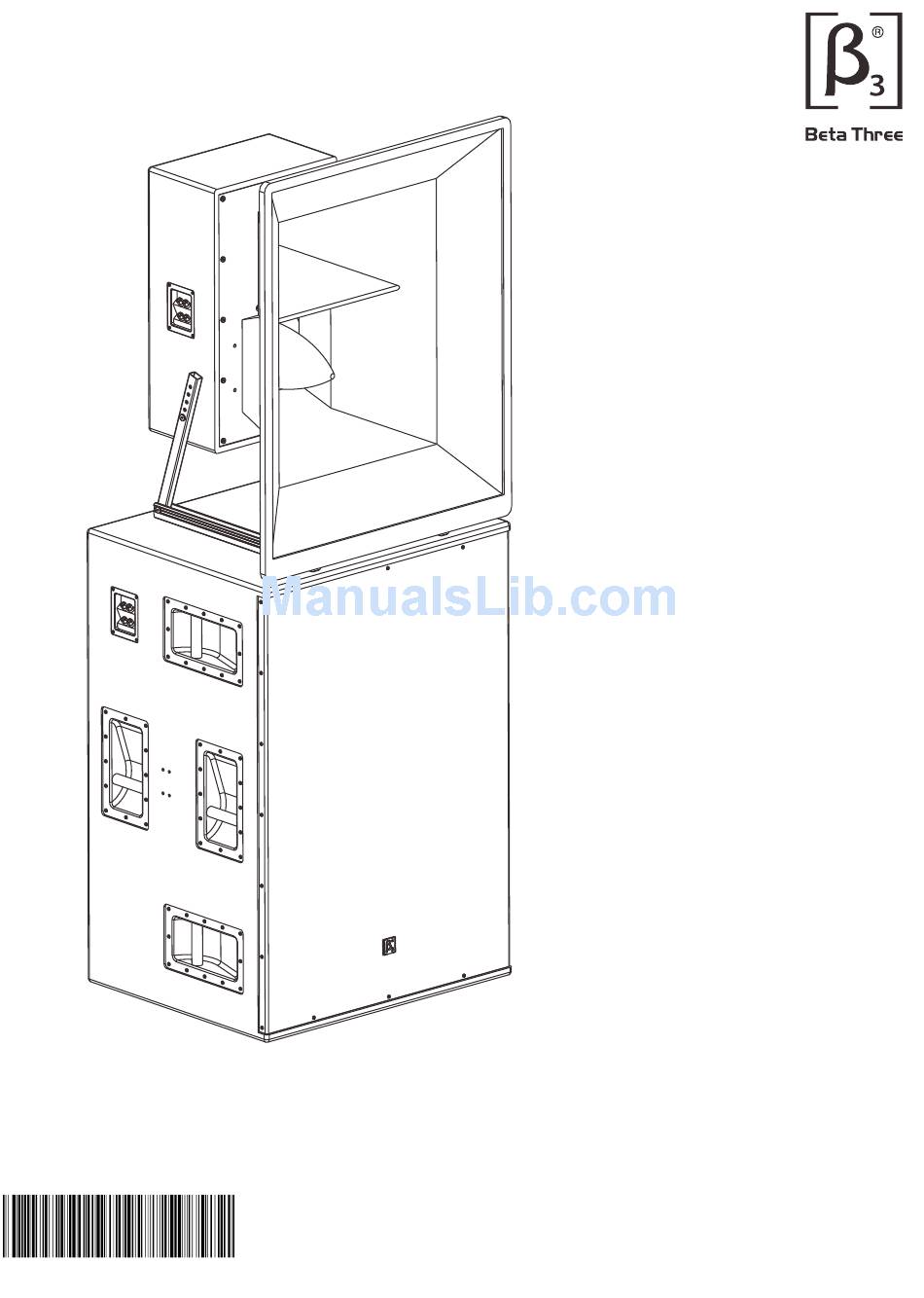

- Page 1 CS4615A Professional Theater Series Loudspeaker System User Manual UM-CS4615A-20130914verA...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buyin product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
CS4615A CONTENT Professional Theater Series Loudspeaker System CONTENT INTRODUCTION Features Description Applications INSTALLATION AND CONNECTION System Connection Reference Loudspeaker Connection TECHNICAL SPECIFICATION Technical Sheet Frequency Response And Impedance Curve(MID/HIGH) Frequency Response And Impedance Curve(LOW) 2D Dimension Installation Instructions Product information subjects to be updated without notification, please visit www.elderaudio.com for... -
Page 4: Introduction
CS4615A INTRODUCTION Professional Theater Series Loudspeaker System CS4615A Professional Theater Series Loudspeaker System Features High SPL, high sensitivity. Four 15" big power woofers. One 12" compression horn mid range transducer. One 2" compression driver with Neodymium coaxial design. 60 wid edis persioncan get the wid ercov ering. -
Page 5: Installation And Connection
CS4615A INSTALLATION AND CONNECTION Professional Theater Series Loudspeaker System System Connection Reference Speaker Ground Loudspeaker Connection Connection mode1(LOW): Terminal Plate Connection mode1(MID/HIGH): Crossover Terminal Plate Crossover... -
Page 6: Technical Specification
CS4615A TECHNICAL SPECIFICATION Professional Theater Series Loudspeaker System Technical Sheet Transducer: LOW:15" 4,MID/LOW:12" 1, MID/HIGH: 2" 1 compression driver(Neodymium coaxial design) Frequency response(-3dB) /(-10dB) LOW:40Hz-350Hz/35Hz-700Hz MID/HIGH:90Hz-17kHz/80Hz-18kHz Sensitivity(1W@1m): LOW:101dB*2 MID/HIGH:103dB Crossover point: LOW:100Hz-250Hz MID/HIGH:610Hz/6.4kHz Dispersion(H V): 90° 60° LOW:900W*2 MID/HIGH:400W Power(RMS):... -
Page 7: Frequency Response And Impedance Curve(Low)
CS4615A TECHNICAL SPECIFICATION Professional Theater Series Loudspeaker System Frequency Response(LOW) 1000 10000 20000 Frequen cy (Hz) Impedance Curve(LOW) -120 -150 -180 10 Hz Frequency (Hz) -
Page 8: 2D Dimension
CS4615A TECHNICAL SPECIFICATION Professional Theater Series Loudspeaker System 2D Dimension Top view Front view Side view 820mm 628mm [32.3in] [24.7in] Back view... -
Page 9: Installation Instructions
CS4615A TECHNICAL SPECIFICATION Professional Theater Series Loudspeaker System Installation Instructions Step 1 High frequency speaker Loose out in high and fixed screw (Left/Right) support. Support(Right) Support(Left) Support Plates Step 2 Step 3 Place the high-pitched Choose good generally need sound box in the bass... - Page 10 www.beta3pro.com...
