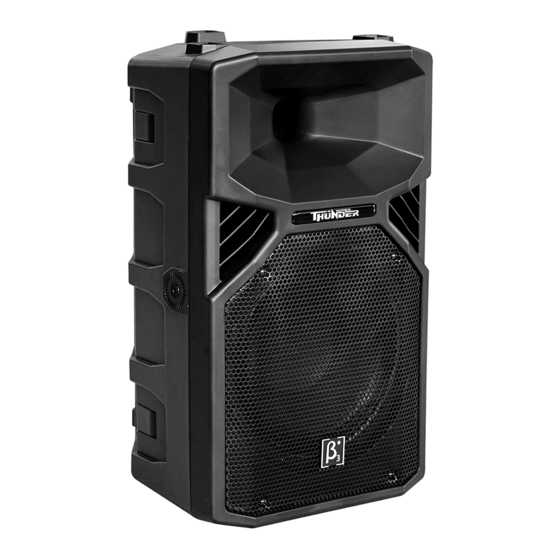

- Page 1 T12a Two Way12" Full Range Active Speaker THUNDER Series Pro Loudspeaker System User Manual UM-T12a-20170309 ver D...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buyin product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
T12a CONTENT THUNDER Series Pro Loudspeaker System CONTENT INTRODUCTION Features Description Applications AMPLIFIER MODULE Amplifier Module INSTALLATION Mounting Accessories Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response and Impedance Curve 2D Dimension Product information is subject to change without prior notification. Please visit www.elderaudio.com... -
Page 4: Introduction
Integrated feet for stage monitor applications. M8 rigging points for convenient installation. Description T12a Thunder series is designed for portable and installed Applications applications. The integrated polymer PVC cabinet design ensures durability and full natural high performance sound. -
Page 5: Amplifier Module
T12a AMPLIFIER MODULE THUNDER Series Pro Loudspeaker System Rear Panel Amplifier Module MODE SYSTEM LINE MUSIC FLAT LOW CUT CLIP MIC/LINE IN A LINE OUT A VOLUME 0 dB LINE IN B LINE OUT B MIX OUT 12" ACTIVE LOUDSPEAKER... -
Page 6: Installation
T12a INSTALLATION THUNDER Series Pro Loudspeaker System Installation Accessories(Optional) Installation Reference 1. Speaker stand 1.Reference A 2.Reference B 3.Reference C 2. U-Bracket 4.Reference D 5. Speaker stand application Warning: Make sure the mounting accessories safety factor not less than 5:1 or meet the local standard during... -
Page 7: Technical Specification
T12a TECHNICAL SPECIFICATION THUNDER Series Pro Loudspeaker System Specification Frequency response(-3dB): 50Hz-20kHz 130dB Max.SPL: Dispersion(H×V): 90 ×60 × Transducer: 12" Woofer × 1.7" Compression Driver Rated impedance: 8 Ohms XLR for input, XLR for output Connector: Input: Channel one (Mic/Line) balanced input... -
Page 8: 2D Dimension
T12a TECHNICAL SPECIFICATION THUNDER Series Pro Loudspeaker System 2D Dimension Top view 368mm [14.5in] Side view Front view Back view Bottom view... - Page 9 Notes:...
- Page 10 www.beta3pro.com.
