User Manual

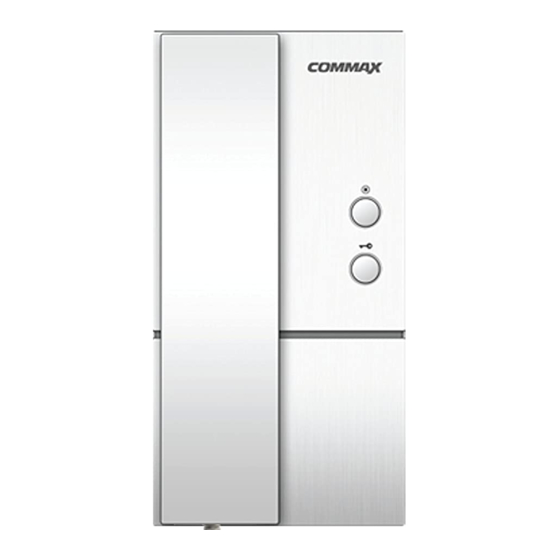

DOOR PHONE DP-LA01M,LA01S

• Thank you for purchasing COMMAX products.

• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Do you have a question about the DP-LA01M and is the answer not in the manual?

Page 1: User Manual
User Manual DOOR PHONE DP-LA01M,LA01S • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.
Page 2 (Volume can be adjusted by the switch on remove cover(or back) no user-serviceable part inside refer servicing to qualified service the side of handset: only DP-LA01M) personnel. 2. Pick up one handset between Master and Slave and start the communication.
Page 3: Specifications
Call : High 400mW OUTPUT POWER Low 100mW Talk : 70mW 30m, 0.65ø(When talking to Master) DISTANCE 50m, 0.65ø(When talking to door station) DP-LA01M :208(D) X 98(W) X 60(H)mm DIMENSION DP-LA01S :208(D) X 98(W) X 65(H)mm DP-LA01M : 510g WEIGHT DP-LA01S : 675g...
Page 4 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2016.04.105...
