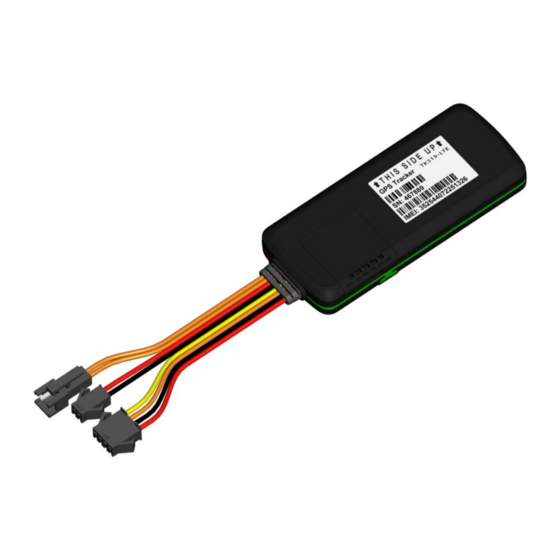

- Page 1 TRACKER LTE Cat M1/NB1 For Vehicle <GNSS+GPRS+LTE CAT M1/NB1+SOS/Temperature+Battery> TK418 User Manual Real-Time Vehicle Tracking System...
-
Page 2: Table Of Contents
CATLOG Ⅰ. Product Features ......5 Ⅱ. Components and Accessories ..7 Ⅲ. SIM card Installation .....9 Ⅳ. Device Installation ...... 10 4.1 Install device......10 4.2 Device wiring definition..12 4.3 Relay wiring......14 Ⅴ. Power On / Off ......15 5.1 Power on....... 15 5.2 LED Indicators......15 5.3 Power off.......16 Ⅵ. - Page 3 7.2 Vibration Alarm....18 7.3 Collision / falling Alarm..18 7.4 Speed Alarm......18 7.5 Shift Alarm......19 7.6 Geo-fence Alarm....19 7.7 Power disconnect Alarm..19 7.8 Low battery Alarm....19 Ⅷ. Device Setting......20 Ⅸ. Trouble shooting......20 9.1 Cannot connect platform..20 9.2 Offline status......
- Page 4 If some contents and operation steps are inconsistent with those for the actual product, the latter will prevail. With TK418 GPS Tracker, we can monitor your vehicle by GPS satellite positioning system, temperature detection unit, GPRS/LTE CAT M1 communication and Internet, a real-time...
-
Page 5: Ⅰ. Product Features
■ Built-in G-sensor, vibration, collision and falling alarm. ■ GEO-fence alarm, speed & shift alarm. ■ Relay to cut engine, auto cut engine when over speed and recover when normal speed. ■ EELINK protocol 2.0, Firmware OTA ■ Waterproof level IP65... - Page 6 Basic Specifications Voltage 12/ 24/ 36/ 48/ 60/ 72 VDC Work Current GPRS(245-265mA); LTE(260mA) Standby Current IDLE(2mA@12V) GPS Accuracy 5-15m LBS Accuracy >100m GPS Band 1575MHz GSM Band 850/900/1800/1900MHz Global LTE Band bands(1,2,3,4,5,8,12,13,17,18,1 9,20,25,26,28 and 39) ± 0.5℃ Temperature-Sensor Accuracy -30℃~80℃...
-
Page 7: Ⅱ. Components And Accessories
Ⅱ. Components and Accessories ■ Components -Top Front- (Towards sky) -Bottom -... - Page 8 ■ Accessories Power Cable(Default) Relay(Optional) Temperature Sensor(Optional) SOS(Optional) External Battery(Optional) Relay for remotely cut engine, Temperature sensor used for monitoring temperature, SOS button used for help, External battery used for power supplier, (Temperature senor, SOS button, External battery can be only chose one of the three) Please note that device should be matched with accessories to realize these functions.
-
Page 9: Ⅲ. Sim Card Installation
Ⅲ. SIM Card Installation Open the packing case, check if device is OK and accessories are intact, You need a suitable SIM card for using device, contact your dealer if any question; Open SIM Card cover Put SIM Card and waterproof rubber... -
Page 10: Ⅳ. Device Installation
Press cover and close Note: ●Please cut off the power before installing or uninstalling SIM card. ●SIM card should have GPRS/LTE function, open it’s network through operator. ●SIM card should open Caller Identification function for telephone querying. ●If you enable the PIN code of the SIM card, please use your mobile phone to disable the PIN code. - Page 11 Please make sure to install device with this side upward, and use wide strong double-sided adhesive sponge to fix it. 4.1.2 Installation Notice ●Hide device properly inside the car body in order to avoid damages. ●Keep device away from RF emission sources such as backing radar, car burglar alarm and other vehicle mounted communication devices.
-
Page 12: Device Wiring Definition
4.2 device wiring definition Total schematic wiring device 4.2.1 Power cables and interface The standard input voltage of device is 7V-72VDC, so please choose the our original power cables, the red cable is positive and the black cable is negative; Please ground negative pole separately or ground it to ground connection, not to any other ground. - Page 13 ignition status of vehicle; the ACC cable can also be connected directly to the positive pole of the vehicle power, then the position server think that the vehicle is always ignited. Connect the 4# cable (yellow cable) to the 85 device(with small yellow cable) of the relay.
-
Page 14: Relay Wiring
4.3 Relay wiring Relay wiring diagram shows how to wire the relay to control the fuel pump: 4.3.1 Connect the 86 port to the positive pole of the vehicle power (+12V/+24V), connect the 85 port to the 4# cable of device. 4.3.2 Cut off the positive pole of the fuel pump, next serial connect the positive pole to the 87a port of the relay, and connect another pole to 30 port,... -
Page 15: Ⅴ. Power On / Off
Notice: Be sure the voltage of the vehicle power should match up to the working voltage of relay, or relay will be damaged. Ⅴ. Power On / Off 5.1 Power on Power on: insert a valid SIM card and wire all the cables, device will power on. -
Page 16: Power Off
LED(indicates GSM/LTE working state) Searching for Fast blinking GSM/LTE network GSM/LTE works Slow blinking normally Blue LED(indicates GPS signal state) Searching GPS Fast blinking Satellites Slow blinking GPS works normally 5.3 Power off Disconnect the external power and take off SIM card, after a while device will shut down. -
Page 17: Inquiry By Sms
your dealer to get installation package. 6.2 Inquiry by SMS You can write a positioning SMS sending to device to inquiry position, device will reply position SMS or map link. The SMS commands please refer to the Operation Commands 6.3 Cut Engine/Restore 6.3.1 Cut off oil circuits Server(GPRS/LTE) or Manager number (SMS) can send cut-fuel-circuit commands to device when... -
Page 18: Vibration Alarm
SOS Alarm Conditions: When SOS button is long pressed for 3 seconds. Note: SOS button must be installed (optional accessory), and SOS administrator number must be set. When the SOS alarm occurs, terminal will dial the set SOS administrator number 3 times until get through. -
Page 19: Shift Alarm
setting speed) Note: You need to set the low speed limit and the high speed, and an over-speed setting to cut engine 7.5 Shift Alarm Conditions: When vehicle occur a setting shift in the Flameout status. Note: Only valid in flameout state and vehicle occur a setting shift distance. -
Page 20: Ⅷ. Device Setting
Note: When above alarm occurs, device will send alarm to service platform, meanwhile send a SMS message to the administrator number if the number is set. Ⅷ. Device Setting Please refer to <Operation Commands> Ⅸ. Trouble shooting 9.1 Cannot connect platform device is never online on the position server when installed at the first time. -
Page 21: No Positioned
check them, you can check SIM card following next steps: 1） call SIM card of device and check if you can hear connecting ring. 2）Check if vehicle is in the area where there is no GSM/LTE signal. 3）Check if one device or all devices are offline in the area . -
Page 22: Position Drift
electromagnetic wave absorption material(such as metal blocks), special attention should be paid if there is metal thermal insulation layer or heating layer on the front windshield, so that the position accuracy will decline, and the severe ones will not be positioned. 9.4 Position drift Serious position drift will be found in places where GPS signal is poor. -
Page 23: Warranty Period
following IMEI. 4）Please take care of the warranty card and show it with the original purchase receipts when enjoying the warranty service. 10.2 Warranty period Since the date of purchase, passive waste host has one year warranty. 10.3 After sales Any of the following circumstances not covered by the warranty, but may be appropriate to pay repair:...
