- Page 1 Standby for 3 Years Quick Start Guide GPT12-L...
- Page 2 NOTICE ① A Standard GSM SIM Card needed，do not support CDMA2000； CDMA2000 WCDMA Micro SIM Nano SIM ② GPRS of Sim Card must be opened； Traffic, SMS, Calls and other SIM card service fee charged by operators; ③ Positioning / Remote Power off / Remote command fucntion rely on the network of base station.

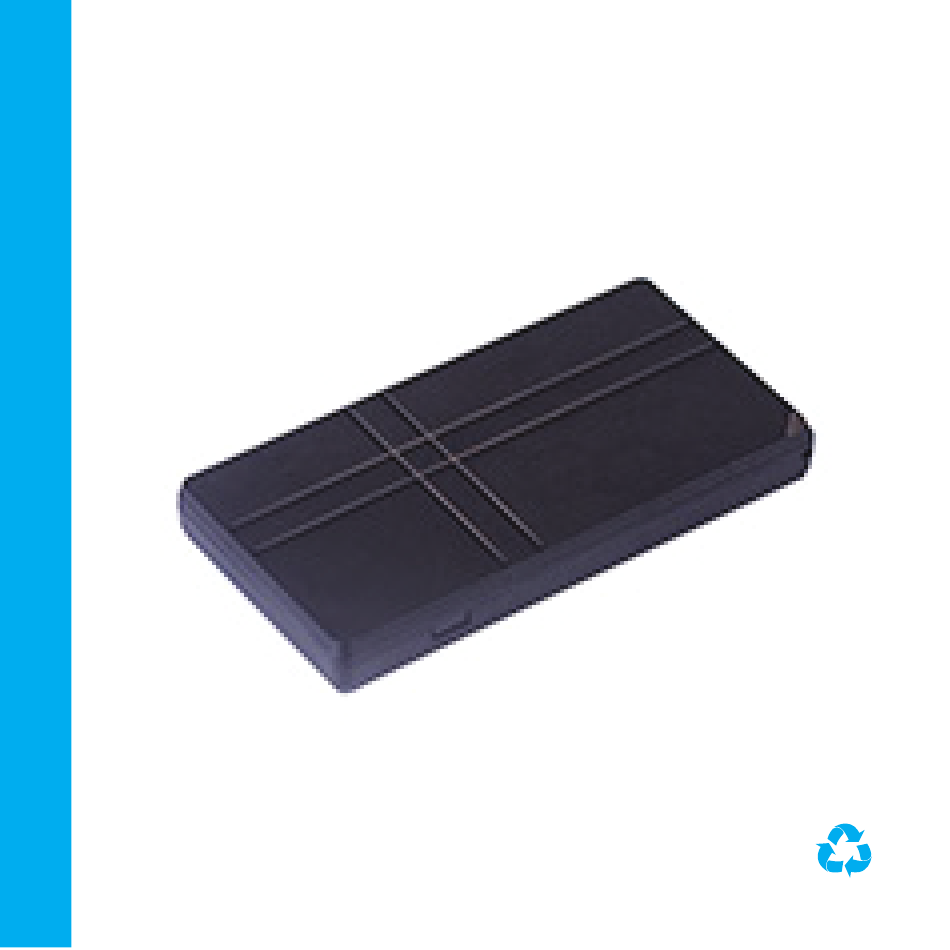

- Page 3 INTRODUCTION G P T 1 2 - L G e n e r a l V i e w L E D I n d i c a t o r S I M S l o t B a t t e r y Po w e r O n / O f f GPS (GPS Satellite signal,Blue) GSM LED ( LBS / Base signal, Red )
- Page 4 Func�on/Parameter Supports quad bands, i.e. 850/900/1800/1900MHz LTE-M/NB-IOT LTE FDD: B1/B2/B3/B /B5/B8/B12/B13/B18/B19/B20/B26/B28 LTE TDD: B39(For LTE-M only) GPS/LBS double-Positioning mode, support A-GPS 5000mAh Battery , standby for 3 years. Long Standby mode, wake up for 5 mins a day, then sleep. Turn to Emergency mode for real time tracking after wake up.
- Page 5 GPS Positioning Accuracy 5-15m (Depend GPS signal) LBS Positioning Accuracy About 200m (Depend Bases Density) GPS Frequency 1575 MHz GSM Frequency 850/900/1800/1900 MHz <3s，<15s，<60s Hot/Warm/Cold Start Time Battery Capacity 5000 mAh 96(L)×50(W)×11.2(H) Dimensions (mm) ...
- Page 6 Q & A Q：Positioned by GPS / LBS ? ：GPS called“Global Positioning System”,GPS device can be positioned by GPS satellite outdoor. Device also can be positioned by base stations of operator which call LBS ,mainly for assistance positioning. Q：Location is not accurate? ：If need accurate positioning, use device outdoor where GPS signal is good and start GPS tracking mode.
- Page 7 Insert SIM, Power on, Installation Open cover and insert SIM to device, notice direction. Lift SIM Slot to remove SIM card. Turn switch to power on, observe GSM / GPS LED untill it works fine（See LED explaination）, Close cover. Stick on board with 3M Velcro. B e g i n E x p e r i e n c e o f G P S t r a c k e r...
- Page 8 Install KEELIN APP, Activate Device Scan QR below to download Keelin APP ® 可依恋 Launch APP , Scan QR on Label to register & activate device 三 年 超 长 待 机 定 位 器 GPT12 Long Standby GPS Tracker IMEI：15 digits IMEI SN：6 digits KEY B e g i n E x p e r i e n c e o f K e e l i n A P P...
- Page 9 Link Long Standby GPS Tracker EELINK Communication Technology CO.LTD Address: 5 Floor, Building 10, Changyuan New Material Port, Gaoxin Middle 1st Rd Nanshan District, Shenzhen, Guangdong, CHINA M ail : apple@eelinktech.com...
