Eelink TK115 User Manual

Professional tracking system

Advertisement

GPS
Tracker
GPS
Tracker
For Vehicle
<GPS+GSM+SMS/GPRS>S
User Manual
V1.6
MODEL:TK115
Professional Tracking System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TK115 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eelink TK115

  • Page 1 Tracker Tracker — For Vehicle <GPS+GSM+SMS/GPRS>S User Manual V1.6 MODEL:TK115 Professional Tracking System...
  • Page 2: Table Of Contents

    CATALOG Ⅰ. Product Features........5 Ⅱ. Components and Accessories....7 Ⅲ. SIM card Installation....... 8 3.1 Before Installation......8 3.2 Install the SIM card......8 3.3 Uninstall the SIM card..... 9 Ⅳ. Terminal Installation......10 4.1 Install terminal....... 10 4.2 Terminal wiring definition..... 12 4.3 Relay wiring........
  • Page 3 Ⅶ. Set up terminal........17 Ⅷ. Terminal Alarm........17 8.1 Vibration Alarm(B type)....17 8.2 Collision / falling Alarm(B type)... 18 8.3 Speed Alarm........18 8.4 Geo-fence Alarm......18 Ⅸ. Trouble shooting........19 9.1 Cannot connect to the platform..19 9.2 Offline status on the platform..19 9.3 Not positioning for a long time..
  • Page 4 Welcome to use our terminal , please read this manual carefully to install and operate terminal exactly. This user manual is for reference only. If some contents and operation steps are inconsistent with those for the actual product, the latter will prevail. Using GPS tracker, we can position, monitor and control the vehicle on the position server via GPRS, GPS...
  • Page 5: Ⅰ. Product Features

    Ⅰ. Product Features ■Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world. ■Wide Input Voltage:9-60V DC. ■GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback. ■Web browser platform, Smart phone app platform and SMS query. ■Supports multiple alarm,acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling...
  • Page 6 Basic Specifications 12VDC/24VDC/48VDC/60 Voltage Standby Current <10mA@12V Work current <30mA@12V GPS positioning accuracy GSM positioning 100m accuracy GPS Frequency 1575MHz GSM Frequency 850/900/1800/1900MHz Hot/warm/cold start <3s,<15s,<60s time Dimensions (mm) 71.8(L)X38.5(W)X10.5(H) Operating 20℃~70℃ temperature 20%~80%RH Operating humidity Net Weight 42 g...
  • Page 7: Ⅱ. Components And Accessories

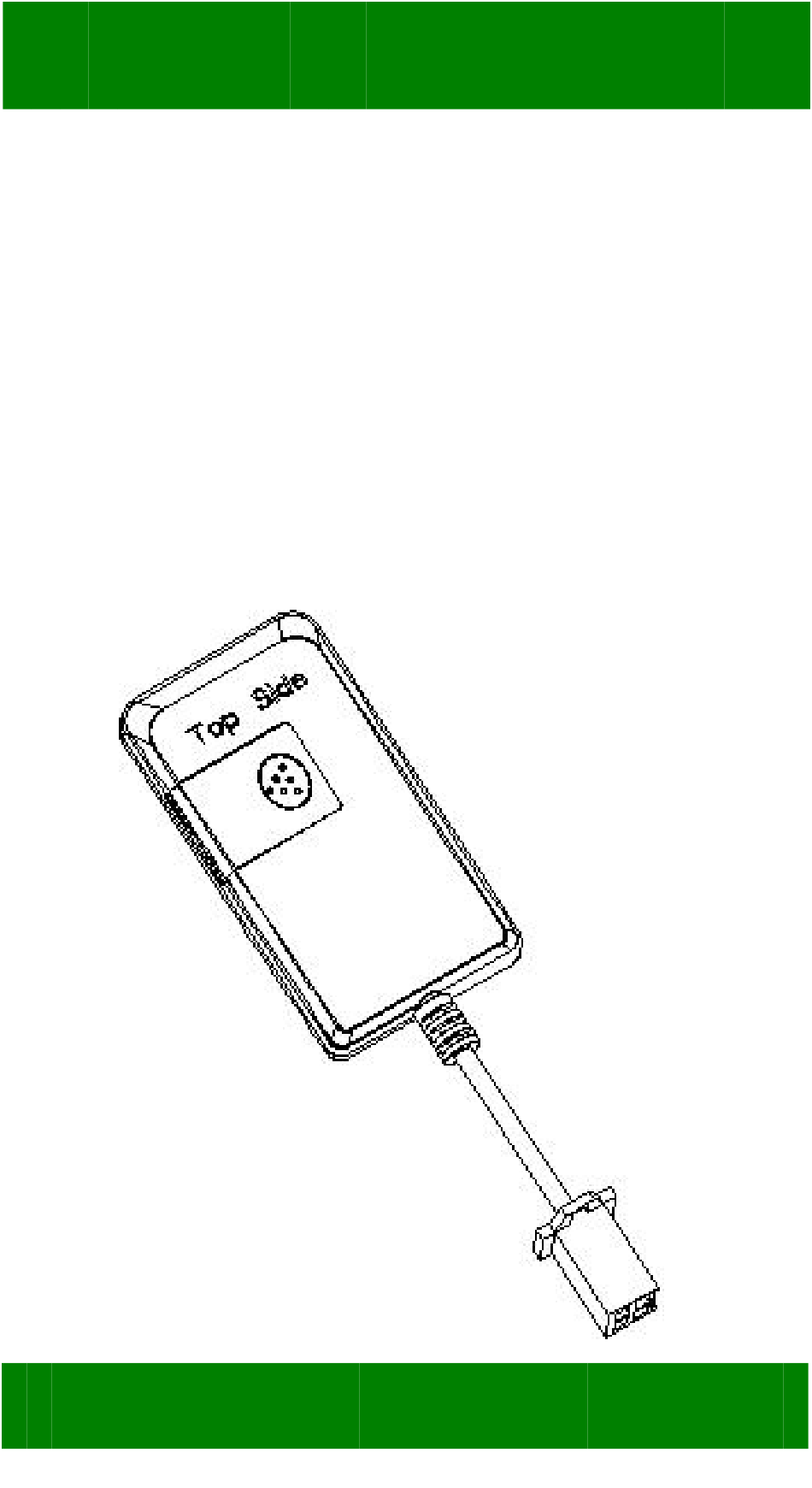

    Ⅱ. Components and Accessories ■ 2.1 Components -Top Front- -Top Back-...
  • Page 8: Ⅲ. Sim Card Installation

    ■ Accessories(reference pictures) Power Cables(Default) Relay(Optional) Relay for remote cut off / resume oil, Please note that function need the device equipped with the matched accessories. Ⅲ. SIM card Installation 3.1 Before Installation Check device and accessories are intact, or please contact your dealer;...
  • Page 9: Uninstall The Sim Card

    1. Insert the SIM card until cannot move it inside anymore; 2. Pull the SIM card back a bit; 3.3 Uninstall SIM card 1. Lift up the edge of the SIM card; 2. Pull out the SIM card. Note:...
  • Page 10: Ⅳ. Terminal Installation

    ●Please cut off the power before installing or uninstalling the SIM card. ●The SIM card should support GPRS and the GPRS should be opening. ●Inquiry by call needs the SIM card supporting the calling line identification presentation. ●If you enable the PIN code of the SIM card, please use your mobile phone to disable the PIN code.
  • Page 11 upward, and use wide strong double-sided adhesive sponge to fix it. 4.1.2 Installation Notice ●Hide terminal properly inside the car body in order to avoid damages. ●Keep terminal away from RF emission sources such as backing radar, car burglar alarm and other vehicle mounted communication devices.
  • Page 12: Terminal Wiring Definition

    4.2 Terminal wiring definition Total schematic wiring terminal...
  • Page 13 4.2.1 Power cables and other interface for remote control The standard input voltage of terminal is 9V-60VDC, so please choose the our original power cables, the red cable is positive and the black cable is negative; Please ground the negative pole separately or ground it to ground connection, not to any other ground.
  • Page 14: Relay Wiring

    4.3 Relay wiring Relay wiring diagram shows how to wire the relay to control the fuel pump: 4.3.1 Connect the 86 port to the positive pole of the vehicle power (+12V/+24V), connect the 85 port to the 4# cable (Yellow) of terminal . 4.3.2 Cut off the positive pole of the fuel pump, next serial connect the positive pole to the 87a port of the relay, and connect another pole to 30 port,...
  • Page 15: Ⅴ. Power On Terminal

    Notice: Be sure that the voltage of the vehicle power should match up to the working voltage of the relay, or relay will be damaged. Ⅴ. Power on terminal 5.1 Power on Power on: insert a valid SIM card and wire all the cables, then terminal power on itself.
  • Page 16: Ⅵ. Inquiry/Monitoring/Cut Oil

    LED(indicates GSM working state) Searching for GSM fast flicker network GSM/GPRS works intermittently flicker normally Blue LED(indicates GPS signal state) Searching GPS fast flicker Satellites intermittently flicker GPS works normally Ⅵ. Inquiry/Monitoring/Cut Oil 6.1 Inquiry by SMS You can write a positioning SMS sending to terminal to inquiry terminal position, terminal will reply position SMS or map link.
  • Page 17: Cut Off/Recover Oil Circuits

    position.We have prepare for you the Android client (Android), Apple clients (IOS), please check with your dealer to get installation package. 6.3 Cut off/Recover Oil circuits 6.3.1 Cut off oil circuits Server(GPRS) or Center number (SMS)can send cut-off fuel commands when needed. The fuel of the vehicle will be cut off on the premise of safety.
  • Page 18: Collision / Falling Alarm(B Type)

    Note: You need to set vibration sensitivity and time, there are arm / disarm switch. 8.2 Collision / Falling Alarm(only B type) Conditions: There is a Vehicle Collision or it’s falling down. 8.3 Speed Alarm Conditions: When the vehicle over and below the set speed.
  • Page 19: Ⅸ. Trouble Shooting

    Ⅸ. Trouble shooting 9.1 Cannot connect to the platform terminal is never online on the position server when installed at the first time. Please check terminal: 1)If the power cables are wired correctly? Pay attention to not connect them to the controlling cables of the vehicle.
  • Page 20: Not Positioning For A Long Time

    2)Check if the vehicle is in the area where there is no GSM signal. 3)Check if one terminal or all terminals are offline in the area where terminal is offline. If all terminals are offline, you should ask the network operator If the network is OK.
  • Page 21: Position Drift Is Serious

    metal blocks), special attention should be paid if there is metal thermal insulation layer or heating layer on the front windshield, so that the position accuracy will decline, and the severe ones will not be positioned. 9.4 Position drift is serious Serious position drift will be found in places where GPS signal is poor.
  • Page 22: Warranty Period

    3)Warranty card is only valid for terminals with the following IMEI. 4)Please take care of the warranty card and show it with the original purchase receipts when enjoying the warranty service. 10.2 Warranty period One year warranty from the purchase date if it is not artificially damaged.
  • Page 23 Warranty Card NAME Address Model IMEI Number Selling Unit Purchase Date...
