- Page 1 LTE CAT M1/NB2 TRACKER For Asset/Vehicle MODEL: GPT46 User Manual <GNSS + GSM/SMS/EGPRS + LTE CAT M1+ LTE NB2> Long Standby Tracking System...
-
Page 2: Table Of Contents
CATLOG Ⅰ. Product Features ........4 Ⅱ. Components and Accessories..6 Ⅲ. SIM Card Installation.......7 Ⅳ. Test & Installation ......8 4.1 Power on/off........ 8 4.2 LED Indicators......8 4.3 Install Device....... 9 Ⅴ. Setting & Inquiry......10 5.1 Web Platform & APP....10 5.2 SMS.......... - Page 3 If some contents and operation steps are inconsistent with those for the actual product, the latter will prevail. With GPT46 Long Standby GPS Tracker, we can monitor your vehicle or asset by GPS satellite positioning system, GPRS/LTE CAT M1/LTE NB2 communication and Internet, remote location of vehicles or asset can be achieved through a powerful service platform.
-
Page 4: Ⅰ. Product Features
■ 5500mAh rechargeable lithium Battery ■ IP65 waterproof level ■ Low power alarm, Vibration alarm, GEO-fence alarm ■ Temperature alarm, Light alarm ■ Keelin Platform/ Keelin APP/ SMS inquiry ■ Support EELINK 2.0, OTA Firmware upgrade ■ Third party platform integration... - Page 5 Basic Specifications LTE data (400mA); Work Current GPRS data (500mA) Idle(3mA);30uA(power off) GNSS Accuracy <2M @ Open Sky GNSS Band 1575MHz EGPRS Band 850/900/1800/1900MHz B1/B2/B3/B4/B5/B12/B13/ LTE CAT M1 Band B14/B18/B19/B20/B25/B2 6/B27/B28/B66/B85 B1/B2/B3/B4/B5/B12/B13/ LTE CAT NB2 Band B18/B19/B20/B25/B26/B2 7/B28/B66/B71/B85 <3s，<26s，<35s Hot/warm/cold Start 5500mAh;...
-
Page 6: Ⅱ. Components And Accessories

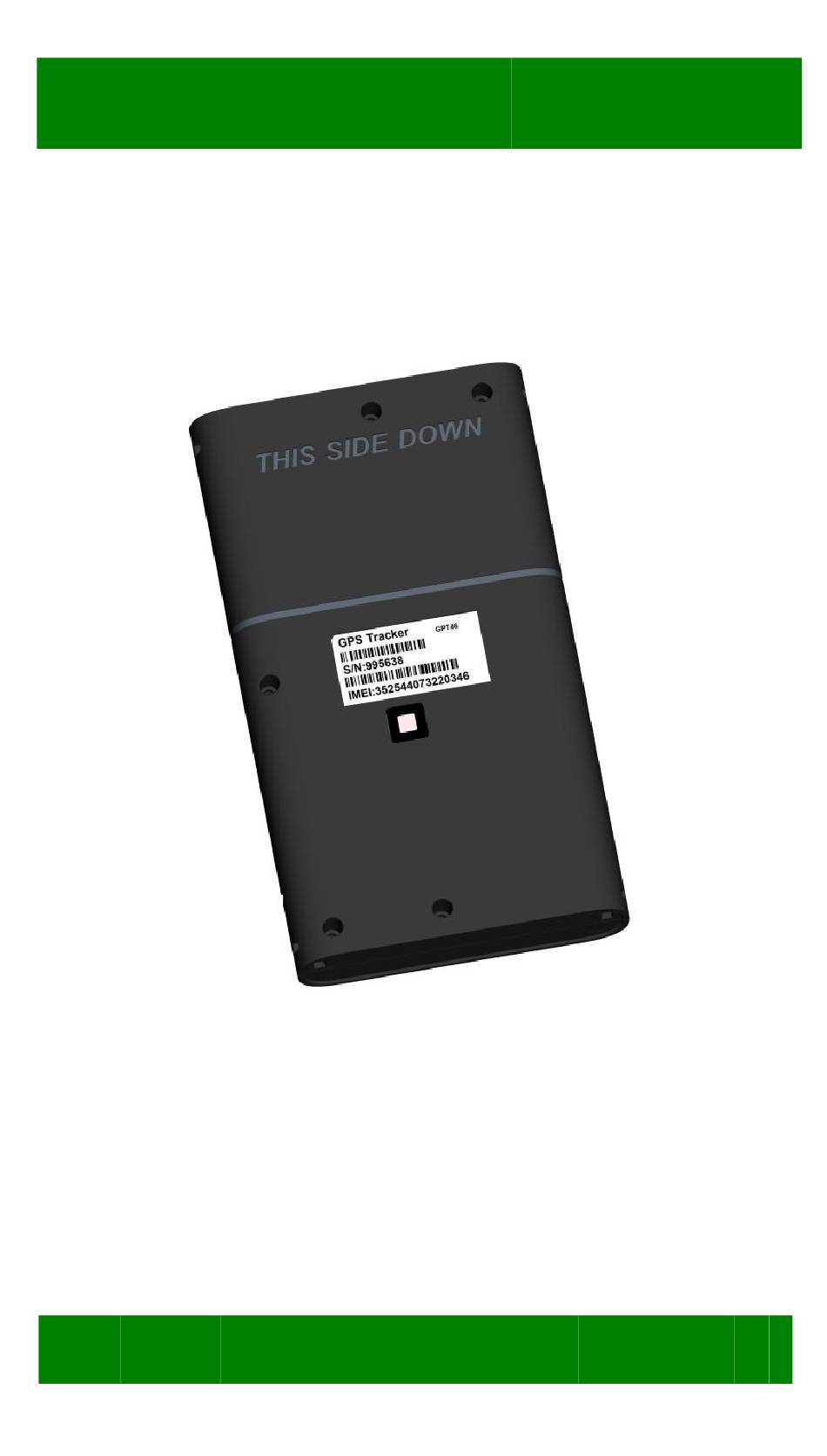

Ⅱ. Components and Accessories ■ Components -Top Front- (Towards sky) -Bottom - ■ Accessories 3M Velcro (default) -
Page 7: Ⅲ. Sim Card Installation

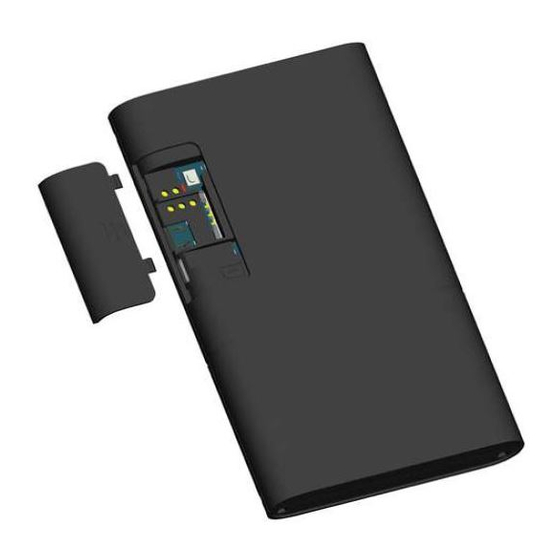

Ⅲ. SIM Card Installation Open the back door case, check if device is OK and accessories are intact Open device cover Insert SIM Card... -
Page 8: Ⅳ. Test & Installation
Note: ●Please power off device before installing or uninstalling SIM card. ●Open SIM’s traffic transmission to send data. ●If the PIN code of SIM card enable, please use your mobile phone to disable the PIN code. ●Please make sure SIM card has sufficient balance. -
Page 9: Install Device
Fast blinking Searching GPS Satellites Slow blinking GPS works normally 4.3 Install Device Close device door, Stick Velcro to bottom of GPT46 and instill it. Ⅴ. Setting & Inquiry 5.1 Web Platform & APP 5.1.1 Web Browser platform Login the service platform to set or track device, ask your dealer for the WWW address 5.1.2 Smart phone application... -
Page 10: Sms
5.2 SMS You can write a positioning SMS sending to device to inquiry position, device will reply position SMS or map link once it wake up. You also can set administrator number to get remove alarm. The SMS commands please refer to the Operation Commands. -
Page 11: No Positioned
check them, you can check SIM card following next steps: 1） call SIM card of device and check if you can hear connecting ring. 2）Check if vehicle is in the area where there is no GSM or LTE CAT M1/NB2 signal. 3）Check if one device or all devices are offline in the area . -
Page 12: Position Drift
may be weakened if device is installed in the place with electromagnetic wave absorption material(such as metal blocks), special attention should be paid if there is metal thermal insulation layer or heating layer on the front windshield, so that the position accuracy will decline, and the severe ones will not be positioned. -
Page 13: Warranty Period
3）Warranty card is only valid for devices with the following IMEI. 4）Please take care of the warranty card and show it with the original purchase receipts when enjoying the warranty service. 7.2 Warranty period Since the date of purchase, passive waste host has one year warranty.
