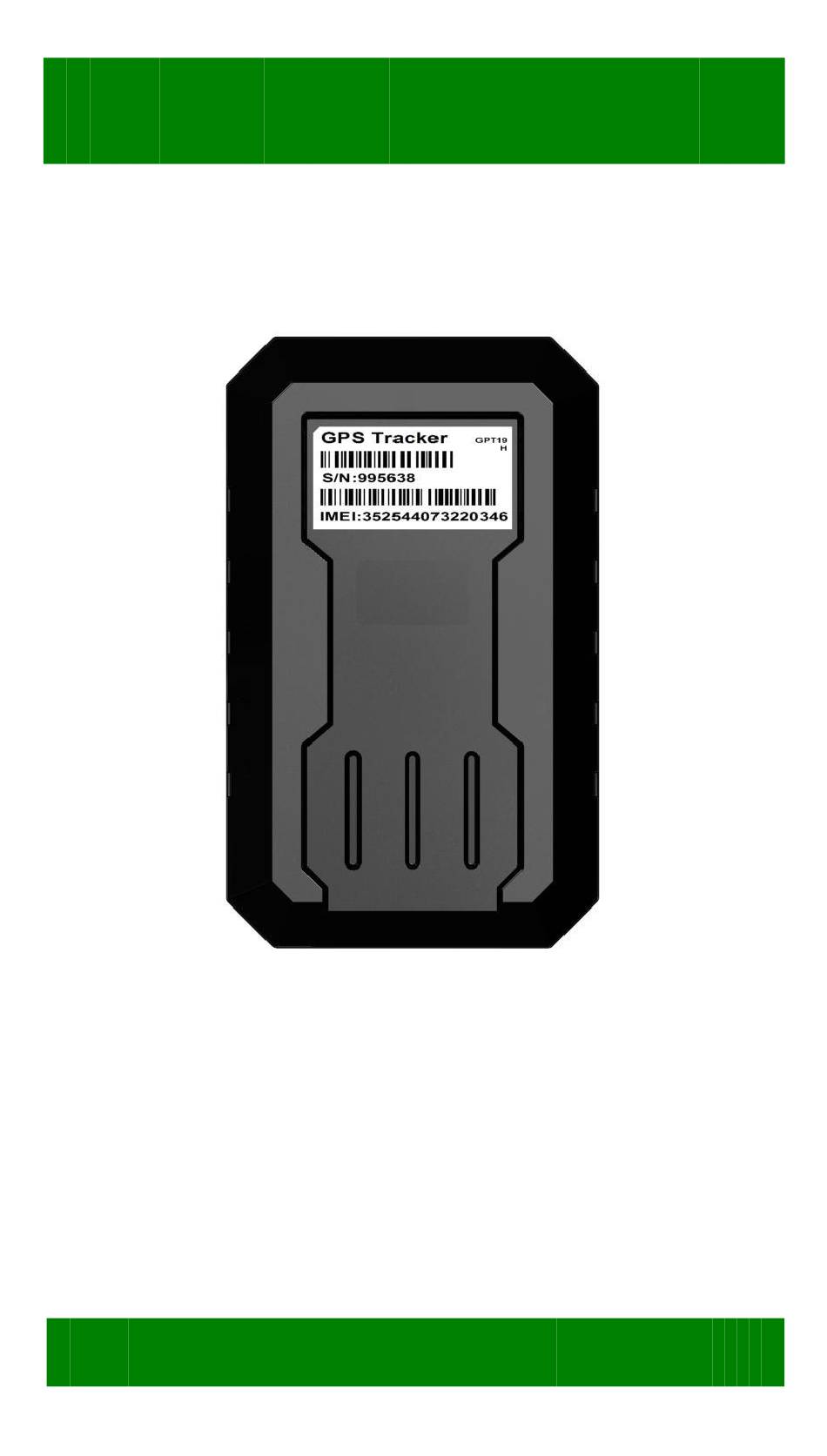

Page 1: User Manual
3G GPS TRACKER For ASSET MODEL: GPT19-H User Manual <GPS+WCDMA/GPRS/GSM+SMS+MEGNETIC> Professional Tracking System... -
Page 2: Table Of Contents
CATLOG Ⅰ. Product Features......4 Ⅱ. Appearance ........6 Ⅲ. SIM Card Installation....7 Ⅳ. Test & Installation......8 4.1 Power On.........8 4.2 LED Indicators......9 4.3 Install device......10 4.4 Power off....... 11 Ⅴ. Setting & Inquiry......11 5.1 Web Platform & APP.... 11 5.2 SMS........15 Ⅵ. - Page 3 If some contents and operation steps are inconsistent with those for the actual product, the latter will prevail. With GPT19-H GPS Tracker for Vehicle, we can monitor your vehicle by GPS satellite positioning system, WCDMA/GPRS communication and Internet, a real-time remote location and control of vehicles can be achieved through a powerful service platform.
-
Page 4: Ⅰ. Product Features
■ Start Emergency mode, device will start real-time tracking and uploaded data through WCDMA/GPRS regularly ■ Device Module passed PTCRB, GCF, FCC,IC, R&TTE, RCM, CCC, Giteki, Anatel, AT&T etc ■ Track device through WEB/APP/SMS ■ EELINK protocol 2.0, Firmware OTA... -
Page 5: Basic Specifications
Basic Specifications Voltage 3.6 V Work Current GPRS(140mA); HSPA(460mA) Sleep Current <30uA GPS Accuracy 5-15m About 100m (depend base LBS Accuracy station density) GPS Band 1575MHz GSM Band 850/900/1800/1900MHz WCDMA Band W800/W850/W900/W1900/W2100MHz Waterproof Level IP67 -20℃~70℃ Working Temperature <3s，<15s，<60s Hot/warm/cold Start Battery Capacity 4200mAh Dimensions (mm) -
Page 6: Ⅱ. Appearance
Ⅱ. Appearance ■ Components -Top Front- (Towards sky) Megnet Light sensor -Bottom -... -
Page 7: Ⅲ. Sim Card Installation
Ⅲ. SIM Card Installation Open the packing case, check if device is OK and accessories are intact. You need a suitable SIM card for using device, contact your dealer if any question; Open Back Cover Lift SIM Slot and insert SIM Card Note:... -
Page 8: Ⅳ. Test & Installation
●Please power off device before installing or uninstalling SIM card. ●SIM card should have GPRS/WCDMA function, open it’s network through operator. ●SIM card should open Caller Identification function for telephone querying. ●Please make sure the PIN code of the SIM card is disabled. -
Page 9: Led Indicators
Turn on the light sensor, it will start Light Alarm, Turn off the light sensor to close this Alarm. Power on device and move device to outdoors to make sure GPS signal is good. 4.2 LED Indicators The RED LED flickers fast (every second) when device is searching for GSM network, it flickers Slowly(every 5 seconds) means device has registered the GSM network successfully. -
Page 10: Install Device
RED LED (GSM / WCDMA Working State) Fast blinking Searching for GSM/WCDMA Slow blinking GSM/WCDMA works normally BLUE LED (GPS Working State) Fast blinking Searching GPS Satellites Slow blinking GPS works normally BLUE & RED flickers slowly (every 5 seconds), device works normally. -
Page 11: Power Off
4.4 Power off Turn off the power switch, device shut down. Ⅴ. Setting & Inquiry 5.1 Web Platform & APP 5.1.1 Web Browser platform Login the service platform to set or track device, ask your dealer for the WWW address 5.1.2 Smart phone application Use smart phone APP, ask your dealer to get installation package. - Page 14 此入插入 GPT19 的 APP 内部界面图 和讲解...
-
Page 15: Sms
5.2 SMS You can write a positioning SMS sending to device to inquiry position, device will reply position SMS or map link once it wake up. You also can set administrator number to get remove alarm. The SMS commands please refer to the Operation Commands. -
Page 16: No Positioned
check them, you can check SIM card following next steps: 1） call SIM card of device and check if you can hear connecting ring. 2）Check if vehicle is in the area where there is no GSM/WCDMA signal. 3）Check if one device or all devices are offline in the area . -
Page 17: Position Drift
weakened if device is installed in the place with electromagnetic wave absorption material(such as metal blocks), special attention should be paid if there is metal thermal insulation layer or heating layer on the front windshield, so that the position accuracy will decline, and the severe ones will not be positioned. -
Page 18: Warranty Period
3）Warranty card is only valid for devices with the following IMEI. 4）Please take care of the warranty card and show it with the original purchase receipts when enjoying the warranty service. 7.2 Warranty period Since the date of purchase, passive waste host has one year warranty. -
Page 19: Warranty Card
Warranty Card NAME Address Model IMEI Number Selling Unit Purchase Date...
