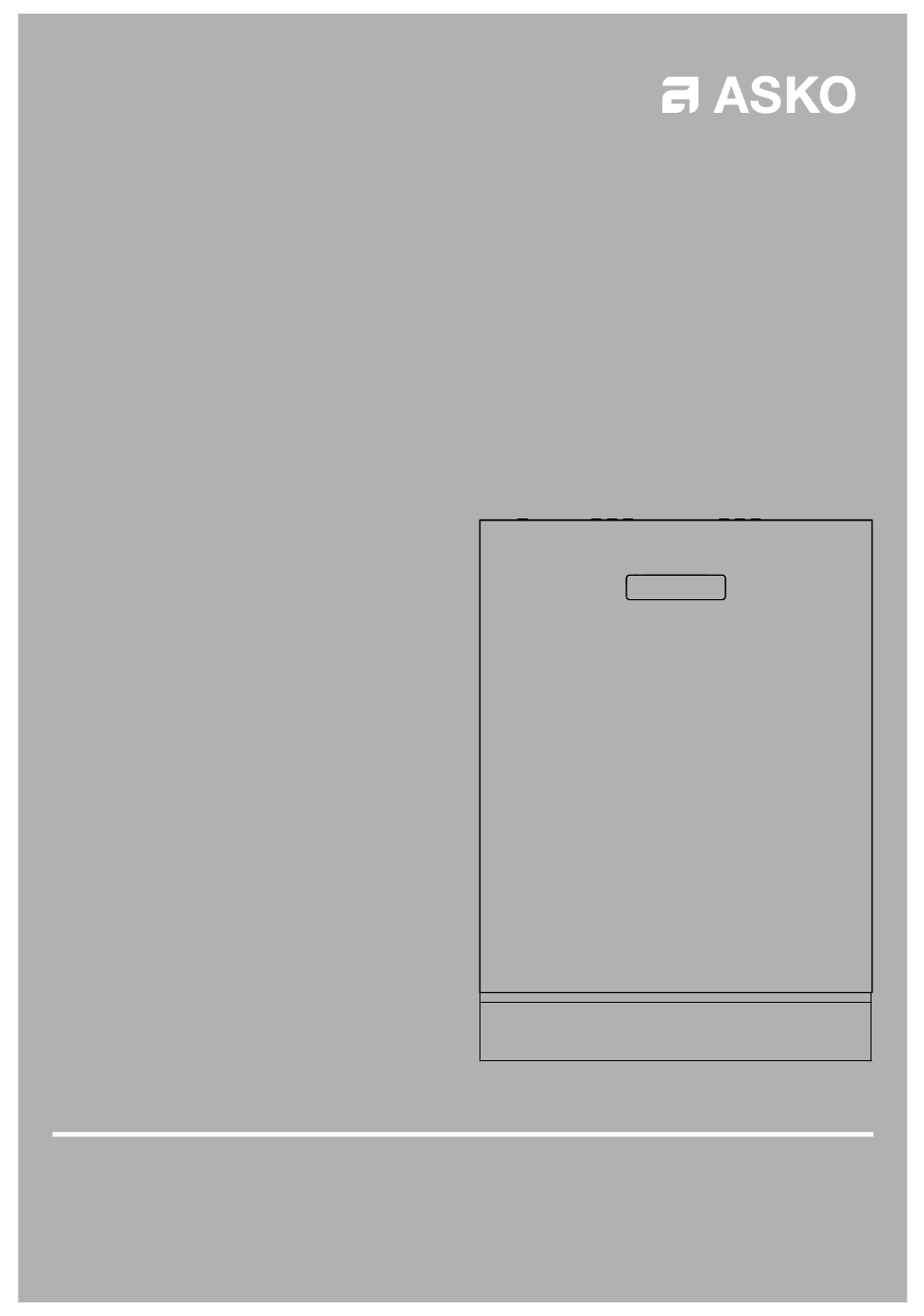

- Page 1 OPERATING INSTRUCTIONS Dishwasher DBI654IBXXL...
-
Page 2: Table Of Contents
Open the door and press the main power switch. "Welcome to your new ASKO. This is a first time set up." is shown on the display the first time the dishwasher is switched on. It is important that you choose the right settings to ensure good dishwashing results. See page 4. -
Page 3: Safety Instructions
Safety instructions Read the operating instructions and keep WARNING! them in a safe place! Knives and other pointed items must be placed Number of place settings: 15 with the points down in the cutlery basket or Never use the dishwasher for any purpose horizontally in other baskets. -
Page 4: Before Washing For The First Time
Open the door and press the main power switch. This is important with regard to how much detergent and rinse aid to "Welcome to your new ASKO. This is a first time set up." is shown use. on the display. It is important that you choose the right settings to ensure good dishwashing results. -
Page 5: Loading The Dishwasher
Loading the dishwasher Greener dishwashing Fragile dishes Do not rinse under running water Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand strong heat, others can be damaged Simply scrape off large food particles before loading the dishwasher. by dishwashing detergent. - Page 6 glasses are placed on the wine glass shelf and knives are placed in The dishwasher's baskets the knife stand on the right. The dishwasher is equipped with a top cutlery tray, an upper basket and a lower basket with a cutlery basket. The appearance of the baskets may differ depending on the dishwasher setup.
- Page 7 The wine glass shelf is placed in the rear section of the lower basket. This accessory can be purchased by calling ASKO. Cutlery basket Place cutlery with the handles facing down, except for knives, and spread them out as much as possible.
-
Page 8: Using The Dishwasher
Using the dishwasher Add detergent NOTE! Use only dishwasher detergent! Washing up liquid must not be used Press to open as the foam that forms prevents the dishwasher from operating effectively. Dishwasher tablets Halve the tablet if it is difficult to close the dispenser lid. There is a risk that the detergent will not be released properly if the lid is tight and will not open correctly. - Page 9 Open the door and press the main power switch. Starting the dishwasher START STOP 2:00 Speed mode Select the program Select a program mode Select any options Crystal glass The main power switch A gentle dishwashing program with a low temperature for washing fragile items made of crystal/glass, such as crystal glass from Orrefors.
- Page 10 Night mode detergent if the lid of the detergent dispenser has opened. Then choose a new program, press Start/Stop and close the door. Lower noise level during the dishwashing program. The program time is extended. If you want to load more dishes Intensive mode Improves the dishwashing results, but the dishwasher uses more energy Open the door.
-
Page 12: Settings
Settings Open the dishwasher's Settings menu To open the dishwasher's Settings menu, press the Navigation button until Settings menu is shown on the display and confirm your selection using the mode selector To exit the dishwasher's Settings menu, select Exit and confirm your selection using the mode selector Navigation buttons for choosing setting Mode selector to confirm current setting START... - Page 13 Settings Options Super rinse On/Off Super rinse adds two extra rinses. Activated in the following programs: Heavy wash ECO wash Sanitation wash Plastic wash Lower half wash Upper half wash High temperature On/Off Activate the setting High temperature to improve the dishwashing results.
-
Page 14: Care And Cleaning
Care and cleaning NOTE! Top up rinse aid When the rinse aid needs topping up, the above symbol lights on the Dishwashing results may be display. affected if the filters are incorrectly fitted. Note that the dishwasher Press to open must not be used without the filters in place. - Page 15 3. Scoop out the water from the dishwasher tub. 4. In order to inspect the drainage pump, remove the coloured stop on the right in the bottom drain. 5. Turn the pump wheel located behind the drainage pump stop by hand.
-
Page 16: Troubleshooting
Troubleshooting Type of fault on the display Action Overfilling water 1 Clear the drainage pump. See the chapter Care and cleaning. If the problem persists, call the service department. Water outlet fault See “Water remains in the dishwasher” in the table “Problem” below. If the problem persists, call the service department. - Page 17 Problem Possible causes Action The dishes are not clean. The spray arms do not rotate. Check that the dishes are not blocking the spray arms. Spray arm holes or bearings blocked. Clean the spray arms. See Chapter Care and cleaning. Unsuitable dishwashing program.
- Page 18 Problem Possible causes Action Bad odour in dishwasher. Dirt around the seals and in corners. Clean with washing-up brush and low foaming cleaner. Low temperature programs have been selected Run a program with a higher temperature once for a prolonged period. or twice a month.
-
Page 19: Technical Information
Technical information Information on energy labelling Energy labelling Australian standard: AS/NZS 2007 Number of place settings: Dishwashing programs: ECO wash , no options Program time: 2:49 hours:minutes Connection: Cold water 20 °C Test method for noise measurement: IEC 60704-2-3 This dishwashing program is the standard cleaning cycle used to compile the energy labelling information. It is intended for washing normally dirty dishes and is the most effective program in terms of combined energy and water consumption. -
Page 20: Installation
Installation [mm] 1238 30-94 *Remove locking nuts for an installed height of 860-861 mm. Nominal dimensions. Actual measurements may vary. Safety instructions Transport protection for the door Connections to electricity, water and drainage must be performed Do not forget to remove the transport protection for the door when by a qualified professional. - Page 21 If the dishwasher is built-in the surrounding cabinetry must be resistant Adjust the height and slide the to any condensation from the dishwasher. dishwasher into place B. Freestanding 1. Start by measuring the height from the floor to the bottom edge of A freestanding dishwasher must be fitted with anti-tip brackets.
- Page 22 Connection to hot water supply Drainage connection Connect the dishwasher to the hot water supply (max. 70 °C) if the This dishwasher is suitable for installing in a raised recess (to attain building is heated using an energy-efficient means such as district an ergonomic working height).
- Page 23 Screwing the dishwasher into place Dishwasher kick panel (Applicable only to built-in dishwashers.) The dishwasher is supplied with a kick panel. After fastening the machine, check that the front feet still touch the Install the sound insulation floor. (only certain models) Screw the dishwasher into place with two extra screws If there is an air gap of more than 3 mm between the underside of the worktop and the top of the dishwasher, the dishwasher should be...
-
Page 24: Asko Service
Read the chapter Troubleshooting before contacting the service department. If you have encountered a problem that you cannot resolve, please contact your nearest dealer, see www.asko.com. When making contact, provide the details on the serial number plate. Include the article number (1) and the serial number (2). -
Page 25: Your Notes
Your notes... - Page 26 Your notes...
- Page 27 Your notes...
-
Page 28: Quick Guide
Use rinse aid to achieve good washing and drying results. (See page 4.) Refill rinse aid indicator. Select a program, a program mode and any options (See page 9.) Press Start/Stop, close the door START STOP ASKO APPLIANCES SOCKERBRUKSGATAN 3, SE-531 40 LIDKÖPING, SWEDEN WWW.ASKO.COM...
