OPERATING INSTRUCTIONS
DBI654IB.S.AU
Dishwasher
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DBI654IB.S.AU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Asko DBI654IB.S.AU

Summary of Contents for Asko DBI654IB.S.AU

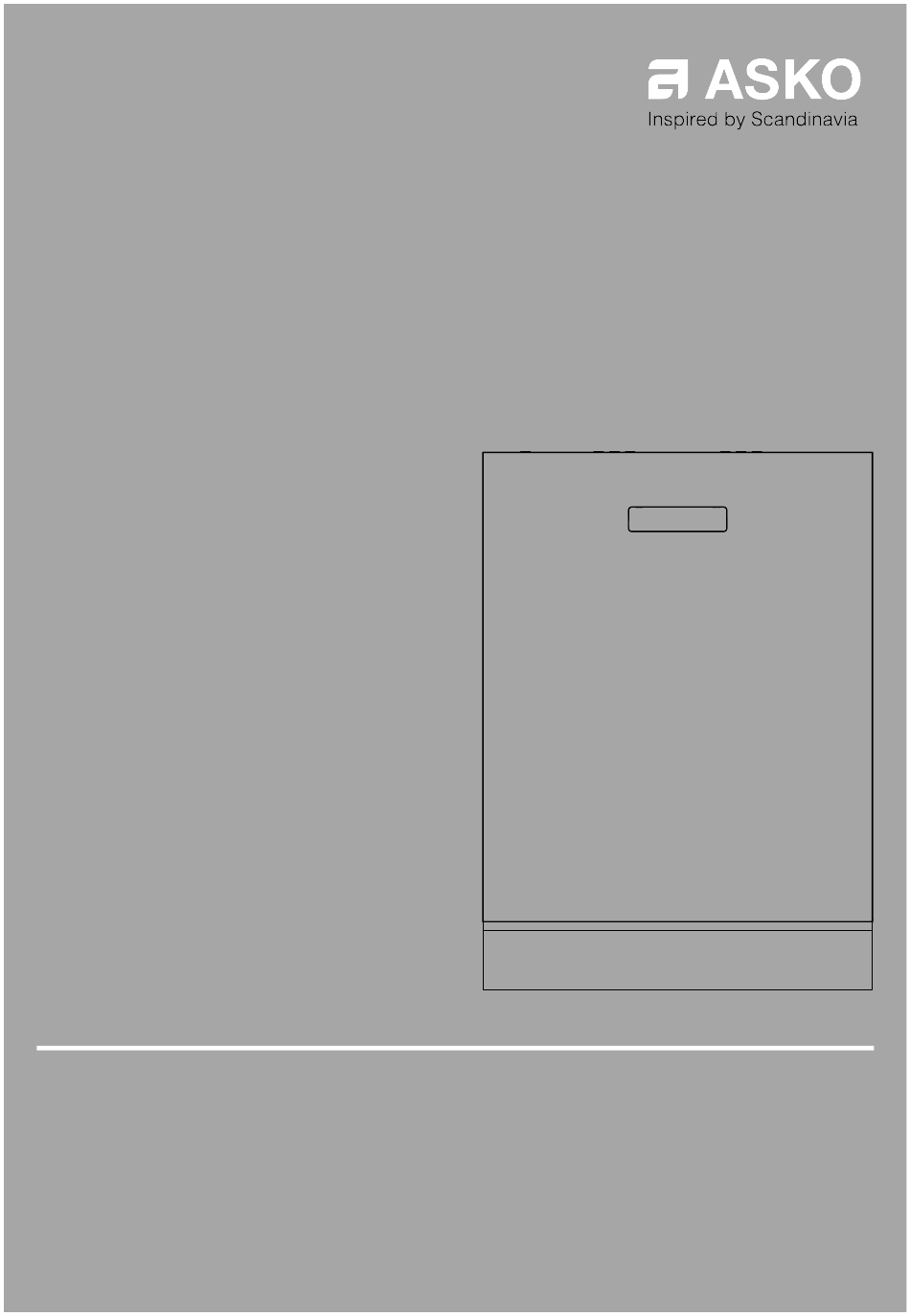

  • Page 1 OPERATING INSTRUCTIONS DBI654IB.S.AU Dishwasher...

  • Page 2: Table Of Contents

    Contents Your dishwasher ........If the dishwasher is turned off due to a power Welcome to our growing ASKO family! ..failure ............Safety instructions ........Once the program has finished ....Activate child lock (Kid Safe ) ....How to get the best drying results ....

  • Page 3: Your Dishwasher

    "Welcome to your new ASKO. This is a first time set up." is shown on the display the first time the dishwasher is switched on. It is important that you choose the right settings to ensure good...

  • Page 4: Safety Instructions

    Safety instructions • Read the operating instructions and keep them in a safe place! • Number of place settings: 15 • Never use the dishwasher for any purpose other than that specified in these operating instructions. • Do not load the dishwasher door or dishwasher baskets with anything other than dishes.

  • Page 5: Activate Child Lock (Kid Safe )

    Safety instructions Some detergent may remain inside! After adding detergent, always start the dishwasher immediately. WARNING! Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets. WARNING! Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed.

  • Page 6: Disposal

    Safety instructions • Protective plastic made from polyethylene (PE). Disposal The dishwasher is manufactured and labelled for recycling. When the dishwasher has reached the end of its service life and is to be disposed of, it should immediately be made unusable. Pull out the power cable and cut it as short as possible. Contact your local authority for information about where and how your dishwasher should be correctly recycled.

  • Page 7: Before Washing For The First Time

    Open the door and press the main power switch. "Welcome to your new ASKO. This is a first time set up." is shown on the display. It is important that you choose the right settings to ensure good dishwashing results.
  • Page 8 Before washing for the first time Table continued from last page Top up rinse aid 1. Open the rinse aid compartment lid. 2. Carefully top up with rinse aid to the level marked max. 3. Wipe up any splashes of rinse aid around the compartment. 4.

  • Page 9: Greener Dishwashing

    Greener dishwashing The dishwasher saves energy and water When using a dishwasher in a residential setting, less energy and water are generally used compared to washing the dishes by hand. Do not rinse under running water Do not rinse the dishes under running water as this will lead to increased energy and water consumption.

  • Page 10: Loading The Dishwasher

    Loading the dishwasher Fragile dishes Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand strong heat, others can be damaged by dishwashing detergent. Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver, copper, tin, aluminium, wood and plastic.

  • Page 11: Top Cutlery Tray

    Loading the dishwasher Top cutlery tray The top cutlery tray has space for cutlery, ladles, whisks, serving cutlery and similar items. Raising the top cutlery tray 1. Pull out the top cutlery tray. 2. Pull the two locking handles on either side forward to raise the top cutlery tray. Lowering the top cutlery tray 1.

  • Page 12: Upper Basket

    Loading the dishwasher Upper basket Place glasses, cups, bowls, side plates and saucers in the upper basket. All dirty surfaces should face inwards and downwards! Wine glasses are placed on the wine glass shelf and knives are placed in the knife stand on the right. Raising the upper basket 1.

  • Page 13: Lower Basket

    Loading the dishwasher Lower basket Place plates, side plates, serving dishes, pots and cutlery (in the cutlery basket) in the lower basket. Place pots and pans in the rear right part of the lower basket to achieve the best dishwashing results from the rear of the two spray nozzles (WideSpray ), which are intended for these types of dishes.

  • Page 14: Cutlery Basket

    The wine glass shelf is designed to ensure optimal washing and drying results with tall wine glasses. The wine glass shelf is placed in the rear section of the lower basket. This accessory can be purchased by calling ASKO. Cutlery basket Place cutlery with the handles facing down, except for knives, and spread them out as much as possible.
  • Page 15 Loading the dishwasher Accessory Buy an extra cutlery basket. The extra cutlery basket is flexible and can be dismantled and attached to the lower basket or the large cutlery basket to make an extra large cutlery basket. This accessory is available where you purchased your dishwasher.

  • Page 16: Using The Dishwasher

    Using the dishwasher Add detergent Press to open 1. Prewash detergent compartment 2. Main wash detergent compartment Detergent is added according to water hardness. Follow the instructions on the detergent packaging. Too much detergent can result in less effective dishwashing and also entails greater environmental impact.

  • Page 17: The Main Power Switch

    Using the dishwasher Open the door and press the main power switch. Starting the dishwasher Select program Select program mode Select any options The main power switch Open the door and press the main power switch. Also turn on the water tap if it is turned off. Select program Select a program to suit the type of dishes and how dirty they are.

  • Page 18: Select Program Mode

    Using the dishwasher Plastic A program intended for washing plastic items that are dishwasher safe. This program has an extra long drying cycle. Porcelain and glasses can also be washed. Hygiene This program is designed to meet strict hygiene demands. Crystal glass A gentle dishwashing program with a low temperature for washing fragile items made of crystal/glass, such as crystal glass from Orrefors.

  • Page 19: Select Option

    Using the dishwasher Intensive mode The higher temperature dissolves grease on very dirty dishes, but the dishwasher consumes more energy and water. The program time is extended. Select option To select an option, press the option button until the desired option is shown on the display. The available options vary between programs.

  • Page 20: Status Light

    Using the dishwasher Status light The status light at the bottom of the dishwasher provides information by means of 3 different colours. Status light Blue - Load more The program has started, but you can still load more dishes. Red - Do not load You should not load any more dishes (risk of poorer dishwashing result).

  • Page 21: How To Get The Best Drying Results

    Using the dishwasher The dishwasher switches off automatically after the program ends. Turn off the water tap after each use. How to get the best drying results • Fully load the dishwasher. • Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important for plastic items.

  • Page 22: Program Chart

    Using the dishwasher...

  • Page 23: Settings

    Settings Open the dishwasher's Settings menu To open the dishwasher's Settings menu, press the Navigation button until Settings menu is shown on the display and confirm your selection using the mode selector To exit the dishwasher's Settings menu, select Exit and confirm your selection using the mode selector Navigation buttons for choosing setting Mode selector to confirm current setting Setting...
  • Page 24 Settings Table continued from last page Settings Options Display settings Contrast top For adjusting the contrast of the display. display1/2/3/4 Logo in top display On/Off Setting to hide the logo shown on the display. Feedback sound 0/1/2/3 This sound is used to confirm each button press.

  • Page 25: Care And Cleaning

    Care and cleaning Top up rinse aid When the rinse aid needs topping up, the above symbol lights on the display. Press to open 1. Open the rinse aid compartment lid. 2. Carefully top up with rinse aid to the level marked max. 3.
  • Page 26 Care and cleaning Fine filter Debris that collects on the fine filter is automatically rinsed away during each wash. Clean the fine filter when necessary. It should be cleaned at regular intervals depending on how often the dishwasher is used. Fine filter 1.

  • Page 27: Cleaning The Spray Arms

    Care and cleaning Cleaning the spray arms Holes and bearings can sometimes become blocked. Remove any debris using a pin or something similar. The spray arms also have holes on their undersides. To facilitate cleaning, you can remove the spray arms. Remember to fit them firmly back into place after cleaning.

  • Page 28: Clean The Dishwasher Inside And Out

    Care and cleaning Lower spray arm • Pull the lower spray arm straight up to release it. Clean the dishwasher inside and out Door and door seal Open the door. Clean the sides of the door and the door seal regularly with a slightly damp cloth. Clean the door seal at the lower front edge of the dishwasher with a washing-up brush.
  • Page 29 Care and cleaning • Shut off the water. • Remove the plug from the wall socket. • Call the service department. Drainage pump stop NOTE! Do not forget to refit the drainage pump stop. Unblocking the inlet hose filter If the water supply contains small particles, the outer filter on the inlet hose may become blocked, which results in Water inlet fault.

  • Page 30: Troubleshooting

    Troubleshooting Type of fault on the display Action Overfilling water 1 Clear the drainage pump. See the chapter Care and cleaning. If the problem persists, call the service department. Water outlet fault See “Water remains in the dishwasher” in the table “Problem” below.
  • Page 31 Troubleshooting Table continued from last page Problem Possible causes Action Cannot close door. The baskets are not correctly Check that the baskets are positioned. correctly positioned horizontally. Check that the dishes are not blocking the baskets from sliding properly into place. The dishwasher does not start.
  • Page 32 Troubleshooting Table continued from last page Problem Possible causes Action The dishes are not clean. The spray arms do not rotate. Check that the dishes are not blocking the spray arms. Spray arm holes or bearings Clean the spray arms. See blocked.
  • Page 33 Troubleshooting Table continued from last page Problem Possible causes Action The dishes have a sticky Rinse aid dosage setting too Reduce the dosage. See the white/blue film. high. chapter Settings. If you have very soft water, you may want to dilute the rinse aid 50:50 with water.
  • Page 34 Troubleshooting Table continued from last page Problem Possible causes Action Grease deposits in the Low temperature programs have Select a program with Intensive dishwasher. been selected for a prolonged mode. The program will use a period. higher temperature to dissolve grease on very dirty dishes.

  • Page 35: Installation

    Installation [mm] *Remove the locking nuts when installing in a recess measuring 820-821 mm. Nominal dimensions. Actual measurements may vary. Safety instructions • Connections to electricity, water and drainage must be performed by a qualified professional. • Always follow applicable regulations for water, drainage and electricity. •...

  • Page 36: Transport Protection For The Door

    Installation Transport protection for the door Do not forget to remove the transport protection for the door when unpacking the dishwasher. Placing the dishwasher The dishwasher can be installed built-in, completely freestanding or partially built-in. Make sure the area on which the dishwasher is to be installed is firm. A.

  • Page 37: Affix The Protective Film

    Installation WARNING! A completely freestanding dishwasher must be fitted with anti-tip brackets. C. Partially built-in If the dishwasher is located so that one of its sides is visible, a side panel must be fitted. Accessories can be purchased where you bought the dishwasher. Affix the protective film Affix the protective film (packed in the document bag).

  • Page 38: Drainage Connection

    Installation 4. Adjust the front feet by turning them clockwise to raise and anticlockwise to lower the dishwasher. 16 mm 24 mm 5. Check that there is an air gap of at least 3 mm between the underside of the worktop and the top edge of the dishwasher.

  • Page 39: Connection To Water Supply

    Installation with an integrated anti-siphon device to prevent the machine from being emptied of water during the wash cycle. min. 14 mm Max. 950 mm The drainage hose can also be connected to a connection nipple on the sink unit’s water trap. The connection nipple must have an internal diameter of at least 14 mm.

  • Page 40: Electrical Connection

    Installation Once the installation is complete, turn on the water tap and allow the pressure to settle for a while. Check that all connections are watertight. Connection to cold water supply Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas. Connection to hot water supply Connect the dishwasher to the hot water supply (max.
  • Page 41 Installation After fastening the machine, check that the front feet still touch the floor. Screw the dishwasher into place with two extra screws If there is an air gap of more than 3 mm between the underside of the worktop and the top of the dishwasher, the dishwasher should be screwed into place with two extra screws.

  • Page 42: Dishwasher Kick Panel

    Installation Dishwasher kick panel The dishwasher is supplied with a kick panel. Install the sound insulation (only certain models) Fit the sound insulation (1-3 pieces, depending on plinth depth). Install the kick panel...

  • Page 43: Asko Service

    ASKO Service Information about your product There is a QR code on the compliance plate. Scan the code to view information about your product. Contact the service department Read the chapter Troubleshooting before contacting the service centre. If you have encountered a problem that you cannot resolve, please contact your nearest service centre for professional help.

  • Page 44: Technical Information

    Technical information Information on energy labelling Energy labelling Australian standard: AS/NZS 2007 Number of place settings: Dishwashing programs: , no options Program time: 2:49 hours:minutes Connection: Cold water 20 °C Test method for noise measurement: IEC 60704-2-3 This dishwashing program is the standard cleaning cycle used to compile the energy labelling information. It is intended for washing normally dirty dishes and is the most effective program in terms of combined energy and water consumption.
  • Page 45 ASKO APPLIANCES AB • SOCKERBRUKSGATAN 3, SE-531 40 LIDKÖPING, SWEDEN • WWW.ASKO.COM 846227 We reserve the right to make changes.
