Summary of Contents for PRO SIGNAL PSG3445

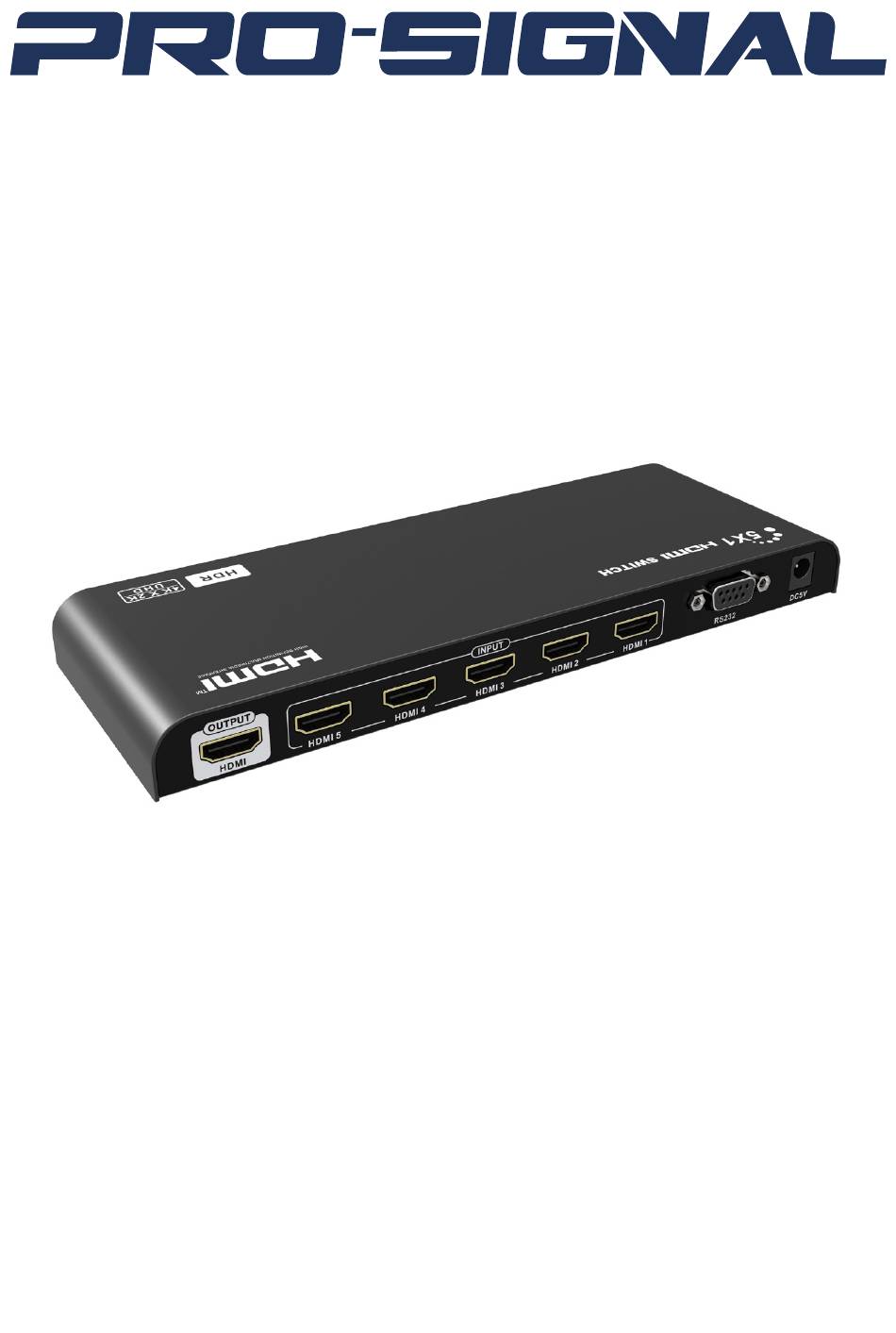

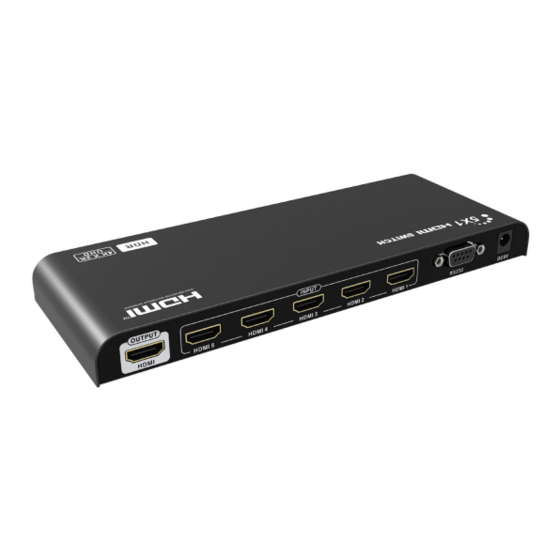

- Page 1 5x1 4Kx2K HDMI SWITCH PSG3445...
- Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •...
- Page 3 Front Panel Remote Control Power button - switches the device on or off. 1 - 5 buttons directly select the relevant input channel. < or > buttons selects next or last input channel. INSTALLATION • Connect the HDMI inputs to up to five source devices. •...
- Page 4 SPECIFICATIONS Voltage/Current DC 12V 1A Power consumption <5W HDMI compliance HDMI 1.4 / 2.0 HDCP compliance HDCP 1.4 / 2.2 HDMI resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz 4Kx2K @30/60Hz Ultra HD video Audio Supports standard audio and DSD and HD (HBR) Audio Input and output signal 0.7~1.2Vp-p (TMDS) Input and output DDC...
