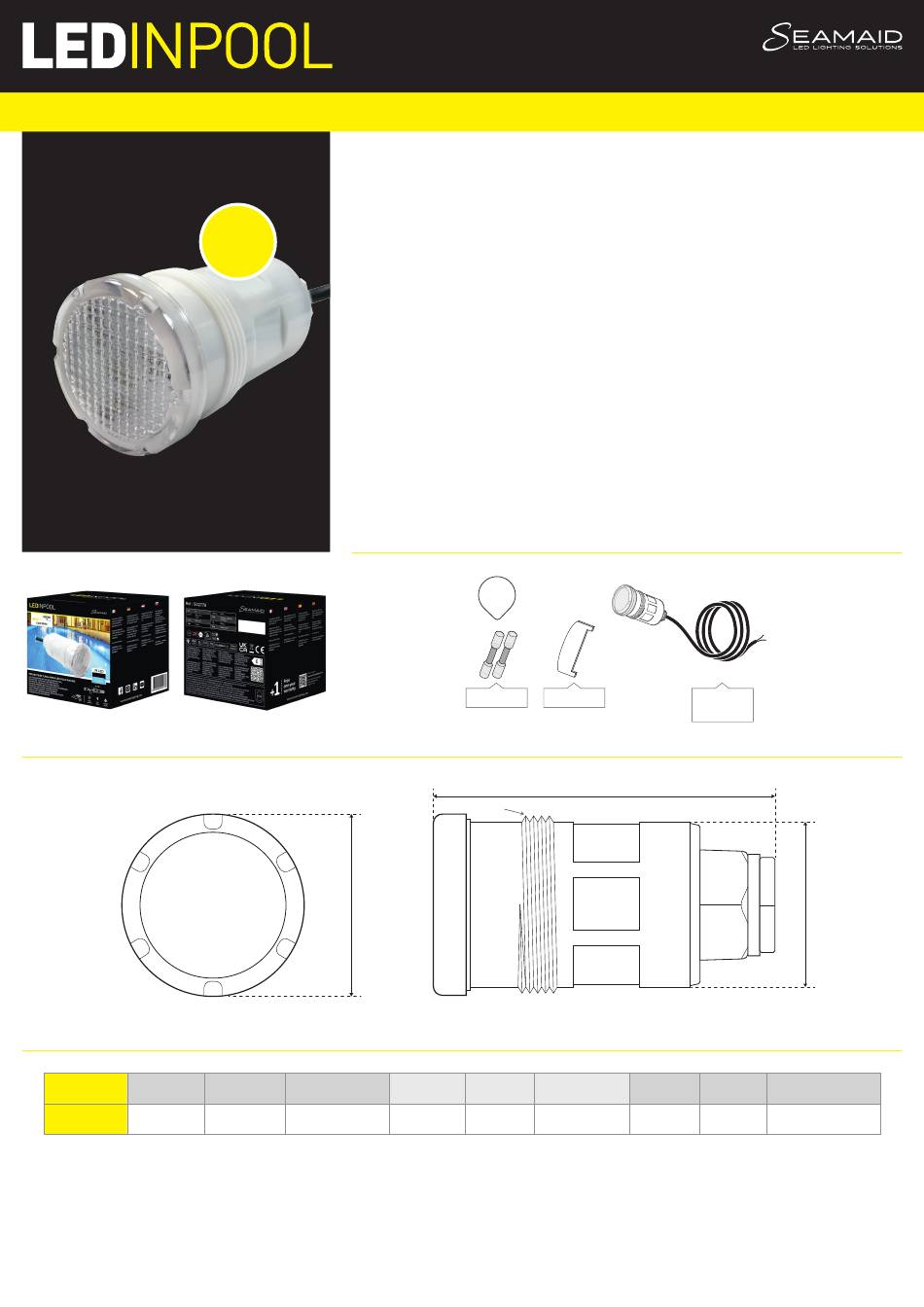

LED TUBULAR PROJECTOR FOR SWIMMING POOL – WHITE LIGHTING

DIMENSIONS

PACKING
Part Number
Box
502778
1U
Model : 502778
Type : 18 LED 2835 / 120°
WHITE
Colour : cold white 6500K
Control : On/Off
Functions : N/A
Material : Polycarbonate (PC)
1,5'' threat to screw in vacuum fitting
Wire connection : None
2 meters HO5RNF wire 2x1,0mm² welded on electronic board
HS code : 9405421000
Bar code : 3700450502778
Option :
- Inground pool installation kit (#501368)
- Above ground pool installation kit (#501009)
- F2''/M2'' extension fitting (#501054)

CONTENTS OF THE PACKAGING

49 mm
Weight
Size
0,45kg
15x15x15cm
SEAMAID_TPLWH18_V21032022 / These data are subject to change without no�ce.
x2
#501696
#502983
⌀1,5''
Carton
Weight
Size
6U
3,4kg
47x32x16cm
www.seamaid-ligh�ng.com
H05RNF
#502990
102 mm
Pallet
Weight
540U
316kg
44 mm
Size
100x120x167cm
