Seamaid 501115 Installation Manual

Seamaid 501115 Installation Manual

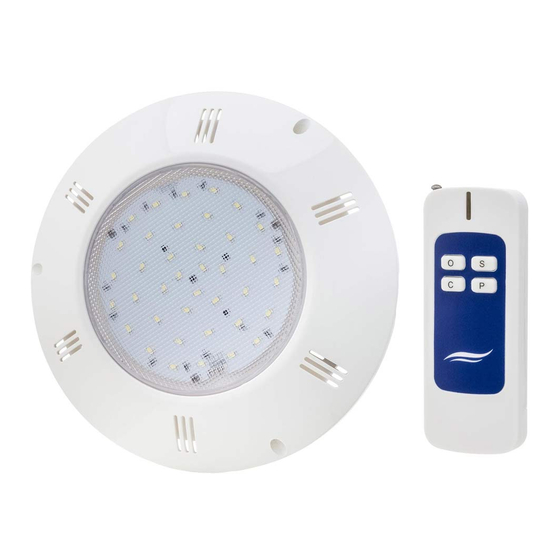

Universal par56 lamp

Advertisement

Quick Links

> Installation guide
You just bought the
PAR56 lamp colour OR white
Follow this guide and the online video for an easy and quick installation.
from the SeaMAID range. Thank you for your trust.
UNIVERSAL
PAR56 LAMP
PAR56WH references
501115 and 501139
PAR56RGB references
500682 and 500736
501399 and 501405

Advertisement

loading
Need help?

Need help?

Do you have a question about the 501115 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Seamaid 501115

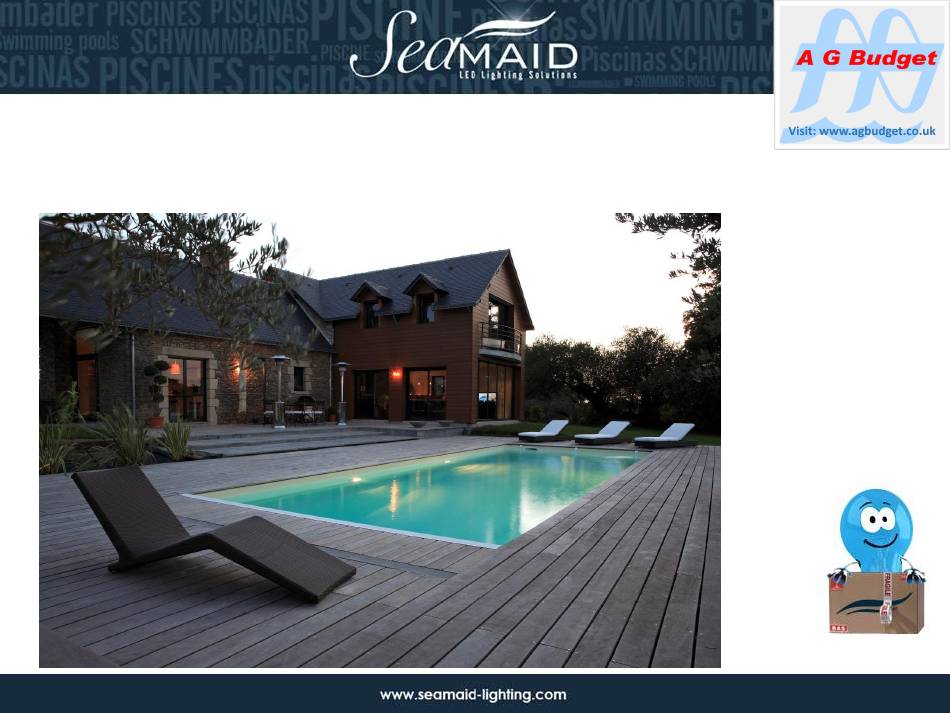

  • Page 1 > Installation guide You just bought the PAR56 lamp colour OR white from the SeaMAID range. Thank you for your trust. Follow this guide and the online video for an easy and quick installation. UNIVERSAL PAR56 LAMP PAR56WH references 501115 and 501139...
  • Page 2  Presentation of the product With its universal size, the SeaMAID PAR56 lamp is installed without any particular work in all niches of the market, replacing the traditional 300VA incandescent lamp. 12 VAC Power PAR56 lamp Screw terminal supply cable...
  • Page 3 > Installation A step by step assistance Recommendations Precaution, for the existing niches, we recommend to change the support and the gasket for a perfect sealing guarantee. Be sure that the lamp(s) are connected with a safety isolating transformer with a power higher by at least 20% to the total power of the installed projectors.
  • Page 4 7. Change the gasket power supply from the safety isolating transformer 8. Install the new SeaMAID lamp taking care of greasing the back cup in contact with the gasket 2. Remove the existing projector from its niche, (silicon grease provided)
  • Page 5 > Use PAR56RGB 500682 and 501405 model, 16 programs with remote controller Manual program including 11 static colours and 5 controlled atmospheres with the provided remote controller. The use of the remote controller requires a positioning face to the lamp at a maximum distance of 10 meters, unfolded antenna.
  • Page 6: Remote Controller

     Remote controller PAR56RGB 500682 and 501405 model Buttons functions : For the first remote controller use, it is necessary to pair it with the O > Off/On projector S > Synchronization C > Colour selection Insert the provided battery in the remote controller; press each P >...
  • Page 7 > Use PAR56RGB 500736 and 501399 model, 16 On/Off programs Manual programs including 11 static colours and 5 controlled atmospheres  The PAR56RGB On/Off lamp control is manual, using the on/off switch of the projector power. A cut of the current of less than 2 seconds makes the program change. After a cut of the current for over 10 seconds, switch on restarts from the last program Recommendations : used.
  • Page 8 > Use PAR56WH 501139 model, 3 intensities with remote controller Manual program including 3 controlled intensity levels with the provided remote controller. >The use of the remote controller requires a positioning face to the lamp at a maximum distance of 10 meters, unfolded antenna.
  • Page 9 > Remote controller PAR56WH 501139 model Buttons functions : For the first remote controller use, it is necessary to pair it with the projector O > Off/On S > Synchronization Insert the provided battery in the remote controller; press each C >...
  • Page 10 > Accessories Find here the compatible and recommended accessories SeaMAID low voltage radio switch: To control 1 to 12 lamps, choose between the 1 and 4 channel module to install on the ~12V projector(s) power supply Recommendations : Discover the...
  • Page 11 > SeaMAID, proof of quality and reliability > Quality: SeaMAID products are developed exclusively by our French R&D team then manufactured in China and marketed after a rigorous quality-control. SeaMAID products range is certified TÜV Rheinland thus proving the safety and quality of the proposed products.

This manual is also suitable for:

501139500682500736501399501405
