SPECIFICATIONS
Output level:
3.0V +2/-2dB(at 1kHz)
Frequency Response: 17Hz to 20kHz +2/-2dB
Separation:
More than 70dB
(at 1kHz, Filter:20kHz LPF)
Distortion:
Less than 0.02%
(at 1kHz, Filter:20kHz LPF)
Power supply voltage: DC13.2V
Negative ground
Current consumption: 0.6A(during playing)
Dimensions(mm):
184(W) x56(H) x197.5(D)
Weight:
1.65kg
COMPONENTS
PN-2538D-A/PN-2538M-A
1
Main unit
2
Lock pin
NOTE
*
Specifications and design are subject to change without
notice for further improvement.
*
We cannot supply PWB with component parts in prin-
ciple.
When a circuit on PWB has failure, please repair it by
component parts base. Parts which are not mentioned
in service manual are not supplied.
To engineers in charge of repair or
inspection of our products.
Before repair or inspection, make sure to follow
the instructions so that customers and Engineers
in charge of repair or inspection can avoid suf-
fering any risk or injury.
Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan
Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703

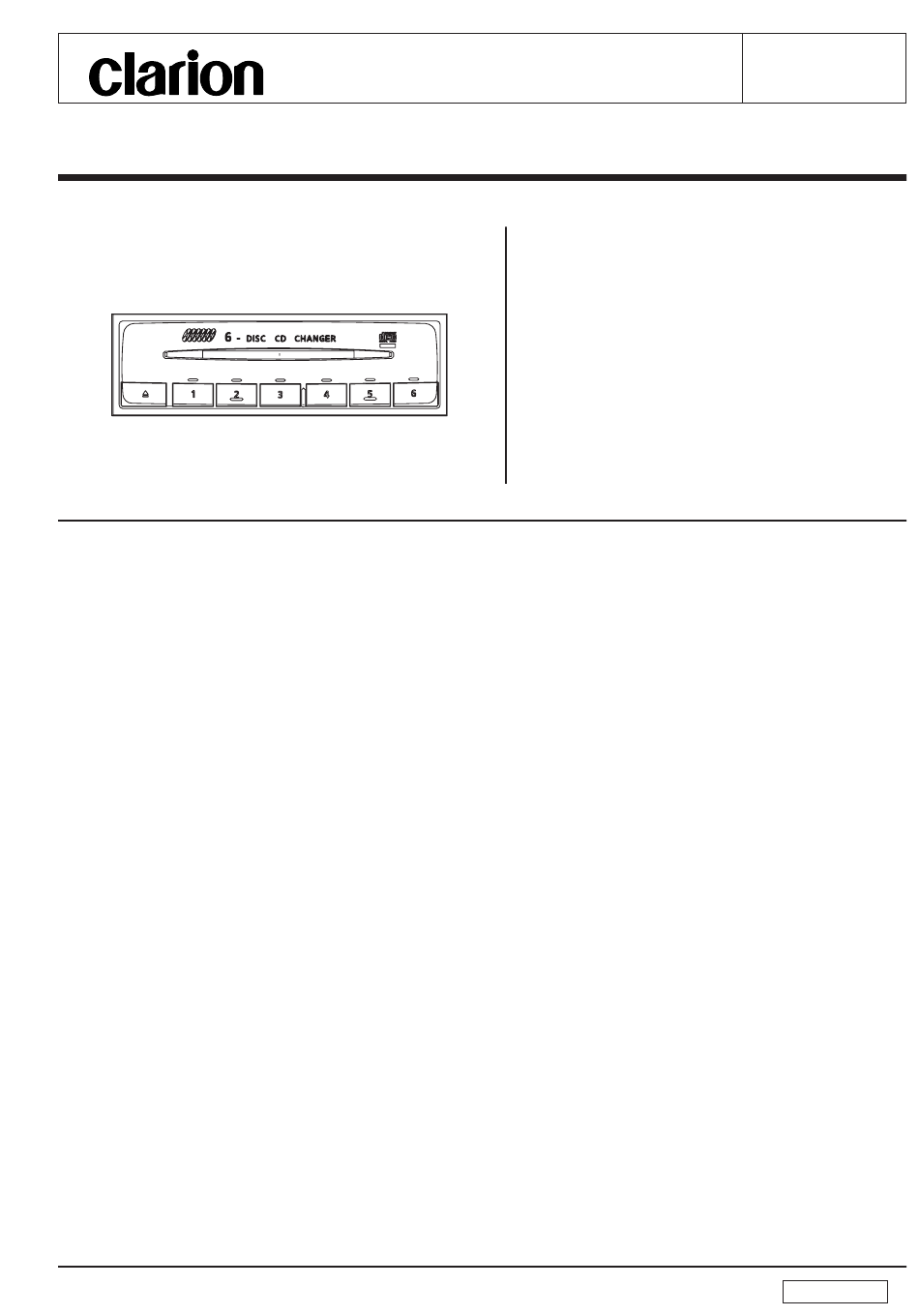

Service Manual
-----------
1
335-6703-00
1
- 1 -
NISSAN Automobile Genuine
6-Disc CD Changer Deck
PN-2538D
Model
(Genuine No.28184 9Y800
/ID No.CE05A)
PN-2538M
Model
(Genuine No.28184 6Z700
/ID No.CE040)
1. Use specified parts.
The system uses parts with special safety features against
fire and voltage. Use only parts with equivalent charac-
teristics when replacing them.
The use of unspecified parts shall be regarded as re-
modeling for which we shall not be liable. The onus of
product liability (PL) shall not be our responsibility in cases
where an accident or failure is as a result of unspecified
parts being used.
2. Place the parts and wiring back in their original positions
after replacement or re-wiring.
For proper circuit construction, use of insulation tubes,
bonding, gaps to PWB, etc, is involved. The wiring con-
nection and routing to the PWB are specially planned
using clamps to keep away from heated and high voltage
parts. Ensure that they are placed back in their original
positions after repair or inspection.
If extended damage is caused due to negligence during
repair, the legal responsibility shall be with the repairing
company.
3. Check for safety after repair.
Check that the screws, parts and wires are put back se-
curely in their original position after repair. Ensure for
safety reasons there is no possibility of secondary
ploblems around the repaired spots.
If extended damage is caused due to negligence of re-
pair, the legal responsibility shall be with the repairing
company.
4. Caution in removal and making wiring connection to the
parts for the automobile.
Disconnect the battery terminal after turning the ignition
key off. If wrong wiring connections are made with the
battery connected, a short circuit and/or fire may occur.
If extensive damage is caused due to negligence of re-
pair, the legal responsibility shall be with the repairing
company.
Published by Service Dept.
298-6073-00 May.2003
Printed in Japan
PN-2538D,M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PN-2538D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Clarion PN-2538D

  • Page 1 Clarion Co., Ltd. Published by Service Dept. 50 Kamitoda, Toda-shi, Saitama 335-8511 Japan 298-6073-00 May.2003 Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan Printed in Japan Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703 Service Manual NISSAN Automobile Genuine 6-Disc CD Changer Deck...
  • Page 2 : IN : Sub Q data input from the CD IC. pin 11: GND : - : Ground. pin 80: NU : - : Not in use. pin 12: X IN : IN : Crystal connection. pin 13: VDD : - : Positive supply voltage. - 2 - PN-2538D,M...
  • Page 3: Block Diagram

    BLOCK DIAGRAM Main/Escutcheon/CD changer module section - 3 - PN-2538D,M...
  • Page 4: Exploded View Parts List

    EXPLODED VIEW/PARTS LIST Main section Note) Some parts depend on each model. The model name is specified in the description. (38D):PN-2538D, (38M):PN-2538M PART NO. DESCRIPTION Q'TY PART NO. DESCRIPTION Q'TY 940-8014-22 ESCUTCHEON ASSY(38D) ----------- CD CHANGER MODULE 940-8014-12 ESCUTCHEON ASSY(38M)
  • Page 5: Electrical Parts List

    305-0315-15 SIDE CASE ELECTRICAL PARTS LIST Note)Some parts depend on each model.The model name is specified in the descripion . (38D;PN-2538D, 38M;PN-2538M ) Note) Several different parts of the same reference number are alternative parts. Main PWB section(B1) One of those parts is used in the set.
  • Page 6 178-1052-78 1 uF 033-2221-15 1/16W 2.2k ohm 033-1031-15 1/16W 10k ohm 168-1042-78 16V 0.1 uF 033-6831-15 1/16W 68k ohm 073-0768-90 TERMIMAL 042-0472-91 16V47 uF 033-5621-15 1/16W 5.6k ohm 060-1527-90 33.8688MHz 042-0636-50 6.3V100 uF 033-1021-15 1/16W 1k ohm - 6 - PN-2538D,M...
  • Page 7 966-0601-21 M-GEAR-P-ASSY 039-1956-00 SENSOR PWB 966-0602-23 DR-LINK-ASSY (WITHOUT COMPONENT) 966-0603-20 MODE-P-ASSY 039-2009-00 PIM FPC 966-0604-22 LOCK-PF-ASSY 039-2010-00 RIV-FOC 966-0605-20 SHIFT-P-ASSY 039-2011-00 LED-FPC 966-0606-23 HLC-PLATE-ASSY 039-2012-00 SENSOR-FPC 966-0607-24 COV-OLATE-ASSY 039-2013-01 MOS-FPC 966-0610-06 TOP-PLATE-ASSY 039-2014-00 L-MOTOR-FPC (WITHOUT COMPONENT) - 7 - PN-2538D,M...
  • Page 8 051-5806-02 IC (GPIS95) 620-1066-20 LOCK LINK-LR 060-0252-01 PHOTO-TR 620-1067-01 SLIDE PLATE-L 347-6657-01 LO-COVER SHEET 620-1068-22 SLIDE PLATE-R 620-1041-23 GEAR PLATE 620-1071-21 EJECT ARM 620-1042-20 M-GEAR-H 620-1072-20 EJECT PLATE 620-1056-01 HLR-PLATE-L 620-1577-00 FRONT PLATE 620-1580-00 HLR-PLATE-R 620-1083-20 FPC-PLATE - 8 - PN-2538D,M...
  • Page 9 716-1873-00 SCREW(M2 x1.6) 750-3489-01 DRIVE-P-SPRING 716-3449-00 SCREW(M2 x3) 750-3496-00 GAP-P-SPRING R 716-3450-00 SCREW(M1.7 x2) 750-3497-00 GAP-P-SPRING L 716-3451-00 SCREW(M1.7 x2.5) 750-6711-01 DU-STP-SPRING 716-3459-00 SCREW(M1.7 x5) 750-6712-01 DR-LOCK-SP-B 716-3466-02 SCREW 621-0651-22 LOAD GEAR-A 738-1422-11 PRECISION SCREW 347-6974-00 FPC COVER - 9 - PN-2538D,M...
  • Page 10 738-2025-17 PRECISION SCREW 039-2016-01 M/S-FPC 716-3474-00 SCREW(M1.7 x 3) 347-6632-00 PU-SHEET 743-1500-20 E-RING 620-1078-20 PUSH PLATE 750-3487-00 SHIFT-P-SPRING 620-1080-21 PU-GUIDE PLATE 750-3504-00 CLAMP-A-SPRING 620-1081-20 SCREW PUSH-PLT 966-0619-24 DRIVE PLT-ASSY 620-1082-22 SPRING PLATE 745-0807-00 WASHER 620-1588-20 SCREW-HOL-PLT 745-0808-00 WASHER - 10 - PN-2538D,M...
  • Page 11: Circuit Diagram

    CIRCUIT DIAGRAM MAIN PWB(B1) section - 11 - PN-2538D,M...
  • Page 12 COMPONENT SIDE - 12 -...
  • Page 13 Caution: SOLDER SIDE COMPONENT SIDE:    Parts on the component side seen   from the component side are indicated.  SOLDER SIDE:   Parts on the solder side seen   from the solder side are indicated. ...
  • Page 14 CIRCUIT DIAGRAM...
  • Page 15 - 15 - PN-2538D,M...
  • Page 16: Printed Wiring Board

    CIRCUIT DIAGRAM PRINTED WIRING BOARD Escutcheon PWB(B2) section Escutcheon PWB(B2) section SOLDER SIDE COMPONENT SIDE Caution: COMPONENT SIDE:    Parts on the component side seen   from the component side are indicated.  SOLDER SIDE:   Parts on the solder side seen   from the solder side are indicated.  - 16 - P N -2538D , M...
