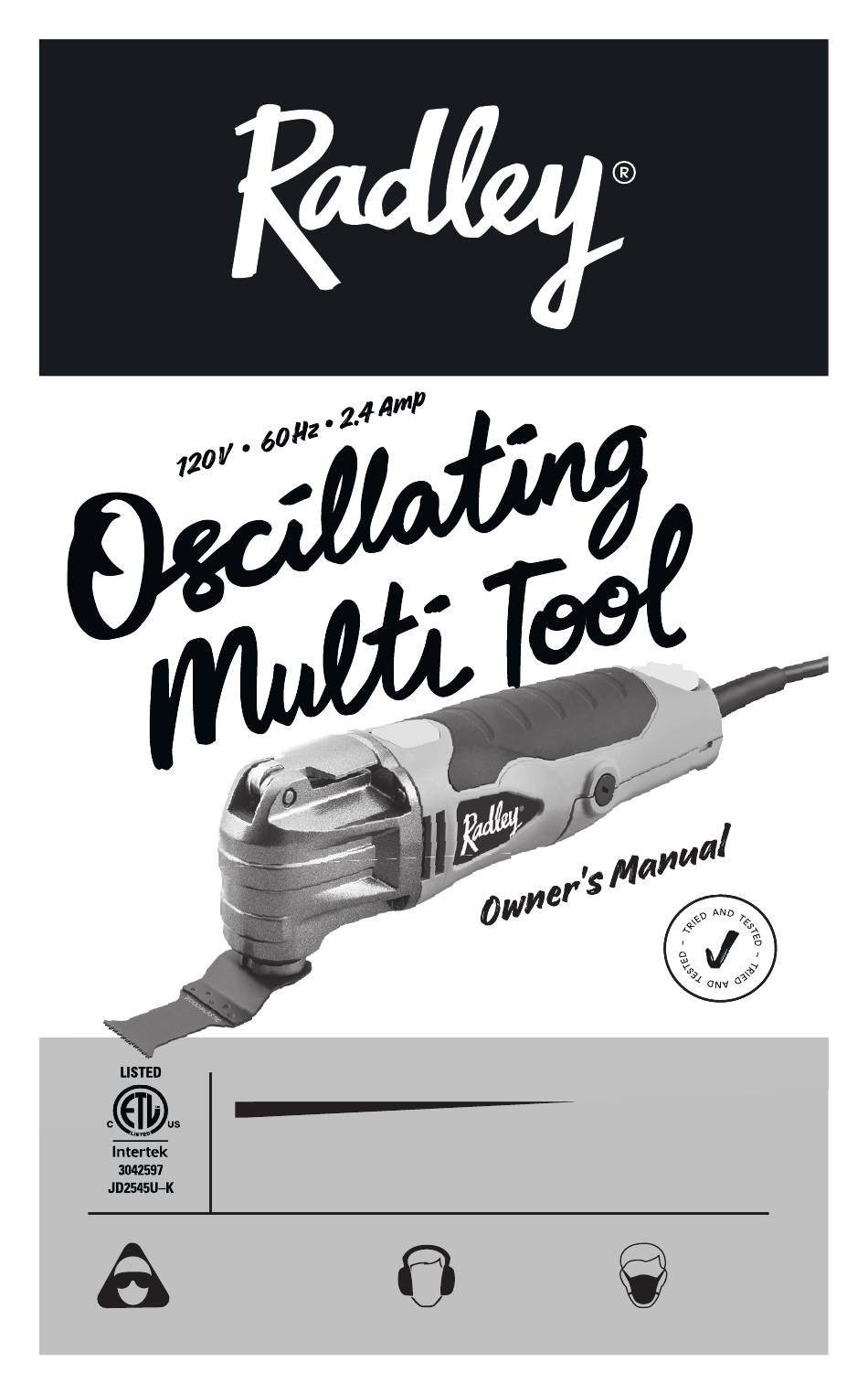

- Page 1 1281-859 READ ALL INSTRUCTIONS BEFORE FIRST USE. READ ALL INSTRUCTIONS BEFORE FIRST USE. KEEP THIS MANUAL FOR FUTURE REFERENCE. KEEP AWAY FROM CHILDREN. WEAR CSA APPROVED WEAR EAR WEAR A EYE PROTECTION PROTECTION FACE MASK...
- Page 2 Oscillating multi tool - Owner's Manual PRODUCT SPECIFICATIONS Rating: 120 V, 60 Hz AC Amperes: 2.4 A RPM: 10,000–21,000 OPM (no load) Oscillating angle: 3.2° Weight: 1.53kg (3.36lbs.) Need Assistance? Call us on our toll free customer support line: 1-866-349-8665 (Monday through Friday 9am – 5pm eastern time) Technical questions •...
-
Page 3: Table Of Contents
1281-859 TABLE OF CONTENTS Product specifications ………….……………………………………………………………1 Table of contents ………….……………………………………………………………2 General safety warnings ………….……………………………………………………………3-4 Eye, ear & lung protection ………….……………………………………………………………3 Electrical safety ………….…………………………………………………………….4 Power tool safety ………….……………………………………………………………4 Work area safety ………….……………………………………………………………4 Electrical safety ………….……………………………………………………………5 Personal safety ………….……………………………………………………………5-6 Power tool use and care ………………….…………………………………………………….6... -
Page 4: General Safety Warnings
Oscillating multi tool - Owner's Manual GENERAL SAFETY WARNINGS WARNING: Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible situations. -
Page 5: Electrical Safety
1281-859 ELECTRICAL SAFETY WARNING: To avoid electrical hazards, fire hazards or damage to the tool, use proper circuit protection. This tool is wired at the factory for 120 V AC operation. It must be connected a 120 V AC, 15 A circuit that is protected by a time-delayed fuse or circuit breaker. -
Page 6: Electrical Safety
Oscillating multi tool - Owner's Manual ELECTRICAL SAFETY Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces such as pipes, radi- ators, ranges and refrigerators. -
Page 7: Power Tool Use And Care
1281-859 If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. POWER TOOL USE AND CARE Do not force the power tool. Use the correct power tool for your application. -
Page 8: Specific Safety Rules
Oscillating multi tool - Owner's Manual SPECIFIC SAFETY RULES WARNING: Know your oscillating tool. Do not plug the tool into the power source until you have read and understand this Instruction Manual. Learn the tool’s applications and limitations, as well as the specific potential hazards related to this tool. -
Page 9: Guidelines For Extension Cords
1281-859 GUIDELINES FOR EXTENSION CORDS Make sure your extension cord is the proper size. When using an extension cord, be sure to use one heavy enough to carry the current the tool will draw. An under- sized cord will cause a drop in line voltage resulting in loss of power and overheat- ing. -
Page 10: Symbols
Oscillating multi tool - Owner's Manual SYMBOLS WARNING: Some of the following symbols may appear on the oscillating tool. Study these symbols and learn their meaning. Proper interpretation of these symbols will allow for more efficient and safer operation of this tool. Volts Direct current Amperes... -
Page 11: Know Your Oscillating Tool
1281-859 KNOW YOUR OSCILLATING TOOL Speed control wheel On/Off switch Tool less accessory holder release lever Motor brush cap Air vents Accessory holder... -
Page 12: Assembly And Operating
Oscillating multi tool - Owner's Manual ASSEMBLY AND OPERATING NOTE: The drawings in the assembly and operating section of this manual may differ slightly from the tool you purchased. INSTALLING ACCESSORIES All accessories are installed on this oscillating tool in a similar manner. For the purposes of describing the accessory installation, the triangular (detail) sanding pad and the wood &... -
Page 13: Installing Sandpaper
1281-859 ASSEMBLY AND OPERATING INSTALLING SANDPAPER 1. Install the hook & loop sanding pad (1) onto the tool (Fig. 2). 2. Firmly press the sandpaper (2) onto the hook & loop pad. NOTE: Press the sandpaper firmly onto the hook & loop pad. -
Page 14: Speed Control Wheel
Oscillating multi tool - Owner's Manual ASSEMBLY AND OPERATING SPEED CONTROL WHEEL The speed of the tool can be adjusted to run the tool at speeds varying between 10,000 OPM and 21,000 OPM by rotating the speed control wheel (1) located Fig.5 toward the rear of the tool housing (Fig. -
Page 15: Flush Cutting A Door Jamb And Casing For Installing Flooring
1281-859 ASSEMBLY AND OPERATING FLUSH CUTTING A DOOR JAMB AND CASING FOR INSTALLING FLOORING The oscillating tool can be used to flush cut a door jamb and casing to allow space for the new flooring to fit neatly under the door jamb and casing. -
Page 16: Cutting A Hole In Wood Flooring To Install A Heating Vent
Oscillating multi tool - Owner's Manual ASSEMBLY AND OPERATING NOTE: Do NOT use the saw blade to pry the cut-out from the floor. You will break the blade. If the cut-out is not easy to pry CUTTING A HOLE IN WOOD FLOORING TO from the floor, check to make sure each INSTALL A HEATING VENT line is cut completely into the corner of the... -
Page 17: Using The Detail Sander Attachment
1281-859 ASSEMBLY AND OPERATING 3. Place the corner edge of the saw blade (2) near the drywall in the middle of one of the cutting lines. 4. Set the speed to the highest speed #6 (Fig. 5 on Page 13). -
Page 18: Using The Scraper Blade
Oscillating multi tool - Owner's Manual ASSEMBLY AND OPERATING This tool is designed for detail sanding on small surface areas. Place the sandpaper surface of the sanding pad on the workpiece to be sanded. Keep the tool moving to avoid gouging the surface. Use coarse sandpaper (80 grit) and lower speeds when sanding rough surfaces and for removing previous finishes. -
Page 19: Maintenance
1281-859 MAINTENANCE GENERAL WARNING: When servicing, use only identical replacement parts. The use of any other part may create a hazard or cause product damage. DO NOT use solvents when cleaning plastic parts. Plastics are susceptible to damage from vari- ous types of commercial solvents and may be damaged by their use. -
Page 20: Exploded View
Oscillating multi tool - Owner's Manual EXPLODED VIEW... -
Page 21: Parts List
1281-859 PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the oscillating tool. Any attempt to repair or replace electrical parts on this oscillating tool may create a safety hazard unless repairs are performed by a qualified technician. - Page 22 Oscillating multi tool - Owner's Manual...
-
Page 23: Warranty
WARRANTY RADLEY OSCILLATING MULTI TOOL WARRANTY If this Radley Tool fails due to a defect in material or workmanship within one year from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange. - Page 24 EXCLUSIVE TO HOME HARDWARE For information on the entire line-up of Radley power tools visit homehardware.ca or your local Home Hardware retail store. MADE IN CHINA / FABRIQUÉ EN CHINE HOME HARDWARE STORES LIMITED ST. JACOBS, ONTARIO N0B 2N0 ORDER ONLINE / COMMANDE EN LIGNE 1281-859 ©...
