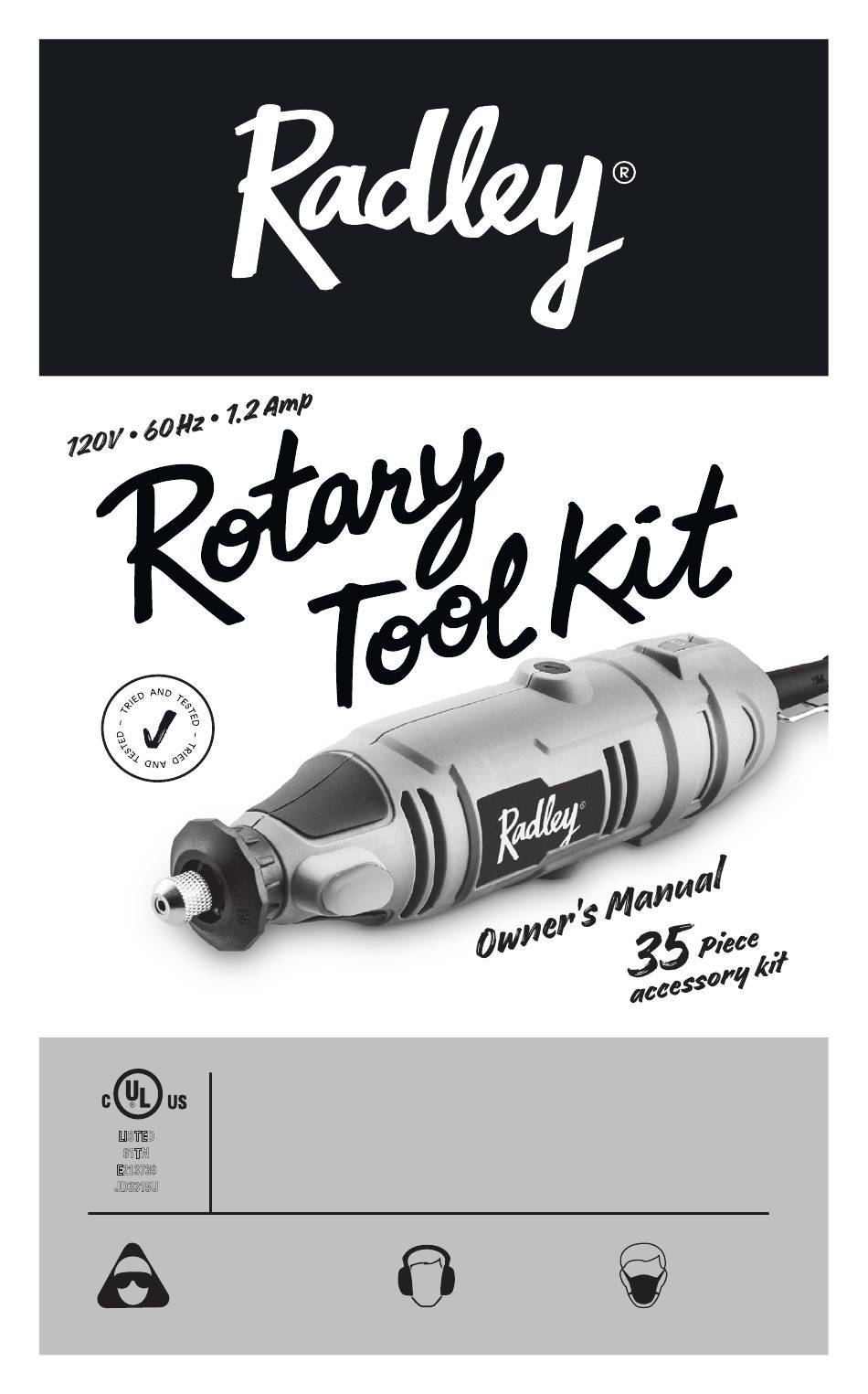

- Page 1 1281-914 READ ALL INSTRUCTIONS BEFORE FIRST USE. KEEP THIS MANUAL FOR FUTURE REFERENCE. LISTED 61TN KEEP AWAY FROM CHILDREN. E213739 JD3315U WEAR CSA APPROVED WEAR EAR WEAR A EYE PROTECTION PROTECTION FACE MASK...
- Page 2 R t r o l K t - O n r's M n a PRODUCT SPECIFICATIONS Rating: 120 V, 60 Hz AC Amperes: 1.2 A RPM: 10,000–35,000 RPM (no load) Collets: 3/32" & 1/8" Weight: 1 lb 8 oz (0.67 kg) Need Assistance? Call us on our toll free customer support line: 1-866-349-8665 (Monday through Friday 9am –...
-
Page 3: Table Of Contents
1281-914 TABLE OF CONTENTS Product specifications ………….……………………………………………………………1 Table of contents ………….……………………………………………………………2 General safety warnings ………….……………………………………………………………3 Eye, ear & lung protection ………….……………………………………………………………3 Electrical safety ………….…………………………………………………………….4 Power tool safety ………….……………………………………………………………4 Work area safety ………….……………………………………………………………4 Electrical safety ………….……………………………………………………………5 Personal safety ………….……………………………………………………………5–6 Power tools use and care ………………….…………………………………………………….6... -
Page 4: General Safety Warnings
Rotary Tool Kit - Owner's Manual GENERAL SAFETY WARNINGS WARNING: Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible situations. -
Page 5: Electrical Safety
1281-914 ELECTRICAL SAFETY WARNING: To avoid electrical hazards, fire hazards or damage to the tool, use proper circuit protection. This tool is wired at the factory for 120 V AC operation. It must be connected a 120 V AC, 15 A circuit that is protected by a time-delayed fuse or circuit breaker. -
Page 6: Electrical Safety
Rotary Tool Kit - Owner's Manual ELECTRICAL SAFETY Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces such as pipes, radi- ators, ranges and refrigerators. -
Page 7: Power Tools Use And Care
1281-914 Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewelery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. -
Page 8: Specific Safety Rules
Rotary Tool Kit - Owner's Manual SPECIFIC SAFETY RULES WARNING: Know your rotary tool. Do not plug the tool into the power source until you have read and understand this Instruction Manual. Learn the tool’s applications and limitations, as well as the specific potential hazards related to this tool. - Page 9 1281-914 Never touch the bit during or immediately after use. After use the bit is too hot to be touched by bare hands. When using any new accessory for the first time, particularly wire wheels, bristle brushes and grinding stones, run the tool at full speed for one minute to remove any loose wires, bristles or stone particles.
-
Page 10: Symbols
Rotary Tool Kit - Owner's Manual SYMBOLS WARNING: Some of the following symbols may appear on the rotary tool. Study these symbols and learn their meaning. Proper interpretation of these symbols will allow for more efficient and safer operation of this tool. Volts Direct current Amperes... -
Page 11: Know Your Rotary Tool

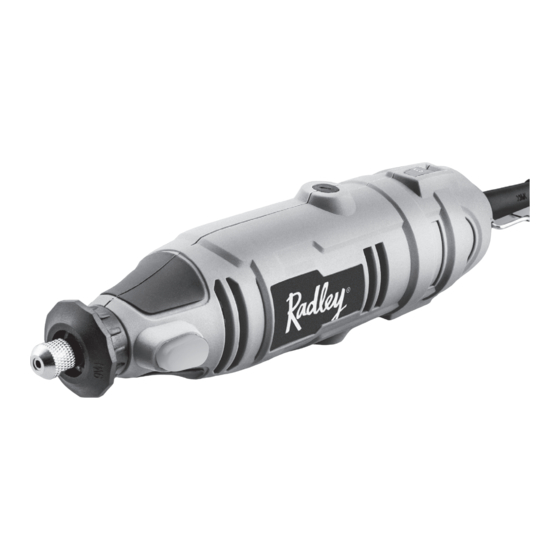

1281-914 KNOW YOUR ROTARY TOOL Speed control wheel Motor brushes Spindle lock button Hanging loop ON/OFF switch Air vents Collet nut Umbrella... - Page 12 Rotary Tool Kit - Owner's Manual...
-
Page 13: Accessory Description & Use
NOTE: Please see the accessory listing on Page 11 to identify the accessories that are included with this rotary tool. NOTE: This Radley Rotary Tool is compatible with most accessories and attachments provided by other leading brands. -
Page 14: Assembly And Operating
Rotary Tool Kit - Owner's Manual ASSEMBLY AND OPERATING VARIABLE SPEED CONTROL WHEEL Set the rotary tool speed by rotating the variable speed control wheel (1) to the appropriate speed (Fig. 1). Position the speed control wheel at "1" for slowest speed, "3" for medium speed and at "MAX"... -
Page 15: Installing Accessories
1281-914 ASSEMBLY AND OPERATING INSTALLING ACCESSORIES 1. Turn the switch OFF and disconnect the tool from the power source. 2. Depress the spindle lock button (1) and slowly turn the collet nut (2) until the spindle lock button locks the spindle (Fig. 4). -
Page 16: Maintenance
Rotary Tool Kit - Owner's Manual MAINTENANCE GENERAL WARNING: When servicing, use only identical replacement parts. Use of any other part may create a hazard or cause product damage. DO NOT use solvents when cleaning plastic parts. Most plastics are susceptible to damage Fig. - Page 17 1281-914...
-
Page 18: Parts List
Rotary Tool Kit - Owner's Manual PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the rotary tool. Any attempt to repair or replace electrical parts on this rotary tool may create a safety hazard unless repairs are performed by a qualified technician. -
Page 19: Warranty
WARRANTY RADLEY ROTARY TOOL KIT WARRANTY If this Radley Tool fails due to a defect in material or workmanship within one year from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange. - Page 20 EXCLUSIVE TO HOME HARDWARE For information on the entire line-up of Radley power tools visit homehardware.ca or your local Home Hardware retail store. MADE IN CHINA / FABRIQUÉ EN CHINE HOME HARDWARE STORES LIMITED ST. JACOBS, ONTARIO N0B 2N0 ORDER ONLINE / COMMANDE EN LIGNE 1281-914 ©...
