I/O daughter board FFC
Removing the Input/Output daughterboard FFC
Prerequisites
1. Follow the procedure in
2. Remove the
SD
card.
3. Remove the
base
cover.
4. Remove the fan.
About this task

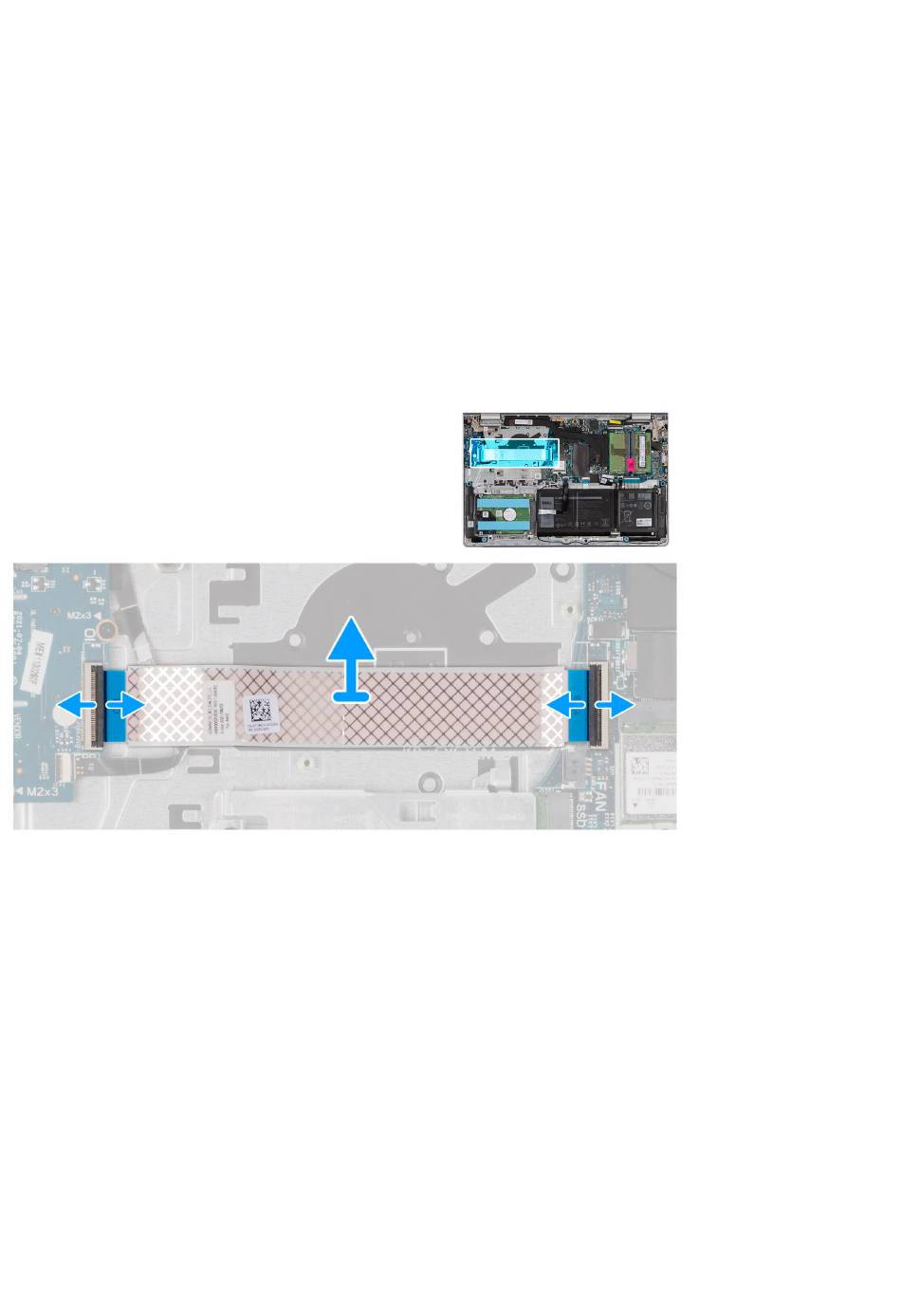

The following image indicates the location of the Input/Output daughter board FFC and provides a visual representation of the
removal procedure in an aluminum chassis.
For systems shipped with a plastic chassis:
36
Removing and installing components
Before working inside your
computer.
