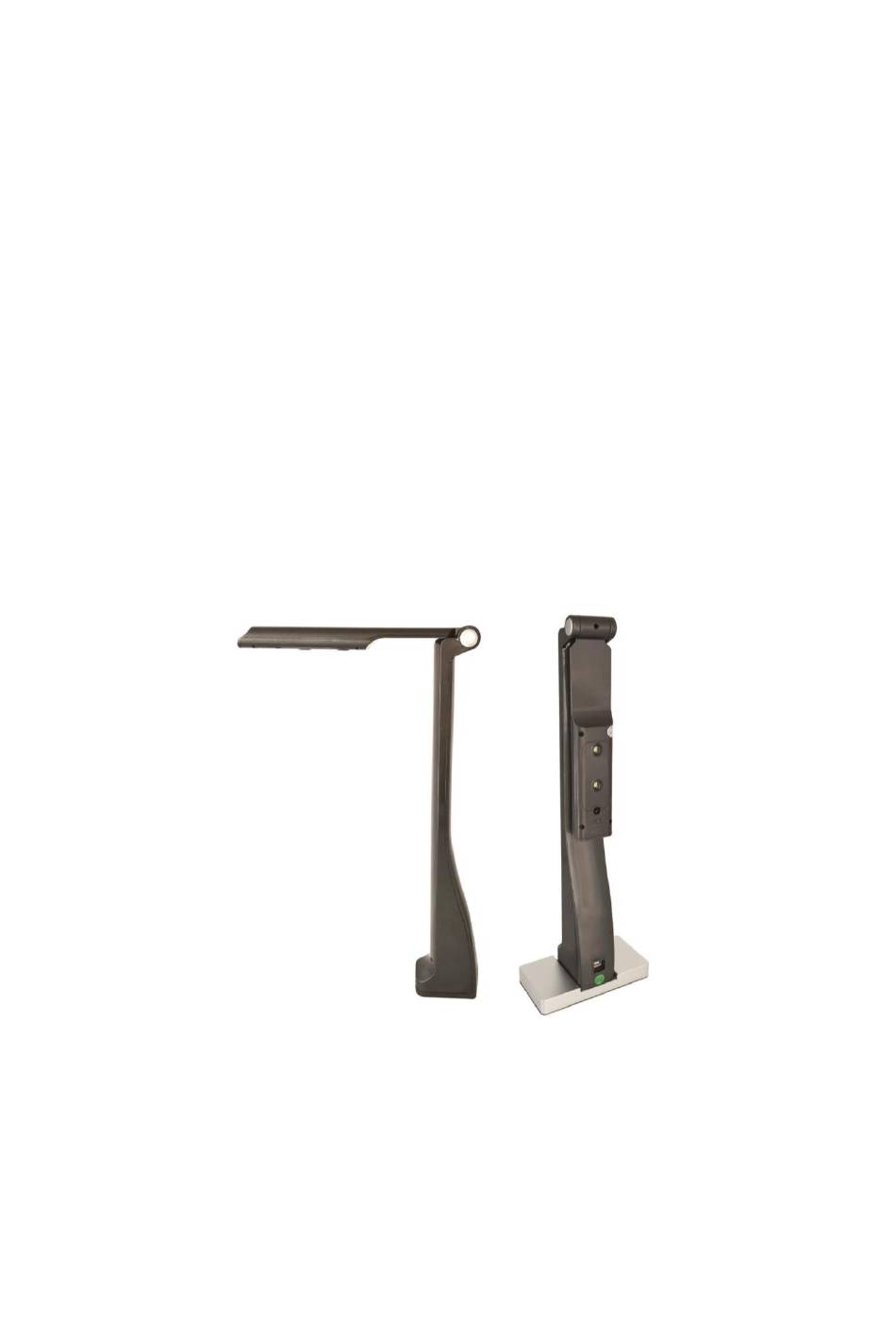

- Page 1 WanderCam 55w User Manual (QPC55W) User Manual Version 4.0.2.2.202111117 (02_02_2022)
-
Page 2: Table Of Contents
WanderCam55w User Manual v4.0.2.2 Content 1. Packing List ..............................3 2. Getting to know your QPC55W ......................3 3. Software Instruction..........................4 4. Installation Instruction ...........................4 4.1 Wireless network card installation ....................4 4.2 Software installation ..........................4 5. Connect to WanderCam QPC55W ......................7 5.1 Wireless Connection ..........................7 5.2 Wired Connection ..........................8 5.3 Indicator light description ........................8 6.Software Function ............................9... -
Page 3: Packing List

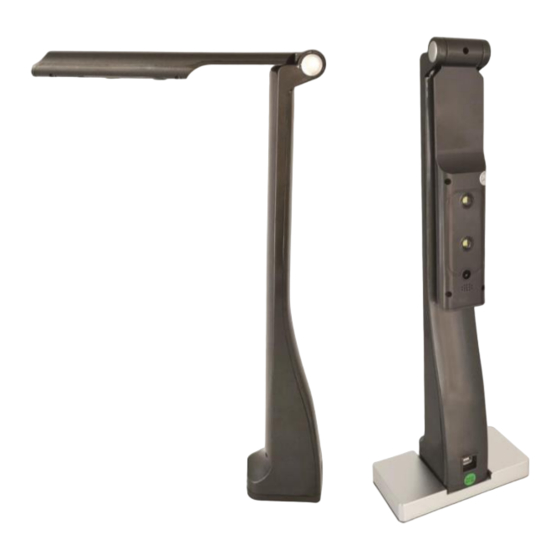

WanderCam55w User Manual v4.0.2.2 1. Packing List When opening the box, please find all included accessories: WanderCam Aluminum base USB Cable USB Wireless Lan Certification Flash Driver 2. Getting to know your QPC55W The QPC55W has a built in 8 mega pixel auto focus camera, microphone, LED lights, a rotating arm, and a removable magnetic base. -
Page 4: Software Instruction
"setup" to install. 4.2 Software installation Install “QView Wireless” on the computer through the software installation package found on USB drive or from QOMO website. Follow the setup wizard to install. As show in Pic 4-1. Pic 4-1... - Page 5 WanderCam55w User Manual v4.0.2.2 You can select the installation folder, as show in Pic 4-2 Pic 4-2 Click “Install” button to begin the installation. As show in Pic 4-3 Pic 4-3 Allow several minutes for the installation process. As show in Pic 4-4 02/02/2022...
- Page 6 WanderCam55w User Manual v4.0.2.2 Pic 4-4 When finished you will see the window shown in Pic 4-5 Pic 4-5 The desktop automatically creates a shortcut icon of “QView Wireless” after installation is complete, as shown in Pic 4-6. Pic 4-6 02/02/2022...
-
Page 7: Connect To Wandercam Qpc55W
(2) After about 10 seconds of powering on, find the Wi-fi signal of the device on your computer shown in Pic 5-1. Connect to the device, the Wi-Fi name and password are found below. WIFI name: QOMO-******-5G, Password: 12345678. If you change the password and forget the modified WIFI name or password, you can... -
Page 8: Wired Connection
WanderCam55w User Manual v4.0.2.2 5.2 Wired Connection When the USB cable is plugged in and connected to the computer, the WanderCam 55W automatically goes into wired mode, As shown in Pic 5-2. Pic 5-2 You can also select wired and wireless devices by clicking the Camera button. If the USB cable is not connected, the Wi-Fi camera will be displayed by default, as shown in Pic 5-3. -
Page 9: Software Function
WanderCam55w User Manual v4.0.2.2 turn red and the device will power off within half an hour. 6.Software Function Double-click the desktop icon to open the software to display your camera, as shown in Pic 6-1. Pic 6-1 6.1 Physical display The user can display content in the display area and utilize features in the lower toolbar to achieve an interactive presentation, shown in Pic 6-2. - Page 10 WanderCam55w User Manual v4.0.2.2 When the device is not connected, the upper left corner displays "No signal..." Resolution The resolution menu automatically displays the resolution value of the device after connecting the device. Click to display the resolution menu, as shown in Pic 6-3, select a different resolution, and the size and clarity of the display screen will change accordingly.
- Page 11 WanderCam55w User Manual v4.0.2.2 Turn left Click to rotate the display 90 degrees counterclockwise. Turn right Click to rotate the display screen 90 degrees clockwise. Mirror Click to flip the image horizontally. Freeze Click to lock the current screen display and keep the screen unchanged.
-
Page 12: Split Screen
WanderCam55w User Manual v4.0.2.2 6.2 Split Screen When clicking “Split Screen” ，the software will go into side by side mode, as shown in Pic 6-4. The image(s) can be selected from existing files and compared with live image. Pic 6-4 Camera：Click to display the camera image. - Page 13 WanderCam55w User Manual v4.0.2.2 Local Picture Click to open an existing picture on file. Local Video Click to open and display an existing video on file. Multi-screen Click to select the amount of images you want to open side-by-side. This feature allows for one screen, two screens, four screens, six screens, eight screens, as shown in Pic 6-6.
-
Page 14: Record
WanderCam55w User Manual v4.0.2.2 6.3 Record Click “Record” in the lower toolbar to open the recording window, you can drag the mouse to zoom the recording window. As shown in Pic 6-7. Pic 6-7 After selecting the recording area, click the start button. Recording will start after a 3 second count down, as shown in Pic 6-8. -
Page 15: File Management
WanderCam55w User Manual v4.0.2.2 Click the stop button to stop the recording, and a pop-up window will display the file location, as shown in Pic 6-10. Pic 6-10 6.4 File Management Click “File” in the lower toolbar to enter the file management interface shown in Pic 6- 11. - Page 16 WanderCam55w User Manual v4.0.2.2 Pic 6-12 Pen Annotate on top of display area Mouse Switch from annotation mode to mouse mode Clear Clear all annotation on the screen. Color Customize your pen color by clicking this icon. A color wheel will appear after clicking, as shown in Pic 6-13.
-
Page 17: Menu
WanderCam55w User Manual v4.0.2.2 Pic 6-13 Line Width Customize the line width of the pen, as shown in Pic 6-14. Pic 6-14 Desktop Switch to the computer desktop view. The whiteboard tools and menu buttons will be available for use. Click the back button to return back to the visualizer screen. - Page 18 WanderCam55w User Manual v4.0.2.2 Pic 6-15 (1) System settings Opens the window of system settings, as shown in Pic 6-16, you can set the image format, named method, video definition, path, and language. Pic 6-16 Path Set the storage path of the content management interface database for storing pictures and video files.
- Page 19 WanderCam55w User Manual v4.0.2.2 (2) About Us Software version information window, as shown in Pic 6-17. Pic 6-17 (3) Maximize Click the button to maximize the window, the button will change to Restore, click the button to restore the window. (4) Minimize Minimize the window.
