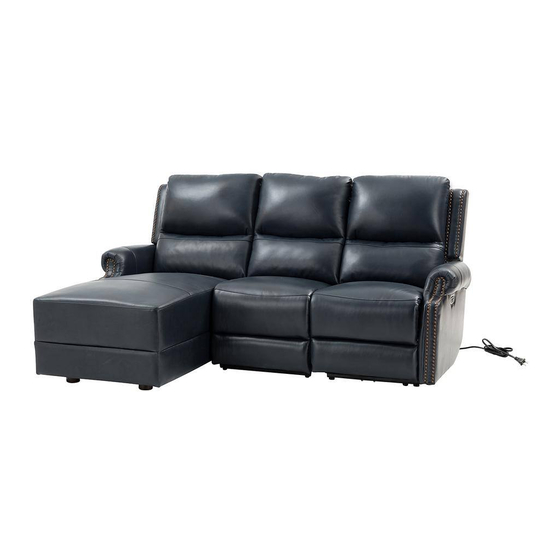

HOMEDEPOT LBL45642 Assembly Instruction

1.Remove all parts from the carton A&B&C&D and place
them on a protected surface or carpet. Take the wood legs-
4pcs out of the box.
2. Attach the back A-(2) to the seat A-(1) by sliding the
receivers into the mechanism posts located on the seat
A-(1). Attach the back wing (3) to the back A-(2) as
shown.
4.Attach the 4 wood legs to the bottom corners of the chaise D. Turn over the chaise, and attach the back C-(2)
to the chaise D-(1) by sliding the receivers into the mechanism posts located on the chaise D-(1).

Assembly Instructions

ITEM NO:LBL45642
NO. Parts
A
B
C
D
3.Attach the back B-(2) to the seat B-(1) by
sliding the receivers into the mechanism
posts located on the seat B-(1).
Quantity
1 seat
1 wing
1 back
1 seat
1 back
1 back
1 wing
1 arm
1 chaise
4 legs
