Summary of Contents for HOMEDEPOT L-BS489SAL-T

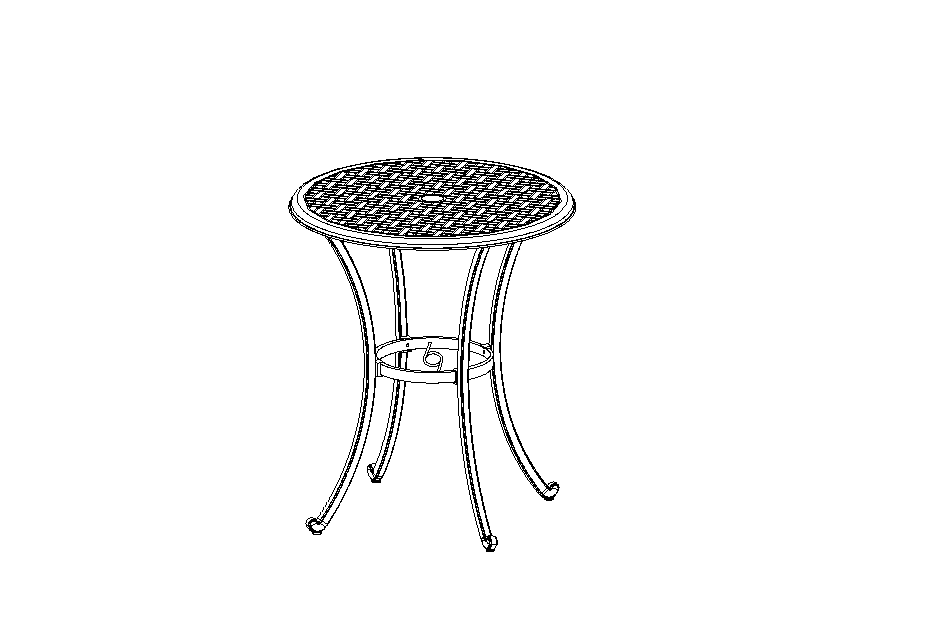

- Page 1 Assembly Instructions Item# L-BS489SAL-T...
- Page 2 Hardware ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． (H5) x4 (H1) x8 (H2) x4...
- Page 3 ITEM DESCRIPTION QUANTITY ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． １...
- Page 4 Step1： Bolt Flat washer Spring washer Fixed ring (H2) go through (H3), (H4), (C), connect with (B), and tighten it. Total 3pcs. (H2) x4 (H3) x4 (H4) x4 Flat washer Spring washer M6 x 30 Bolt...
- Page 5 Step2： Bolt Flat washer Spring washer (H1) go through (H3), (H4), Leg (B), Table top Foot pad connect with (A), and tighten it. Then tighten (H5), total 4pcs. (H1) x8 (H3) x8 (H4) x8 M6x20 Bolt Flat washer Spring washer (H5) ×4 Foot pad (preassemble)
- Page 6 Step3： Cover cap Turn it upright, cover the umbrella hole with (H6), total 1 pc. (H6) x1 Cover cap...
- Page 7 • Care & Maintenance: • 1. Before using, clean the ottoman completely with a soft dry towel. • 2. Do not place your ottoman in wet conditions where there is a risk of rust developing. • 3. When not in use, wipe free of any dirt or loose objects, wash with a mild solution of soap and water; rinse thoroughly and dry completely. Do not use strong detergent or abrasive cleaners.
