HOMEDEPOT LDN605SALT Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly Instructions
Item# LDN605SALT

Advertisement

loading
Need help?

Need help?

Do you have a question about the LDN605SALT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HOMEDEPOT LDN605SALT

Summary of Contents for HOMEDEPOT LDN605SALT

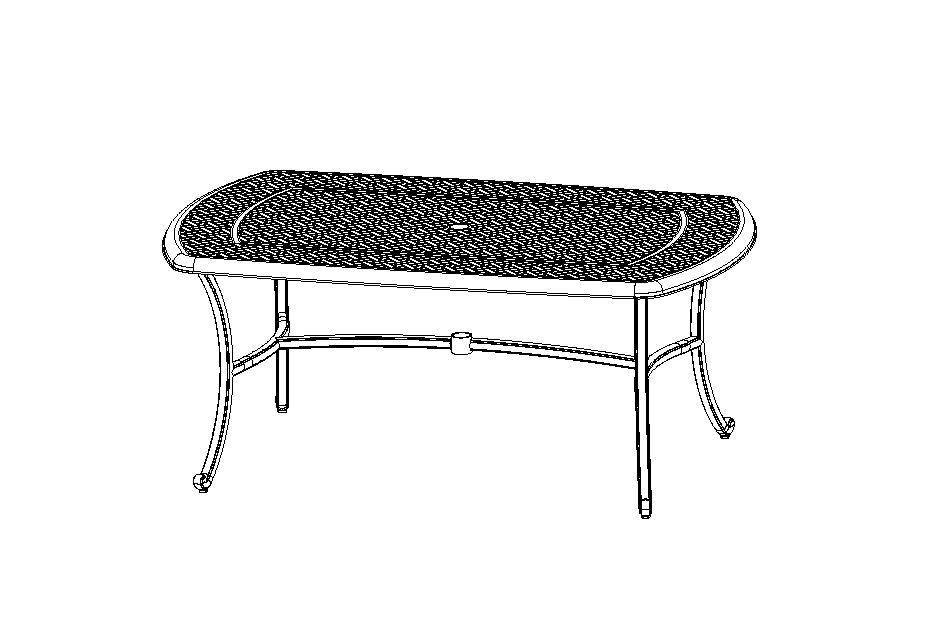

  • Page 1 Assembly Instructions Item# LDN605SALT...

  • Page 2: Before You Begin

    Before you begin 1． Use the carton as a working surface to prevent product damage during assembly 2． Gather all tools prior to assembly Tools needed...
  • Page 3 Table of contents ………………………………………………………... Introduction Hardware Parts list Assembly...
  • Page 4 Hardware ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． (H1) x 20 (H2) x20 (H3) x1...
  • Page 5 ITEM DESCRIPTION QUANTITY ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． １...
  • Page 6 Step 1: Attach (B) to with (H1), (H2) and H3, not tighten bolts fully. (H1) x8 (H2) x8 (H3) x1 M6x20 Bolt M6 Flat washer M6 Wrench (H6) x8 M6 Spring washer...
  • Page 7 Step2: Attach leg (B) to table top (A) with (H1), (H2) and H3. Then tighten all the bolts. (H1) x12 (H4) x4 (H3) x1 M6x20 Bolt Foot pad (preassembled) M6 Wrench (H2) x12 (H6) x12 M6 Flat washer M6 Spring washer...
  • Page 8 Step3: Put the table upright, put Umbrella lid (H5) on the hole of table top (A). (H5) ×1 Umbrella lid Made in China...
  • Page 9 Assembly Instructions LDN605SALS...
  • Page 10 Congratulations on your latest purchase Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way transforming your room in on time.
  • Page 11 Table of contents ………………………………………………………... Introduction Hardware Parts list Assembly...
  • Page 12 Hardware • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • (H1) ×4 (H2) ×4 (H3) ×4...
  • Page 13 ITEM DESCRIPTION QUANTITY ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． Ａ．Chair frame １...
  • Page 14 Step 1: Attach chair frame(A) to connector (B) by using H1,H2,H3,H4,H5. Then, Tighten all blots. (H1) x 4 (H2) x 4 rectangle metal piece M8*40 bolt (H3) x 4 (H4) x 4 M8 washer M8 spring washer (H5) x 4 M8 nut...
  • Page 15 Step 2: Insert finished step 1 into base(C).
  • Page 16 Step 3: Attached cushion (D) to chair seat with Velcro.
  • Page 17 Care & Maintenance: 1. Before using, clean the chair completely with a soft dry towel. 2. Do not place your chair in wet conditions where there is a risk of rust developing. 3. When not in use, wipe free of any dirt or loose objects, wash with a mild soluti o n of soap and water; rinse thoroughly and dry completely. Do not use strong detergent or abrasive cleaners.

This manual is also suitable for:

Ldn605sals
