VERSION
# 20-06-0 9
1 / 7
MODEL #
CM3350AC-2PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - Pe ople
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Table of Contents
Related Manuals for Furniture of America CM3350AC-2PK
Summary of Contents for Furniture of America CM3350AC-2PK

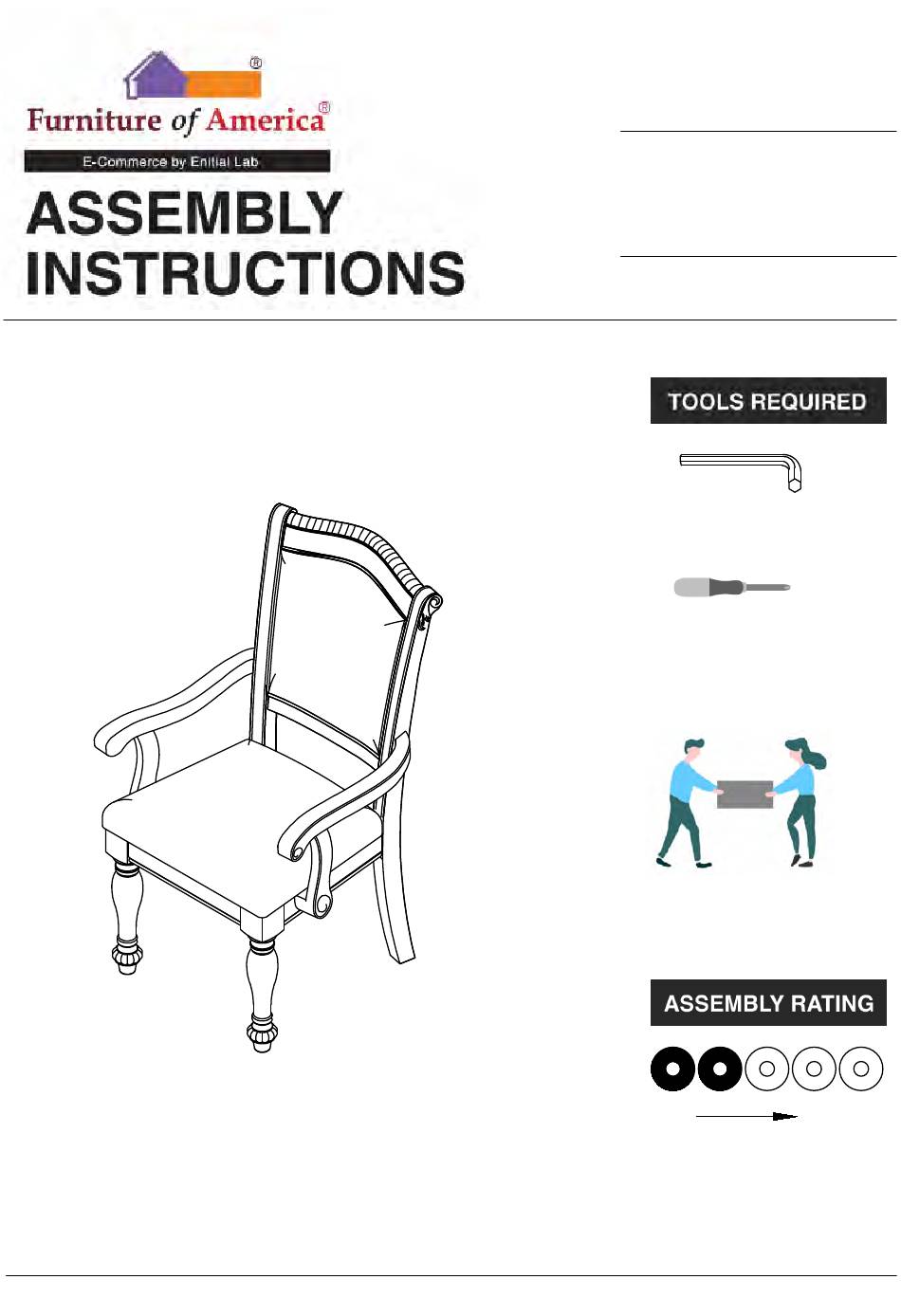

- Page 1 MODEL # CM3350AC-2PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - Pe ople Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 7...
- Page 5 ARM CHAIR CM3350AC-2PK 1pcx2 1pcx2 2pcsx2 2pcsx2 Chair Back Cushion Seat Arm Chair (L&R) #A 6pcsx2 #B 4pcsx2 #C 4pcsx2 #D 14pcsx2 #E 14pcsx2 Bolt Ø5/16" x 1-3/4" Bolt Ø5/16" x 2-3/8" Bolt Ø5/16" x 3" Lock Washer Ø5/16" Flat Washer...
- Page 6 ASSEMBLY INSTRUCTIONS 1. Prepare 2 bolt assemblies by first inserting a lock washer (#D) onto the bolt (#A) then a flat washer(#E) onto that same bolt (#A). Parts #1 x 1pc 2. Insert and align the cushion (#2) to the holes along the chair back (#1).
- Page 7 ASSEMBLY INSTRUCTIONS 1. Prepare 4 bolt assemblies by first inserting a lock washer (#D) onto the bolt (#B) then a flat washer (#E) onto that same bolt (#B). Parts #3 x 2pcs 2. Align the legs (#3) to the front corners, then insert the bolt assemblies and ecure. Hardware #B x4pcs Hardware...
