Assured Wireless AW12 Quick Start Manual

AW12 Modem Vehicle Installation Kit
QUICK START GUIDE
This quick start guide gives the basic steps for installing the AW12 MegaRange unit in vehicles.
1
Ensure you have all the necessary equipment
The following should have been included in the vehicle installation kit:

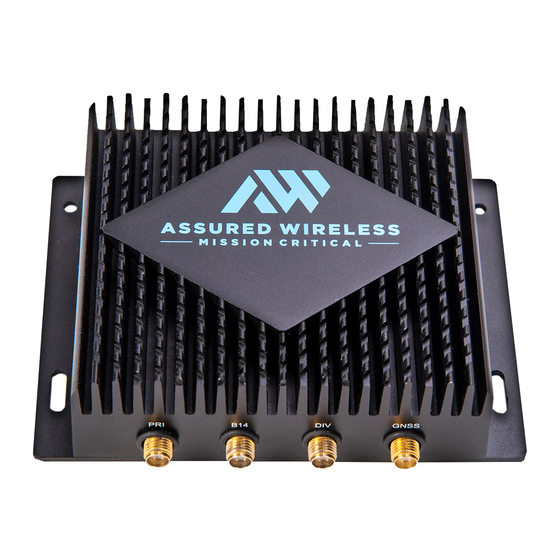

■ AW12-DE modem
■ AW12-PC-EI USB to Ethernet converter
■ Vehicle mounting bracket
■ (2) M6 screws and (2) M6 lock washers
■ (4) M3 screws and (4) M3 lock washers
■ SIM extractor tool
You will also need the following (not included in your kit):
■ GPS active/passive antenna
■ (2) LTE antennas
■ HPUE (B14) antenna
Note.
The antennas can be purchased as separate units or as a single four-in-one unit. See our
recommendations for compatible antennas at assured-wireless.com/products/antennas.
2
Insert SIM card
1
Locate the SIM card slot on the top of the AW12 modem.
2
Use a small Phillips head screwdriver to remove the screw
on the SIM slot door.
3
Use the depression on the upper left corner of the SIM
slot door to pry the door off. You should now see the top
of the silver SIM tray.
4
Insert the inclued SIM extractor tool into the hole on the
SIM tray; the tray should pop partway out.
5 Remove the SIM tray completely.
6 Insert your activated FirstNet SIM card into the tray. Note
that the tray is notched, so the card can only be inserted
the correct way.
7 Re-insert the SIM tray into its slot.
8
Replace the SIM slot door and replace the screw, being
careful not to overtighten.
Copyright ©2021 Assured Wireless Corporation. All rights reserved. All information provided here is subject to change
without notice. Assured Wireless and the Assured Wireless logo are trademarks of Assured Wireless Corporation.
■ Cat5e Ethernet cable
■ USB screwtight cable
■ DC power cable (4-pin Molex)
■ DC power cable (modem to Ethernet converter)
■ AC adapter
■ Activated FirstNet 3FF micro SIM card
■ Phillips #2 screwdriver
■ Phillips #00 screwdriver

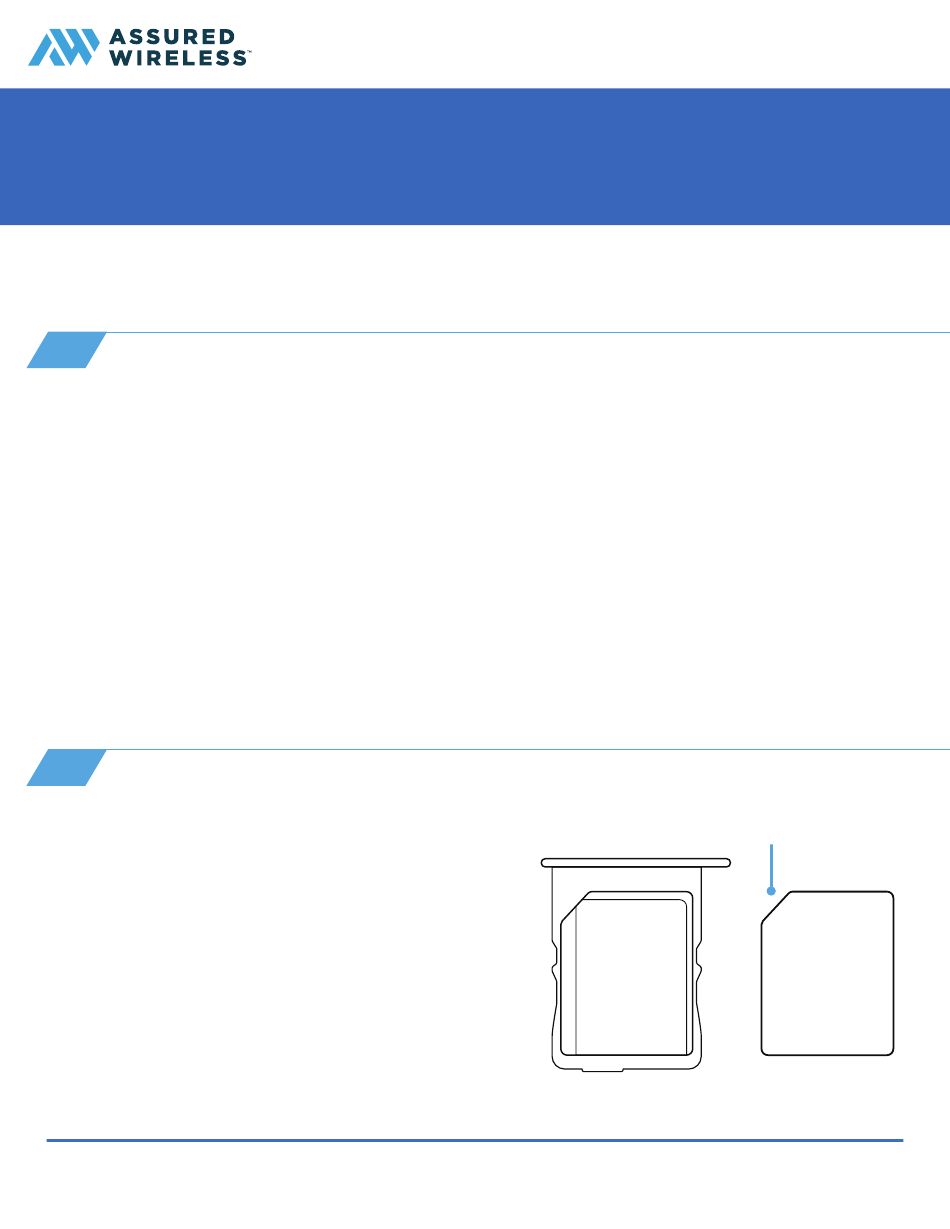

VEHICLE INSTALLATION
Align notch and
insert in tray
