Assured Wireless AW12 Quick Start Manual

AW12 Modem Vehicle Installation Kit
QUICK START GUIDE
This quick start guide gives the basic steps for installing the AW12 MegaRange unit in vehicles.
1

Ensure you have all the necessary equipment

The following is included in the vehicle installation kit:
■ AW12-DE modem
■ AW12-PC-EI USB to Ethernet converter
■ Vehicle mounting bracket
■ (2) M6 screws and (2) M6 lock washers
■ (4) M3 screws and (4) M3 lock washers
You will also need the following (not included in your kit):
■ GPS active/passive antenna
■ LTE antennas (need 3 leads)
Note.
The antennas can be purchased as separate units or as a single unit. See our recommended
antennas at assured-wireless.com/products/antennas.
2

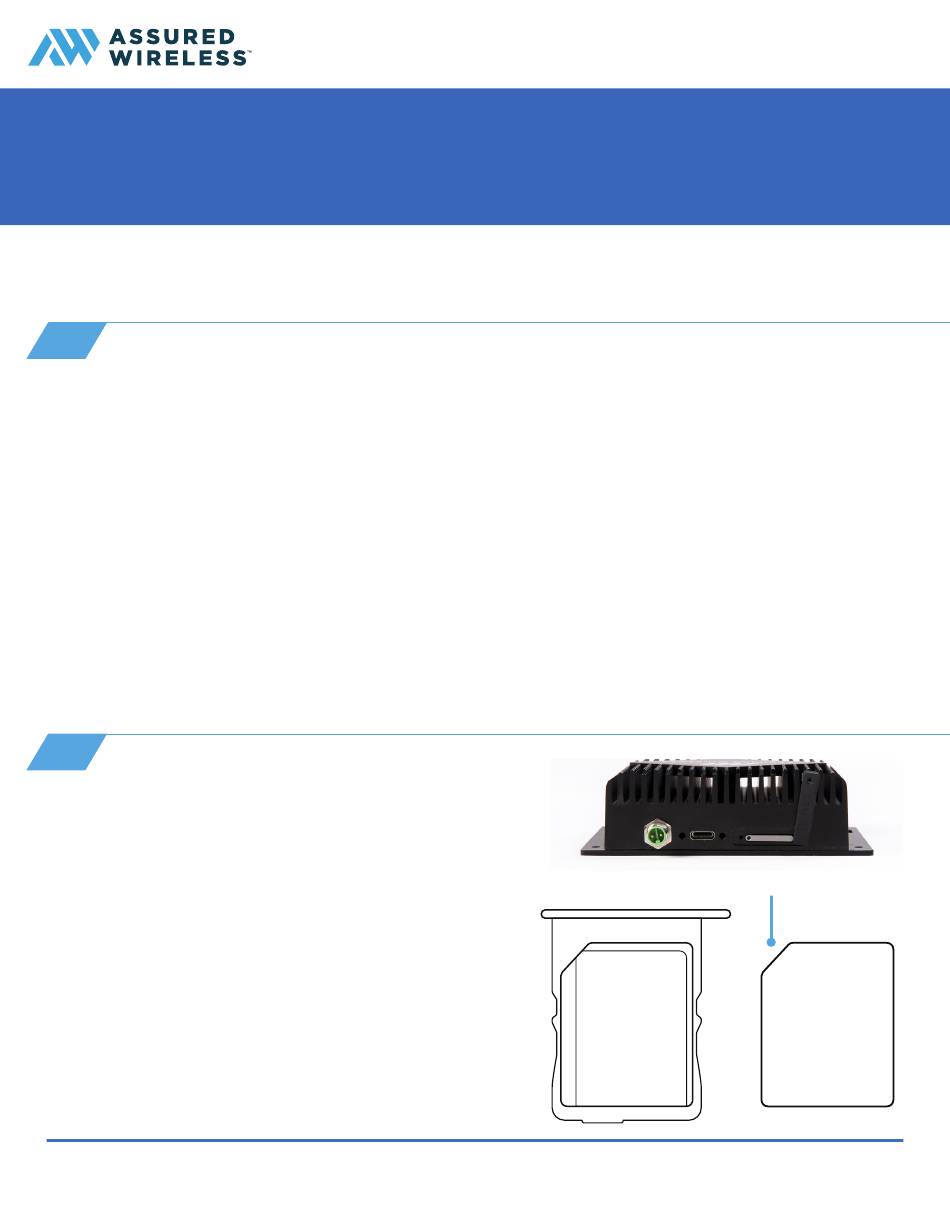

Insert SIM card

Note.
Your distributor may have already inserted the SIM. If
so, please skip to section 3.
1 Locate the SIM card slot on the side of the AW12 modem.
2
Remove the screw on the SIM slot door.
3
Use the depression on the upper left corner of the SIM
slot door to open the door. You should now see the edge
of the silver SIM tray.
4
Insert the included SIM extractor tool into the hole on the
SIM tray; the tray should pop partway out.
5
Remove the SIM tray completely.
6
Insert your activated FirstNet SIM into the tray. Note that
the tray is notched, so the card can only be inserted the
correct way.
7
Re-insert the SIM tray into its slot.
8 Replace the SIM slot door and replace the screw, being
careful not to overtighten.
