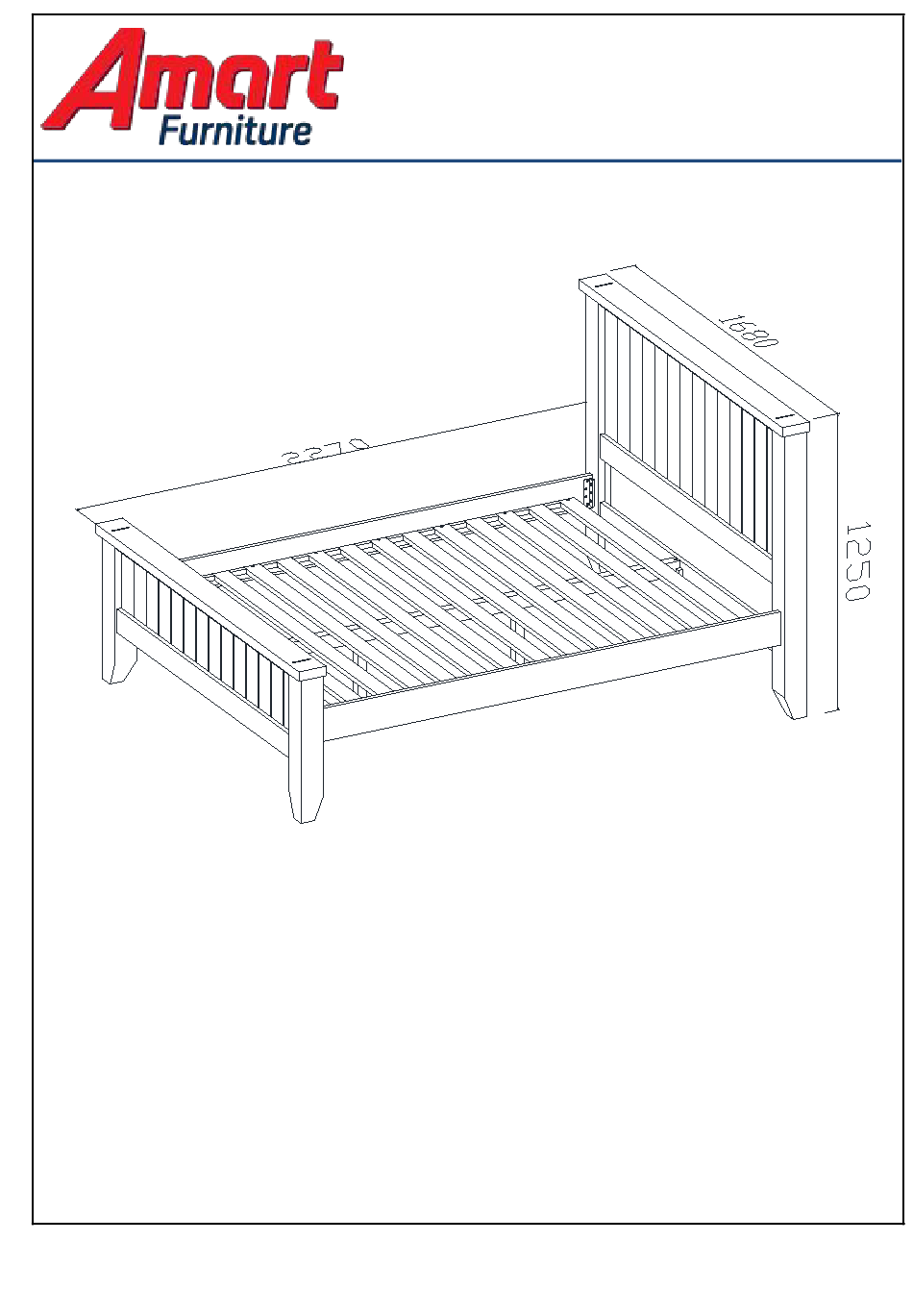

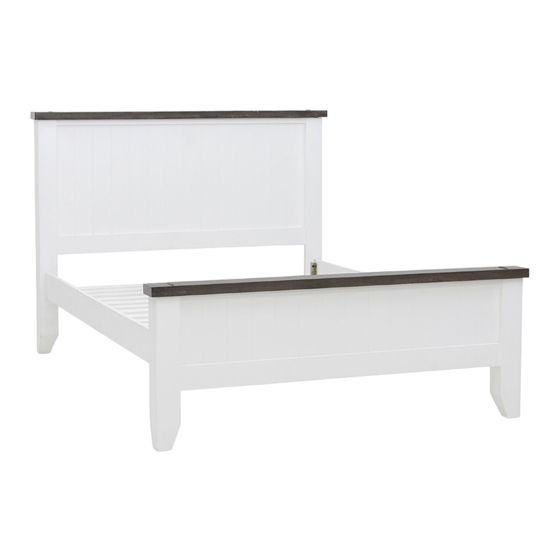

ASSEMBLY INSTRUCTION
LE FRANSCHHOEK- QUEEN BED
ITEM CODE 52195
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
1
52195

Advertisement

loading
Need help?

Need help?

Do you have a question about the LE FRANSCHHOEK 52195 and is the answer not in the manual?

Questions and answers

Related Manuals for Amart Furniture LE FRANSCHHOEK 52195

Summary of Contents for Amart Furniture LE FRANSCHHOEK 52195

  • Page 1 ASSEMBLY INSTRUCTION LE FRANSCHHOEK- QUEEN BED ITEM CODE 52195 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.

  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly.

  • Page 3: Parts List

    PARTS LIST HEADBOARD FOOTBOARD SIDERAIL CENTRE RAIL SUPPORT LEGS SLATS a. Bolt M6x10 b. Bolt M8x60 c. Allen key M5 d. Allen key M4 8pcs 2pcs e. Screw M4x30 f. Screw M4x40 Flat Washer h. Lock Washer 16pcs 2pcs 2pcs 2pcs 52195...

  • Page 4: Items Required

    ITEMS REQUIRED a. Bolt M6x10 c. Allen key M5 8pcs  Attach side rail ( 3 ) to headboard (1) and footboard (2) using bolts (a).  Tighten with Allen Key (c). 52195...
  • Page 5 ITEMS REQUIRED b. Bolt M8x60 d. Allen key M4 g. Flat Washer h. Lock Washer 2pcs 2pcs 2pcs  Attach Support legs (5) to Centre rail (4) with bolts (b) and Flat Washers (g)&(h).  Tighten with Allen Key (d). 52195...
  • Page 6 ITEMS REQUIRED f. Screw M4x40 2pcs  Attach centre rail (4) to Headboard (1) and Footboard (2) using Screw (f).  Use Screwdriver or Power Drill on Low Speed. 52195...
  • Page 7 ITEMS REQUIRED e. Screw M4x30 16pcs Attach Slats (6) to Siderail (3) using Screw (e).  Use Screwdriver or Power Drill on Low Speed.  Please only screw down every 2 slat.  First and last slats need two screws each. ...
  • Page 8 ASSEMBLY IS COMPLETE CAUTION Always Lift Your Bed When Moving/Relocating – Do Not Drag. Dragging Can Cause The Centre Support Legs To Bend/Break 52195...
  • Page 9 Care and maintenance • A multi-step finish is applied to all our furniture, but all wood comes from nature. Because of this, there will be natural variations in surface texture and grain like knots, mineral streaks and sap runs that may affect the finish. These differences in character are not defects, but distinctions that make each piece of furniture unique.
