Furniture
Imported by Amart Furniture Pty Ltd,Qld, Brisbane Australia. For any assistance with
assembly or for missing parts please phone Amart Furniture, Customer Service
Freecall 1800 351 084.

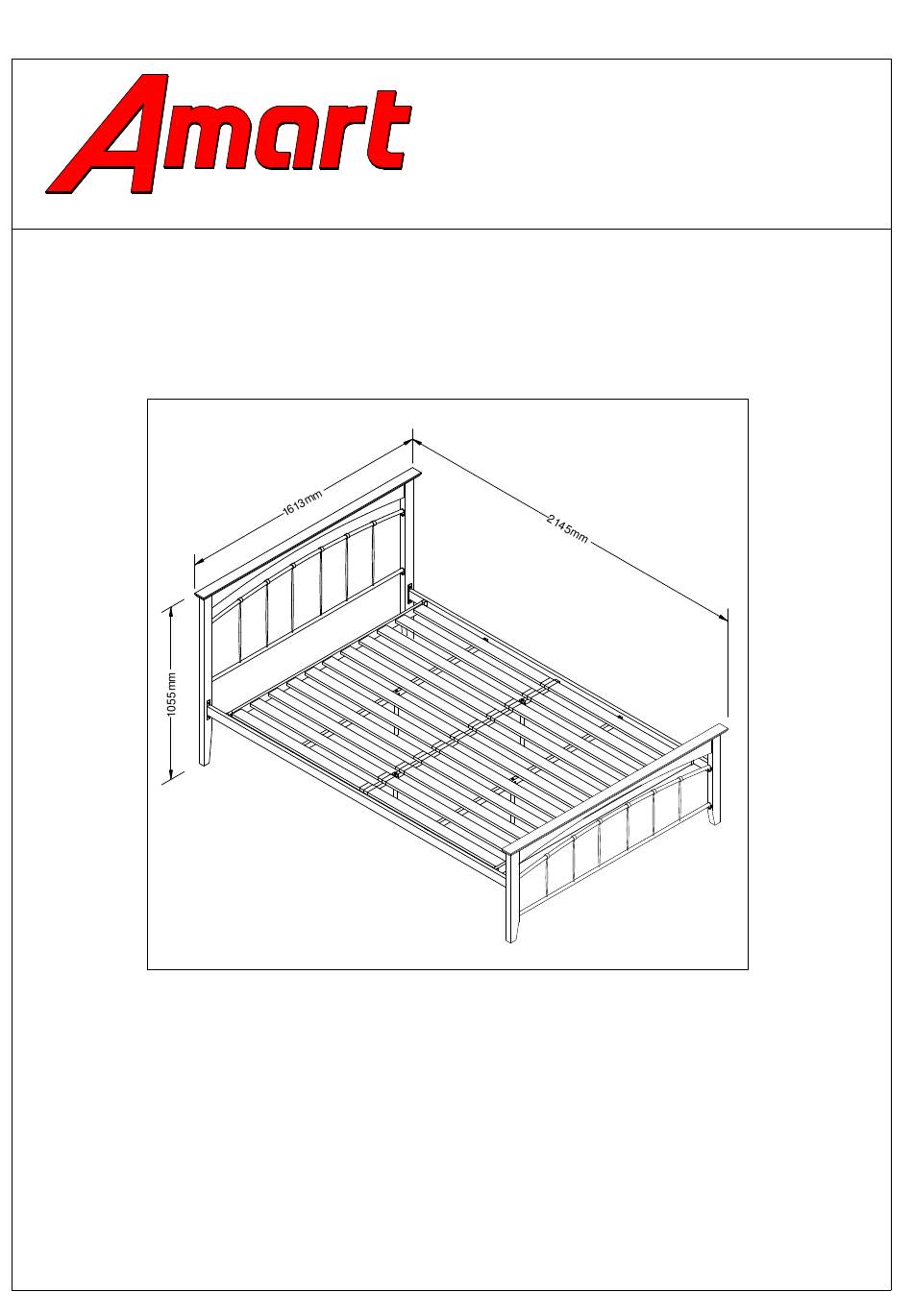

ASSEMBLY INSTRUCTION
KIRSTY QUEEN BED
ITEM CODE - 53258
Imported by Amart Furniture Pty Ltd,Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Freecall 1800 351 084.
1
53258
Advertisement
Related Manuals for Amart Furniture KIRSTY 53258
Summary of Contents for Amart Furniture KIRSTY 53258
- Page 1 For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Freecall 1800 351 084. Imported by Amart Furniture Pty Ltd,Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Freecall 1800 351 084.
- Page 2 PRE-ASSEMBLY PREPARATION BEFORE YOU START..1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product. 2. Check and ensure that you have all required contents for complete assembly. 3. Always read the assembly instructions carefully before beginning assembly. 4.
- Page 3 PARTS LIST TOP BAR 2 pcs CENTER CROSS BAR 2 pcs CROSS BAR HEAD WOOD POST 2 pcs 2 pcs FOOT WOOD POST 2 pcs SHORT SUPPORT LEGS 2 pcs 1 pc 1 pc HEAD METAL FRAME LONG SUPPORT LEGS FOOT METAL FRAME 1 pc WOOD SLATS...
- Page 4 STEP 1 : Fix all components of head frame and foot frame with hardware as shown. HEAD FRAME FOOT FRAME STEP 2 : Fix both side rails (6) and center cross bar (8) with bolt (C) using Allen key (J). 53258...
- Page 5 STEP 3 : Put cross bar (9) into side rail and fix in bolt (E) using Allen key (J). STEP 4 : Attach the end cross bars (7) and tighten with bolt (C) using Allen key (J). 53258...
- Page 6 STEP 5 : Attach short support legs (10) to cross bars (9) with bolts (D) using Allen key (I). Attach long support legs (11) to center cross bars (8) with bolts (H) using Allen key (K). CAUTION : ALWAYS LIFT YOUR BED WHEN MOVING/RELOCATING - DO NOT DRAG. DRAGGING CAN CAUSE THE CENTER SUPPORT LEGS TO BEND/BREAK.
- Page 7 STEP 7 : Insert wooden slats (12) into both ends of the double end plastic cap (A). Insert other ends of slats into provided holes in end cross bars (7) then align the plastic caps with the centre cross bar (8) as shown. Press down on the caps gently to secure. ASSEMBLY IS COMPLETE IMPORTANT NOTE : ALWAYS LIFT YOUR BED WHEN MOVING/RELOCATING - DO NOT DRAG.
- Page 8 Product Care for Hi-Gloss Items Hi-gloss lacquered furniture is more sensitive to marks and scratching then some other furniture products. It is important to exercise caution and care to maximise the life and beauty of this product. Following the below simple guidelines when using your hi-gloss product will protect your investment for years to come.
