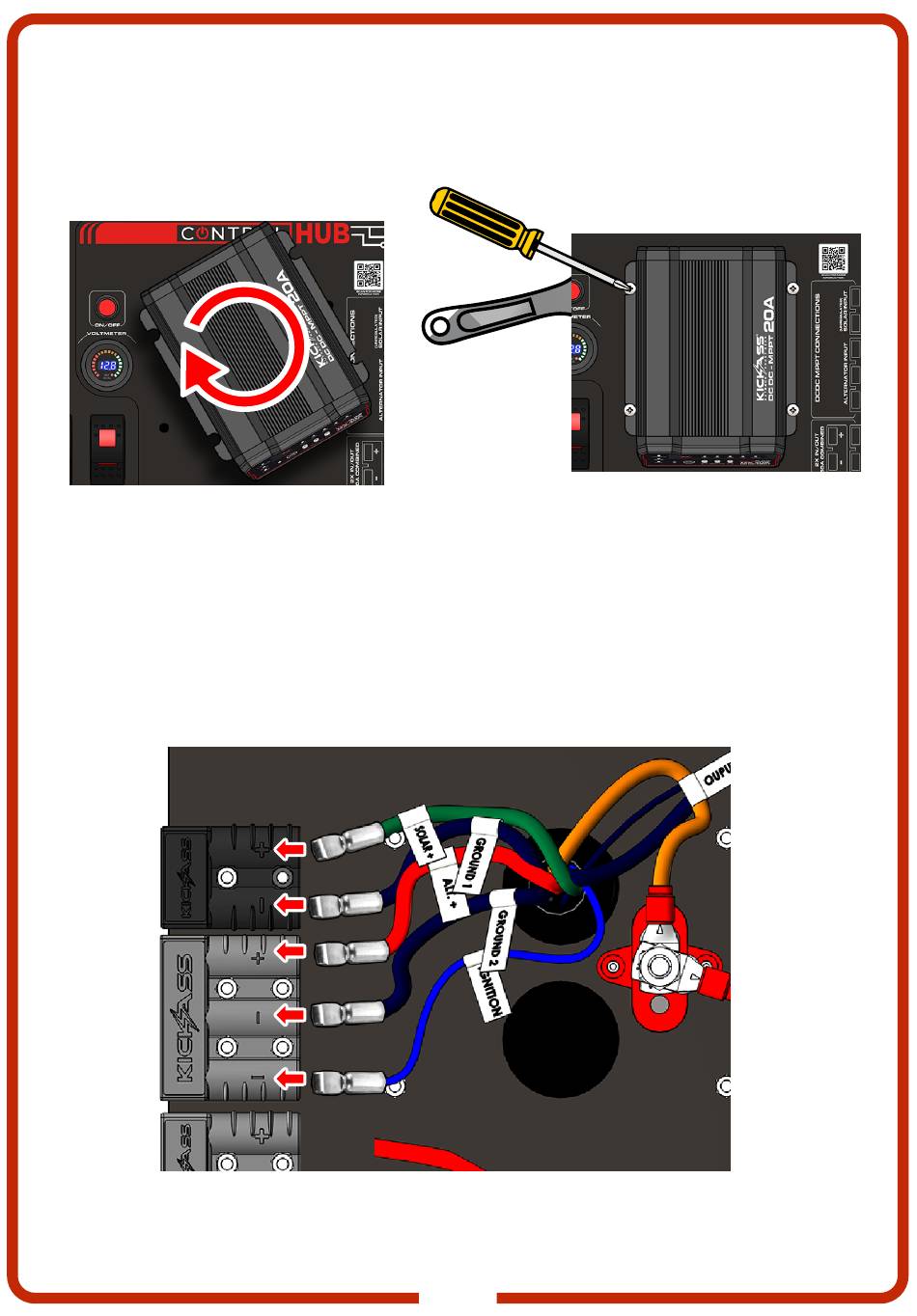

Step 6: Rotate the DCDC Charger and carefully thread the wires through the other large
hole located under the DCDC charger's mounting location. Align the mounting holes on
the charger with the ones on the control hub and replace the mounting bolts, ensuring
they are adequately tightened.
Step 7: Replace the wires from the solar (Green and Black) and alternator (Red, Black
and Blue) Anderson style plugs. This can be done by gently pushing the anderson pin
into the plug. Note: Do not pull to hard on the wire as this may damage the unit
Note: The order of the wires from top to bottom should be Green, Black, Red, Black, Blue
