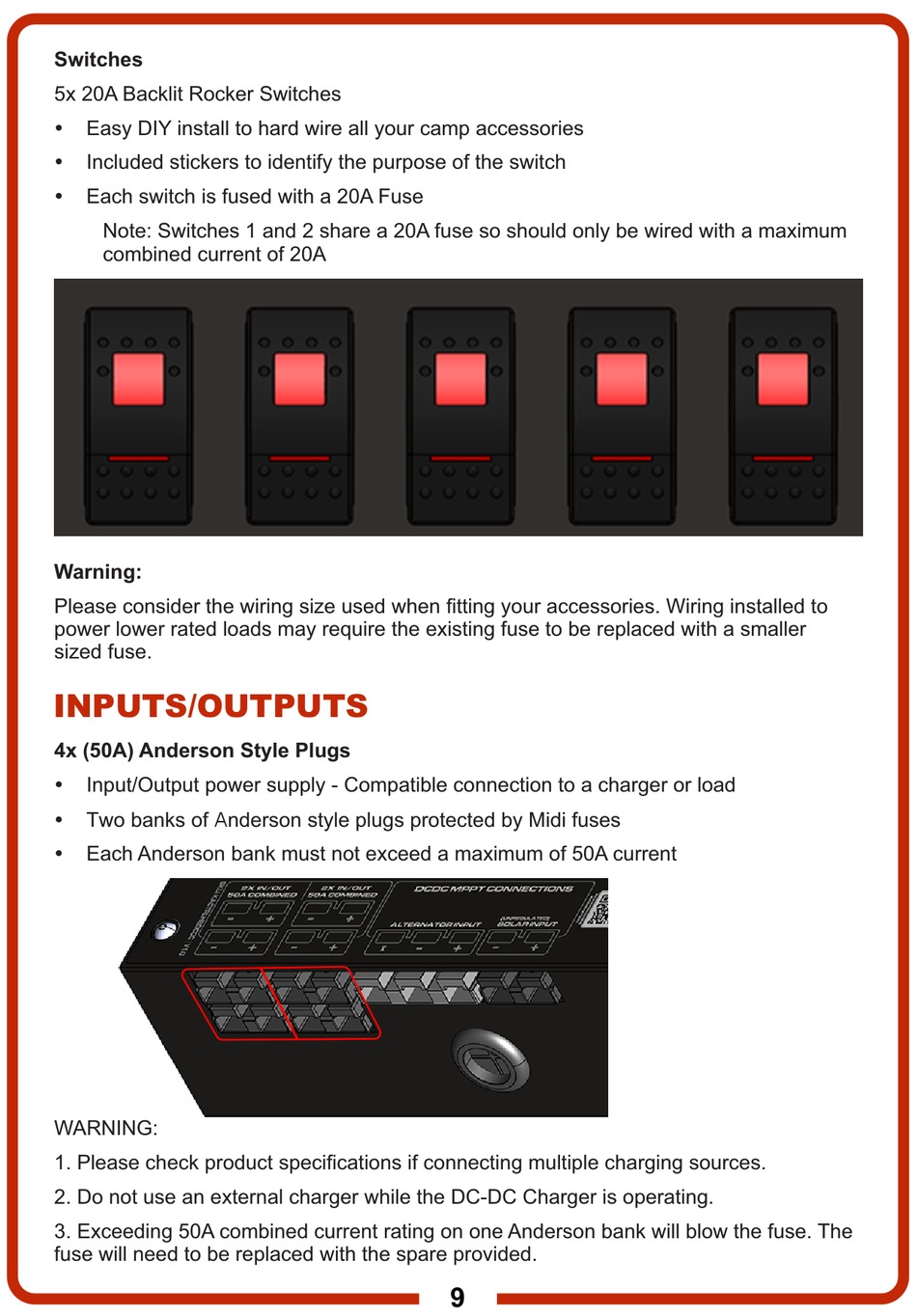

Switches
5x 20A Backlit Rocker Switches
Ÿ
Easy DIY install to hard wire all your camp accessories
Ÿ
Included stickers to identify the purpose of the switch
Ÿ
Each switch is fused with a 20A Fuse
Note: Switches 1 and 2 share a 20A fuse so should only be wired with a maximum
combined current of 20A
Warning:
Please consider the wiring size used when fitting your accessories. Wiring installed to
power lower rated loads may require the existing fuse to be replaced with a smaller
sized fuse.
INPUTS/OUTPUTS
4x (50A) Anderson Style Plugs
Ÿ
Input/Output power supply - Compatible connection to a charger or load
Two banks of Anderson style plugs protected by Midi fuses
Ÿ
Ÿ
Each Anderson bank must not exceed a maximum of 50A current
WARNING:
1. Please check product specifications if connecting multiple charging sources.
2. Do not use an external charger while the DC-DC Charger is operating.
3. Exceeding 50A combined current rating on one Anderson bank will blow the fuse. The
fuse will need to be replaced with the spare provided.
9
