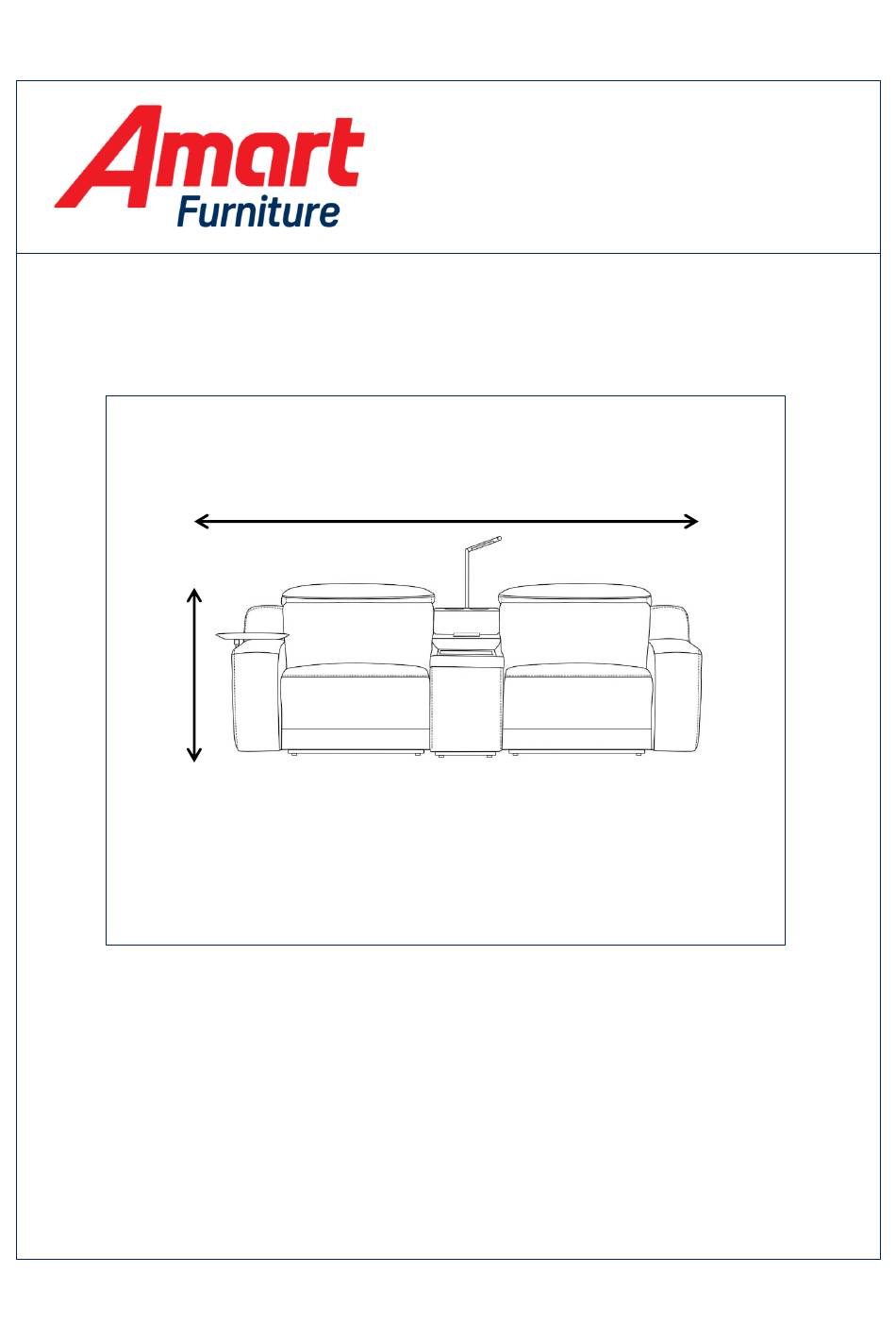

ASSEMBLY INSTRUCTION
CASSIUS 2SEATER
ITEM CODE 70811
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
246cm
Depth: 107cm
1
70811
Advertisement
Related Manuals for Amart Furniture CASSIUS 70811
Summary of Contents for Amart Furniture CASSIUS 70811
- Page 1 ASSEMBLY INSTRUCTION CASSIUS 2SEATER ITEM CODE 70811 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 246cm 85cm Depth: 107cm Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 70811...
-
Page 2: Pre-Assembly Preparation
PRE‐ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly. - Page 3 Step1: Locate package of recliner power cord and arm table kit which are fixed on the mechanism at the bottom of left hand facing recliner. With 2 people carefully turn onto back on piece of cardboard or carpet to protect covering Recliner Power Cord Arm table kit Recliner power cord 1pcs Arm Table Lid Arm Table Bracket Allen key Bolt M6X16 1pcs 1pcs 1pcs 4pcs Step2: Install the arm table lid on the table bracket with four bolts by Allen key. clockwise turning the Allen key for tighten of the bolts 70811...
- Page 4 Step3: Attach the table bracket to the base inside left or right arm pocket according to demand. Base inside arm pocket Step4: Plug recliner power cord into the socket at the back panel of left hand facing recliner. SAFETY NOTE: PLEASE ENSURE THAT ALL ELECTRICAL CORDS AND CABLES ARE CLEAR OF THE FRAME AND MECHANISM. A FAILURE TO DO SO MAY SEVER YOUR POWER CORD RESULTING IN SERIOUS INJURY OR DEATH. 70811...
- Page 5 Step5: Locate packages of sound power cord and reading light that are placed into zipper pocket at the bottom console. With 2 people carefully turn onto back on piece of cardboard or carpet to protect covering Sound Power Cord Reading Light 1pcs 1pcs Step6: Attach the reading light to the base inside back cover, then connect the cord of reading light with cord inside back cover. Button Switch Reading light at the front of Cord of reading light light bar Cord inside back cover Base inside back cover 70811...
- Page 6 Step7: Plug sound power cord into the socket at the back panel of console. SAFETY NOTE: PLEASE ENSURE THAT ALL ELECTRICAL CORDS AND CABLES ARE CLEAR OF THE FRAME AND MECHANISM. A FAILURE TO DO SO MAY SEVER YOUR POWER CORD RESULTING IN SERIOUS INJURY OR DEATH. Step8: Locate package of recliner power cord which is fixed on the mechanism at the bottom of right hand facing recliner. With 2 people carefully turn onto back on piece of cardboard or carpet to protect covering Recliner power cord Recliner Power Cord 1pcs 70811...
- Page 7 Step9: Plug recliner power cord into the socket at the back panel of right hand facing recliner. SAFETY NOTE: PLEASE ENSURE THAT ALL ELECTRICAL CORDS AND CABLES ARE CLEAR OF THE FRAME AND MECHANISM. A FAILURE TO DO SO MAY SEVER YOUR POWER CORD RESULTING IN SERIOUS INJURY OR DEATH. Step10: Connect 3 pieces from right to left. Begin with RHF electric recliner, then console till final item of LHF electric recliner. Right Left 1st PCS 3rd PCS slide clips at connecting item into clips at connected item, then together press front and rear side of connecting item to ensure the clips go into each other to the bottom. 70811...
- Page 8 Step11: Connect the cords of light strip between every piece. SAFETY NOTE: PLEASE ENSURE THAT ALL ELECTRICAL CORDS AND CABLES ARE CLEAR OF THE FRAME AND MECHANISM. A FAILURE TO DO SO MAY SEVER YOUR POWER CORD RESULTING IN SERIOUS INJURY OR DEATH. 70811...
- Page 9 70811...
- Page 10 70811...
