HumPRO
Series Master Development System
TM
Quick Start Reference
Remove Contents
1

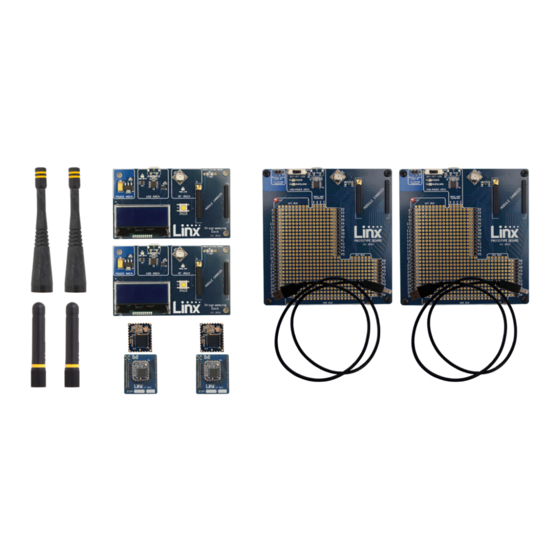

Remove kit contents including development boards,
antennas, batteries, modules and USB cables.
Install the Software
3
Install the Windows software from the
CD that is included with the kit. If already
installed, skip this step.
Set Up the Programming Docks
2
With the power off, set up boards by inserting EVMs into
sockets on the Programming Docks and attaching the
antennas.
Connect the Programming Docks
4
Connect the Programming Docks to a
computer with the cables included with
the kit. USB drivers are on the CD so
install them if prompted by the computer.
Start the Software
5
Start the software. It automatically
detects conected modules and reads
their configurations.
Revised 6/20/14
Advertisement
Related Manuals for Linx Technologies HumPRO MDEV-900-PRO
Summary of Contents for Linx Technologies HumPRO MDEV-900-PRO
- Page 1 HumPRO Series Master Development System Quick Start Reference Remove Contents Set Up the Programming Docks Remove kit contents including development boards, With the power off, set up boards by inserting EVMs into antennas, batteries, modules and USB cables. sockets on the Programming Docks and attaching the antennas.
- Page 2 RFACTV RESET CMD_DATA_IN POWER_DOWN Warning: Installing or removing a Carrier Board while power is applied could cause permanent dam- CRESP age to the module. Either turn off power to the board NV_RESET or unplug the USB cable before installing or removing a CMD_DATA_OUT Carrier Board LNA_EN...
