- Page 1 LT Series Basic Evaluation Kit User's Guide...
- Page 2 Ordering Information settings or other applications implicating life-safety concerns. No Linx LT Series Transceiver Evaluation Board Technologies product is intended for use in any application without redundancies where the safety of life or property is at risk.

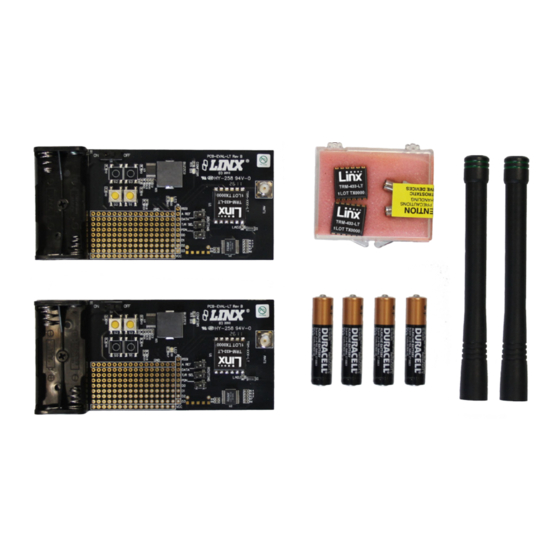

- Page 3 The Basic Evaluation Kit gives a designer all the tools necessary to correctly and legally incorporate the LT Series modules into an end product. The evaluation boards themselves serve several important functions: •...
- Page 4 Always wear an ESD wrist strap and observe proper ESD handling procedures when working with this device. Failure to observe this precaution may result in module damage or failure. Figure 3: LT Series Transceiver Evaluation Boards Board Objects 1. Battery – 3VDC 10.
- Page 5 Theory of Operation Development Using the Prototyping Area The two transceiver evaluation boards are identical, but they are populated In addition to their evaluation functions, the boards may also be used for slightly differently. The MT Series transcoder is both an encoder and a product development.
- Page 6 50-ohm restore the signal, then the maximum effective range of the link has been transmission line. See the LT Series data guide or the calculator available reached.
- Page 7 About Antennas Online Resources The choice of antennas is one of the most critical and often overlooked design considerations. The range, performance, and legality of an RF link www.linxtechnologies.com are critically dependent upon the type of antenna employed. Linx offers If you have questions regarding any Linx product and have Internet access, a variety of antenna styles that can be considered for a design.
- Page 8 TRANSCEIVER EVALUATION BOARD TRANSCEIVER EVALUATION BOARD Power Supply Section Duplex Range Test Section Transceiver Evaluation Board Schematics TRANSCEIVER EVALUATION BOARD TRANSCEIVER EVALUATION BOARD Power Supply Section Duplex Range Test Section BUZZER 100k TRANSCEIVER EVALUATION BOARD TRANSCEIVER EVALUATION BOARD + C1 Power Supply Section Duplex Range Test Section BAT-AAA...
- Page 9 Under no circumstances shall any user be conveyed any license or right to the use or ownership of such items. ©2015 Linx Technologies. All rights reserved. The stylized Linx logo, Wireless Made Simple, WiSE, CipherLinx and the stylized CL logo are trademarks of Linx Technologies.
