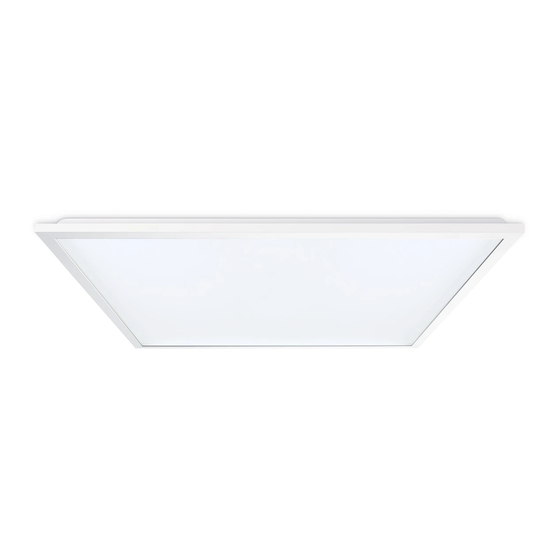

Skytile
Sense Range
®

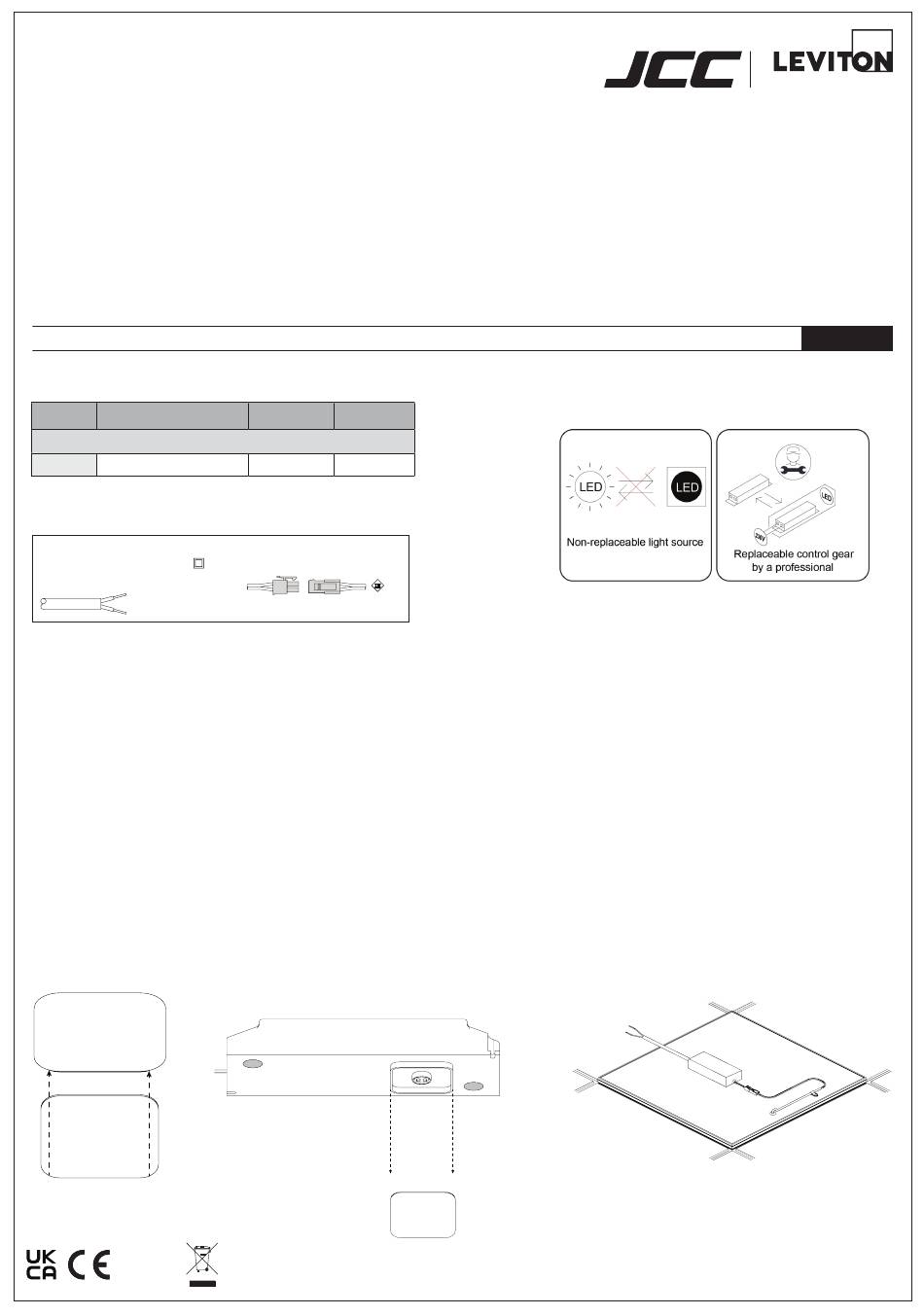

Installation instructions for Skytile

Warnings and cautions

To avoid electric shock, serious injury or property damage, isolate
power before installing, removing or servicing the product
It is recommended that luminaires are installed by a qualified
electrician and the installation complies with the local current
wiring regulations
Any broken or damaged parts should be replaced as soon as possible
JCC will not accept responsibility for claims arising from any
sub-standard installations
This luminaire is suitable for indoor use only
Read instructions and check that you have all of the tools and accessories required to complete the installation correctly. Isolate power supply
before starting the installation.
Wattage
Colour Temp
Specifications Ra: 80
30W
*3000K/4000K/5700K
*Note: separate product codes for each CCTvariant

Wiring connection

220-240V 50/60Hz / Class II
Fig. 1. Mains Input Cable
Neutral: Blue
Live: Brown

Installation Note

• Detection area is automatically reduced to 2/3rds of normal when panel is dimmed. This function is in place to prevent accidental triggering.
1. Remove the ceiling tile from the location where you wish to install the LED Panel.
2. Connect the LED driver to the mains supply. Refer to Fig.1 for details.
3. Select presence detection settings on driver before attaching to LED panel (see below for details).
4. Remove silicone bung from underside of LED panel (Fig.3).
5.  P laceLEDpanelhalfwayintotheceilingaperturethenfitthedrivertotherecessonbackofLEDpanel(Fig.4).Magnetswillsecuredriverin
position as shown in Fig.5.
6. Reconnect mains power supply.
Fig.3
Remove to
install
microwave
RoHS
Compliant
Presence Detection
®
Lumens
LpcW
3000
100
Fig.1.a. Luminaire connection
Plug & Play Connectors
Terminal block must comply to EN 60998-2-1 or EN 60998-2-2
Fig.4
Magnet
IP44 jcc
.co.uk
These products are designed for connection to a mains supply of
220-240V~ 50/60Hz
It may be necessary to upgrade your MCBs to allow for increased
inrush current
Do not cover with insulation
Do not carry out insulation tests with the product connected to
the circuit
It is recommended that the ambient room temperature should not
exceed 25°C

INSTALLATION

Fig.5
Mains
Supply
Magnet
a
company
ENGLISH
LED
Driver
LED Panel
Ceiling Grid
V2_March_22_RS
