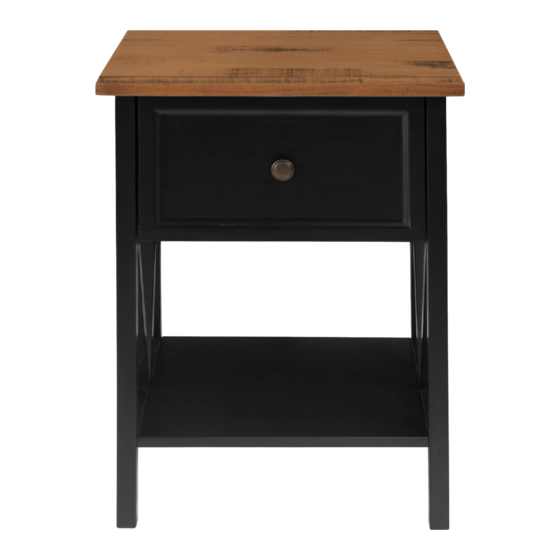

Item #: AF19NATST
Assembly Instruction
Please visit our website for the most current instructions, assembly tips report damage,
or request parts. www.walkeredison.com
Revised 09/2019
Copyright
2018, by Walker Edison Furniture Co., LLC. All rights reserved.
P .1
c
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Walker Edison AF19NATST
Summary of Contents for Walker Edison AF19NATST

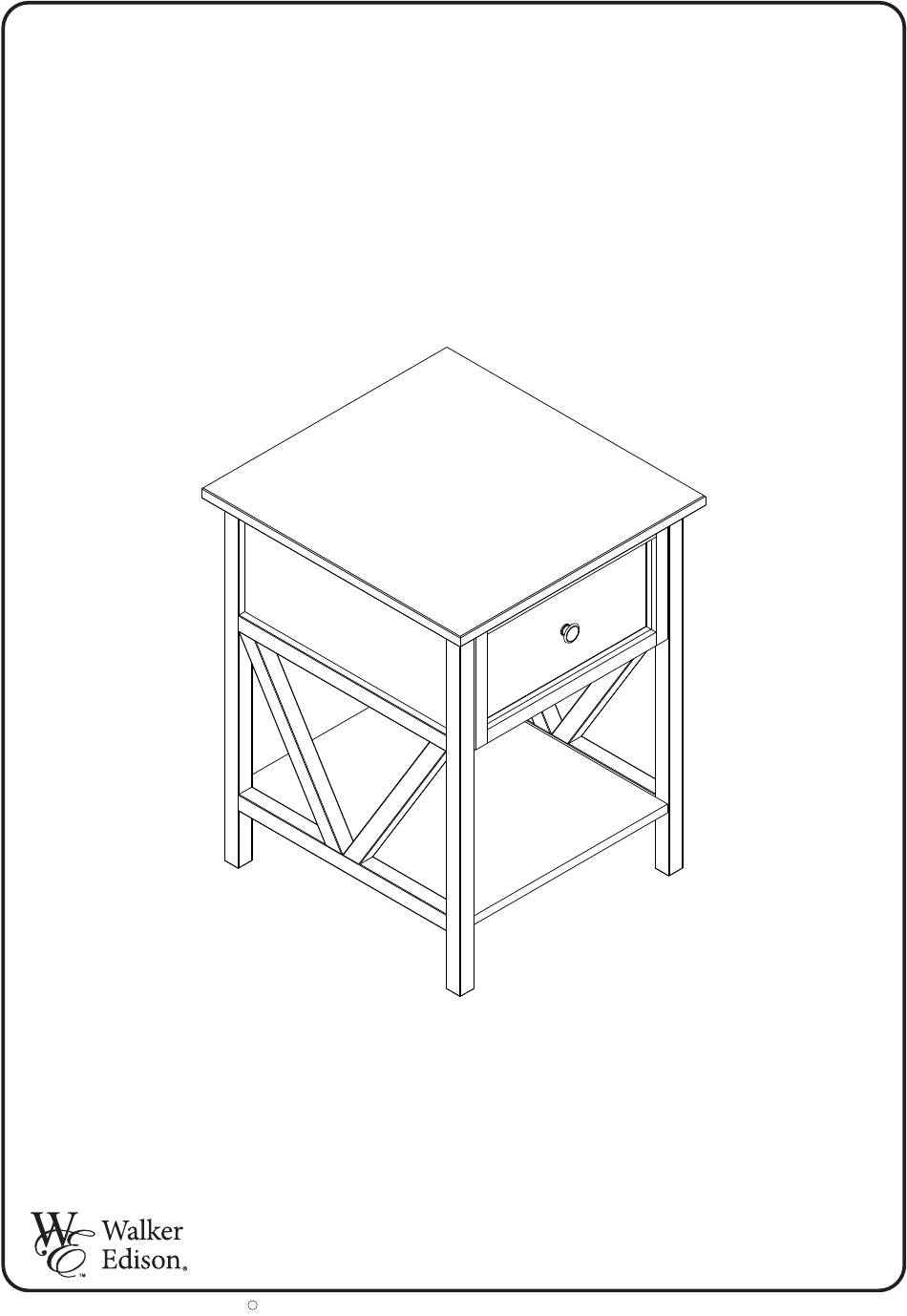

- Page 1 Item #: AF19NATST Assembly Instruction Please visit our website for the most current instructions, assembly tips report damage, or request parts. www.walkeredison.com Revised 09/2019 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P .1...
- Page 3 P .3...
- Page 4 5,5x28mm Cam Bolt 10 pcs 14x14mm Cam Lock 10 pcs M4x25mm 01 pc 4,0x3 mm 14 pcs 3,0x16 mm 01 pc 8,0x30 mm 16 pcs Knob 01 pc Drawer Limiter 01 pc...
- Page 5 Step 1 Insert Cam Bolts (A) into parts 1 and 4; Insert Wood Dowels (F) into parts 1, 2, 3, 4, 7 and 8. ( x) Insert Cam Bolts (A) into part 5; Attach Drawer Limiter (H) to part 5 using Screw (E). Step 2 ( x) P .5...
- Page 6 Step 3 Attach parts 2 and 3 to part 1 using Screw (D) on part 2 and fastening part 3 with Cam Locks (B). (2x) (3x) Attach parts 1, 2, 3 to part 4 using Screw (D) and Cam Locks (B). Step 4 (2x) (3x)
- Page 7 Step 5 Attach the body to part 5 using Cam Locks (B). (6x) Attach parts 7, 8 to part 6 using Screws (D); slide part 9 into place. Step 6 (4x)
- Page 8 Attach part 10 using Screws (D). Step 7 (4x) Attach Knob (G) using Screw (C) and place drawer into place. Step 8...
