Summary of Contents for Walker Edison AF16LWST

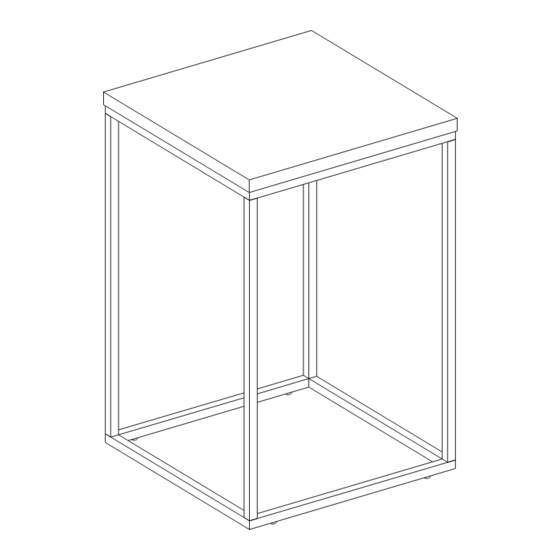

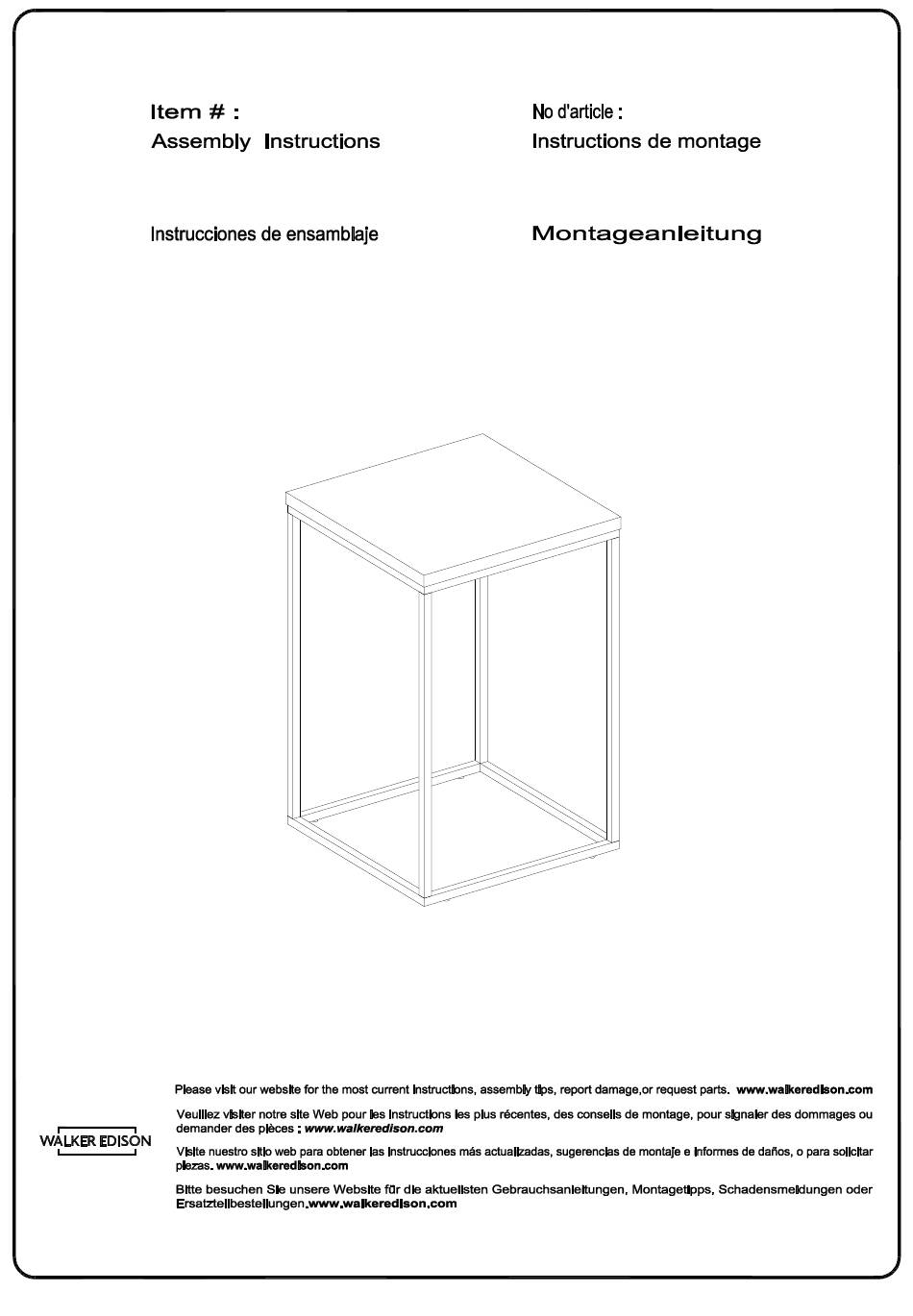

- Page 1 AF16LWST AF16LWST Ítem N.°: Artikel# : AF16LWST AF16LWST Revised 27/07/2021 (D) © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 2 Des outils électriques ne doivent pas être utilisés pour monter ce produit. Une perceuse peut être nécessaire pour fixer le produit au mur. (FR) © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 3 Holzdübel Schrauben und Bolzen. Es dürfen keine Elektrowerkzeuge zur Montage dieses Produkts verwendet werden. Möglicherweise wird ein Bohrer benötigt, um das Produkt an der Wand zu befestigen. (DE) © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 4 Lista de piezas © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 5 Boulon Perno Schraube Hex Key Clé à molette Llave hexagonal Inbusschlüssel The hardware quantities listed above are required for proper assembly.Some extra hardware may also have been included. © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 6 Fije las partes (2,4) a la parte (3) con el perno (B) y con la llave hexagonal (C). (DE) Teil (2,4) mit Schraube (B) und Inbusschlüssel (C) am Bauteil (3) befestigen. © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 7 Fije la parte (2) a la parte (1) con el perno (A) y con la llave hexagonal (C). (DE) Teil (2) mit Schraube (A) und Sechskantschlüssel (C) am Bauteil (1) befestigen. © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 8 Step 3 Final Assembly © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved.
