Summary of Contents for Walker Edison AF18NAOST

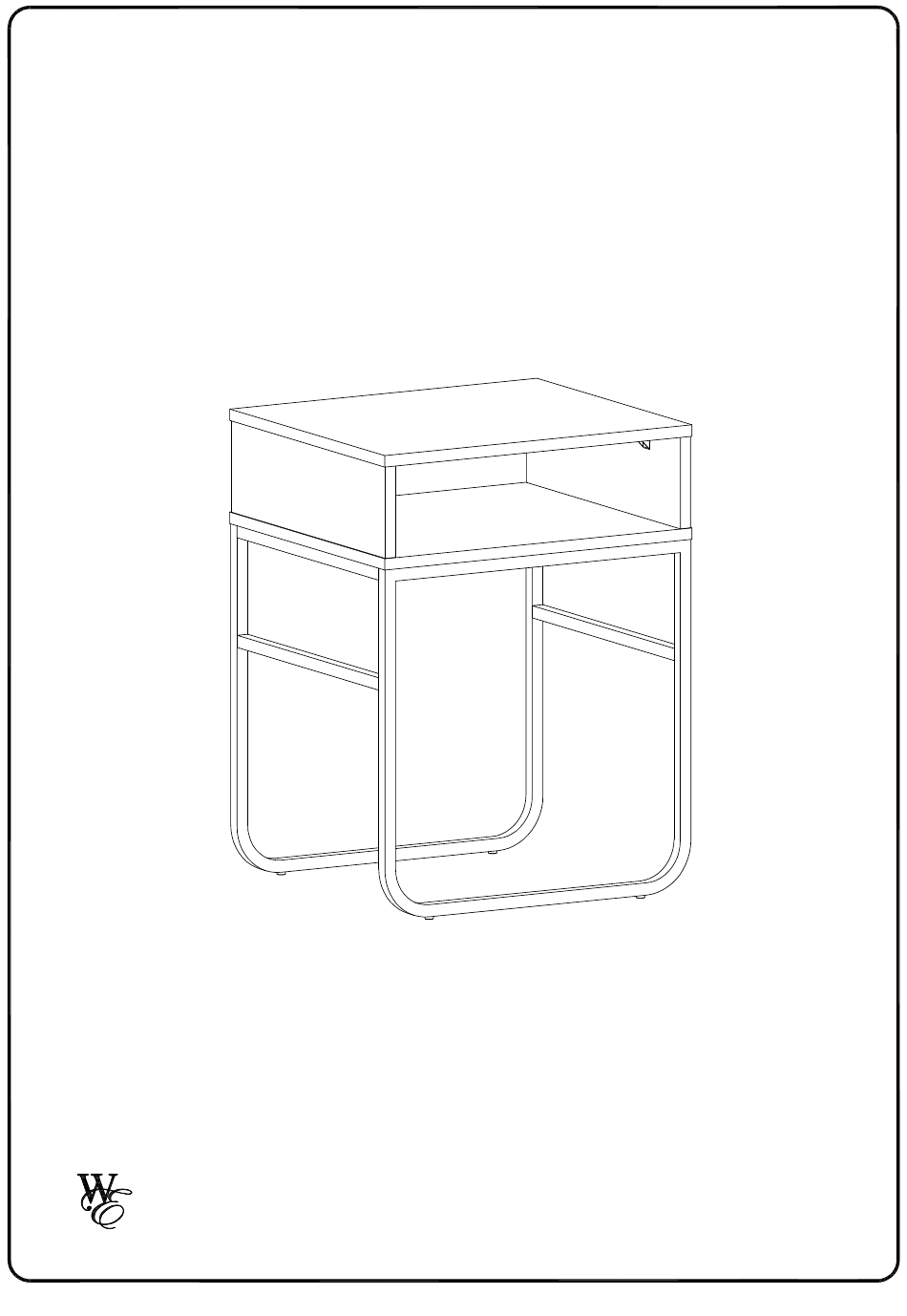

- Page 1 Item # : AF18NAOST Assembly Instructions Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Revised 25/12/2019 (I) Walker Edison ® Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. ©...
-
Page 2: General Assembly Guidelines
Wipe away excess glue immediately. A Phillips head screwdriver is required for the assembly of this product . VII. Power tools should not be used to assemble this product. Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. ©... -
Page 3: Parts List
Parts List Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. ©... -
Page 4: Hardware List
M6x27mm Bolt Hex Key bracket Glue tube Adjustable floor leveler The hardware quantities listed above are required for proper assembly. Some extra hardware may also have been included. Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. ©... - Page 5 Step 1 Insert wooden dowel (A) into part(3) as per diagram. Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 6 Step 2 Put part (3) to part (1), then using screw (B) attach bracket (G) to parts (1,3) with Philips head screwdriver as per diagram. Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 7 Step 3 Put part (3) to part (1), then using screw (B) attach bracket (G) to parts (1,3) with Philips head screwdriver as per diagram. Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 8 Step 4 Using screw (C) attach part (2) to part (3) with Philips head screwdriver as per diagram. Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 9 Step 5 Attach part (5) to part (4) as per diagram. Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 10 Step 6 Using bolt (D) attach part (5) to part (4) with Hex key (F) as per diagram. Note : Do not fully tighten all the bolts . Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. P.10 ©...
- Page 11 Step 7 Using bolt (D) attach part (5) to part (4) with Hex key (F) as per diagram. Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. P.11 ©...
- Page 12 Step 8 Using bolt (E) attach part (4) to part (2) with Hex key (F) as per diagram. Note : Fully tighten all the bolts . Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. P.12 ©...
- Page 13 Step 9 Secure adjustable floor leveler (J) into part (4) ,if necessary adjust the floor leveler at the bottom of the support leg to level the unit . Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. P.13 ©...
-
Page 14: Final Assembly
Step 10 Final Assembly Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. P.14 ©...
