ESP-LXD 2-Wire Decoder Control System
Installation & Troubleshooting Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESP-LXD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rain Bird ESP-LXD

Summary of Contents for Rain Bird ESP-LXD

  • Page 1 ESP-LXD 2-Wire Decoder Control System Installation & Troubleshooting Guide...

  • Page 2: Table Of Contents

    Control System can be found at www.rainbird.com/esplxseries Copyright © 2013 Rain Bird Corporation. All rights reserved. No part of these materials may be reproduced by any means, nor trans- lated into machine language, without written permission of the publisher. Rain Bird®, ET Manager™, IQ Central Control System™, FloWatch™, FloManager™, FloZone™, and SimulStations™...

  • Page 3: 2-Wire Decoder System Overview

    2-Wire Decoder System Overview A Rain Bird ESP-LXD 2-Wire Decoder Control System provides modular control of small to large irrigation systems. Unlike traditionally-wired controllers that power the valve solenoids directly through individual valve wires, a 2-wire decoder controller uses a 2-wire cable to interconnect decoders that in turn control the valve solenoids.

  • Page 4: Advantages Of A 2-Wire Decoder System

    (usually a maximum of 48 stations) and required power drops. Designed for Protection from the Elements The field components of a Rain Bird ESP-LXD 2-Wire Decoder System are designed for underground burial, so they are all completely weatherproof. This makes a 2-wire decoder system a perfect application for a site that can be affected by flooding.

  • Page 5: 2-Wire Path Layout And Connections

    2-Wire Path Layout and Connections The design of a Rain Bird ESP-LXD 2-Wire Decoder Controller system requires careful consideration to the layout of the decoders on the 2-Wire path. Since a decoder system powers the electric solenoids through the 2-wire path, the 2-wire path must be able to provide enough voltage to power the solenoids.
  • Page 6 Ohms per Km (per Wire Size conductor) Miles Miles 2.5 mm2 7.5 0hms/Km 3.00 1.86 12.00 7.46 14 AWG 2.58 0hms/1000' 2.66 1.65 10.63 6.61 12 AWG 1.62 0hms/1000' 4.23 2.63 16.93 10.52 ESP-LXD 2-Wire Decoder Control System Installation & Troubleshooting Guide...

  • Page 7: Valve Types

     BPE/BPES Series  NOTE: The ESP-LXD 2-Wire Decoder Controller will not work with Rain Bird Residential Valves including DV, JTV, HV, ASVF Series Valves. The ESP-LXD 2-Wire Decoder Controller is also compatible with Rain Bird Golf Valve-in-Head Rotors and Rain Bird Commercial PSR-Series Pump Start Relays.

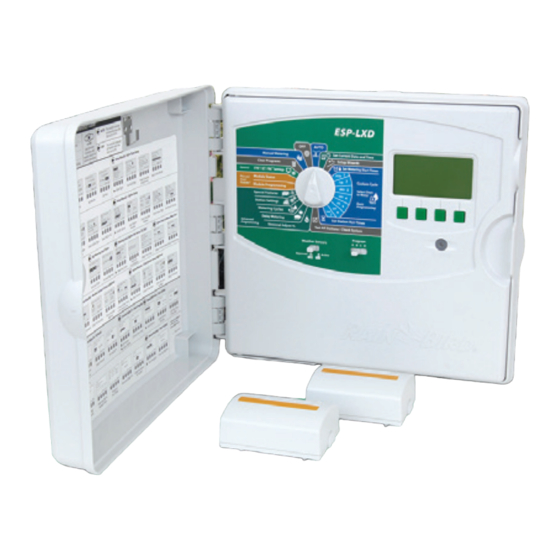

  • Page 8: Esp-Lxd 2-Wire Decoder Controller

    ESP-LXD 2-Wire Decoder Controller ESP-LXD 2-Wire Decoder Controller The ESP-LXD has a standard capacity of 50 stations and is expandable to 125 or 200 stations increments using the ESPLXD-SM75 75-station modules. ESPLXD-M50 2-Wire Decoder Module Included with every ESP-LXD is the ESPLXD-M50 2-Wire Decoder and Flow Smart Module, a “double- wide”...

  • Page 9: Rain Bird Limr Controller Remote

    Up to five (5) flow sensors can be installed on the 2-Wire path. SD-210 Sensor Decoder are required for each sensor. Rain Bird FS-Series Flow Sensors are available in ½” to 4” PVC Tee, 1” to 2” Brass Tee, and Brass and Stainless Steel Insert Style models.

  • Page 10: Rain Bird Weather Sensors

    Notes: 1. Operates only with switch-type normally closed sensors. 2. Not compatible with tipping rain-can sensors. 3. Compatible with Rain Bird Anemometer Wind Speed Sensor when used with a Rain Bird PT-3002 Pulse Transmitter. RSDBEX Wired Rain Shutoff Sensor, Bracket Mount ...

  • Page 11: Rain Bird Esp-Lxd Series Controller Enclosures

    Stainless Steel, locking pedestal for LXMM-SS enclosure, NEMA 3R  Metal Cabinet & Pedestal The ESP-LXD controller standard plastic case field installs into the LXMM or LXMM-SS enclosure for wall-mount applications. Add the LXMM-PED or LXMM-PEDSS pedestal for free-standing controller applications.

  • Page 12: Fd-Series Decoders

    FD-202 FD-401 FD-601 Note: When activating valves and pump start relays that are not manufactured by Rain Bird, there may be exceptions to the maximum number of solenoids per address that can be energized. Contact Rain Bird for more details..
  • Page 13 FD-101 One address – controlling one valve Example Address # 12345 FD-102 One address – controlling two valves simultaneously Example Address # 12346 Notes: ESP-LXD 2-Wire Decoder Control System Installation & Troubleshooting Guide...
  • Page 14 FD-202 Two addresses – each controlling two valves simultaneously Example Address # 12347 Example Address # 12348 Notes: ESP-LXD 2-Wire Decoder Control System Installation & Troubleshooting Guide...
  • Page 15 FD-401 Four addresses – each controlling one valve Example Address # 12349 Example Address # 12350 Example Address # 12351 Example Address # 12352 Notes: ESP-LXD 2-Wire Decoder Control System Installation & Troubleshooting Guide...
  • Page 16 FD-601 – Six addresses – each controlling one valve Example Address # 12360 Example Address # 12361 Example Address # 12362 Example Address # 12363 Example Address # 12364 Example Address # 12365 ESP-LXD 2-Wire Decoder Control System Installation & Troubleshooting Guide...
  • Page 17 Examples: 1. The ESP-LXD 2-Wire Decoder Controller has been installed at a site in the U.S. where the incoming power is 120 VAC @ 60 Hz. When the controller is powered, it will automatically be configured to operate FD-TURF (Grey) Field Decoders.

  • Page 18: Splices

    Lightning Surge Protector – LSP-1 (Yellow) The ESP-LXD controller and the 2-wire path must be properly surge protected and grounded. Doing so can help prevent damage to the controller and irrigation system and also significantly reduce troubleshooting, repair time and expense. Failure to do so could result in failure of your controller and voiding the warranty.

  • Page 19: Grounding & Surge Protection

    Grounding & Surge Protection The ESP-LXD 2-Wire Decoder Controller and the 2-wire path must be properly surge protected and grounded. Doing so can help prevent damage to the controller and irrigation system and also significantly reduce troubleshooting, repair time and expense.
  • Page 20 LSP-1 Line Surge Protector The LSP-1 Line Surge Protector provides surge protection for the ESP-LXD controller and the 2-wire path and should be spliced into the 2-wire path in three distinct areas: 1. ESP-LXD 2-Wire Decoder Controller – The LSP-1 Line Surge Protector provides surge protection for the ESP-LXD controller against electrical surges originating from each 2-Wire Path utilized.

  • Page 21: Flow & Station Management

    Flow & Station Management The ESP-LXD 2-Wire Decoder Controller can manage up to five (5) water points of connection, five (5) Master Valves, and five (5) FloZones through a variety of hydraulic configurations using the following concepts and/or features: Master Valve – A valve or pump start relay that controls (turns on/off ) a point of connection ...
  • Page 22 FloZones The following example designs represent the capabilities of the ESP-LXD controller to manage the FloZones of the irrigation system: ESP-LXD 2-Wire Decoder Control System Installation & Troubleshooting Guide...
  • Page 23 1.1 - 66.7 FS350B 12 - 45000* 48 - 168000* 2.7 - 10200* FS350SS 12 - 45000* 48 - 168000* 2.7 - 10200* * Depends on pipe size and material Notes: ESP-LXD 2-Wire Decoder Control System Installation & Troubleshooting Guide...
  • Page 24 (3) to five (5) PSI differential is overcome and flow will automatically flow through both master valves and flow sensors. Configure both master valves and flow sensors on the same FloZone.  FS200P FS100B ESP-LXD 2-Wire Decoder Control System Installation & Troubleshooting Guide...
  • Page 25 Master Valves The ESP-LXD Controller can support up to five (5) Master Valves via FD-Series Decoders configured as a Master Valve. Each is programmable by station. Both Normally-Closed and Normally-Open Master Valves are supported. Normally-Closed Master Valve (default) – The valve is powered to open and opens each time a ...

  • Page 26: Rain Bird Esp-Lxd 2-Wire Decoder Controller Installation Checklist

       Station Capacity    ESPLXD-SM75 Expansion Module * 50 Stations are provided with the ESP-LXD Decoder Controller       Master Valves Note: Quantity of Master Valves and Flow Sensors should be the same.
  • Page 27 3) Termination of each Wire Path. Maxi Cable & Splices   Layout Star Branch   Maxi Cable – Quantity _______ 14 AWG 12 AWG 3M DBR/Y-6 Splices Kits – Quantity _______ ESP-LXD 2-Wire Decoder Control System Installation & Troubleshooting Guide...

  • Page 28: Esp-Lxd 2-Wire Decoder Control System Diagnostics

    The ESP-LXD Controller includes multiple diagnostic functions to help you troubleshoot and pinpoint the source of a problem. Refer to section C / Systems Diagnostics in the ESP-LXD Controller Installation, Programming & Operation Manual for step-by-step instructions to use the diagnostic features.
  • Page 29 If the controller is still in Short Finding Mode, the problem is between this location and the controller. Keep disconnecting segments of the 2-wire path until you isolate the problem. ESP-LXD 2-Wire Decoder Control System Installation & Troubleshooting Guide...
  • Page 30 Note any discrepancy in the readings. You must know the number and type of each decoder downstream to know what the mA reading up should be reading (see Calculating the total system mA draw section for more information). ESP-LXD 2-Wire Decoder Control System Installation & Troubleshooting Guide...

  • Page 31: Esp-Lxd 2-Wire Decoder Control System Troubleshooting

    ESP-LXD 2-Wire Decoder Control System Troubleshooting Consult the ESP-LXD Controller Installation, Programming & Operation Guide (shipped with the controller or available on-line) for detailed information on the built-in diagnostic features of the controller. Section A / Auto – The controller displays the current status of the system along with any alarm ...
  • Page 32 MV Water Window located under the Manual Watering dial position. Configure window open and close times, days of the week, MV(s) you want open, and the expected additional flow rate to allow for the manual watering. ESP-LXD 2-Wire Decoder Control System Installation & Troubleshooting Guide...
  • Page 33 When incorrect cable/splices become decoders after a heavy submerged it can create leakage to ground. Double- irrigation or rainfall event. jacketed 14-2UF Maxi 2-Wire Cable and 3M DBR/Y-6 Wire Splice Kits are required. ESP-LXD 2-Wire Decoder Control System Installation & Troubleshooting Guide...
  • Page 34 2-wire path. • Sensor black (-) wire to the SD-210 Sensor Decoder black wire. Flow sensor output pulse rate The ESP-LXD Controller requires a minimum input of 2 is not compatible with the pulses per 10 seconds for the smallest station flow rate. ESP-LXD Controller. Pulse rates of less than 2 pulses per 10 seconds will not be registered.
  • Page 35 Turn Dial to Setup Wizard and select Valve Types. Valve types configure the decoder inrush amps and duration for opening a valve solenoid. The ESP-LXD Valve Types are preconfigured for Rain Bird commercial valve models. Information for configuring Valve Types to work with other valves can be found in the controller manual.
  • Page 36 Check to make sure the ribbon cable is securely connected or damaged. connected to both the controller backplane and the front panel. If the cable has broken wires or connectors, replace it. ESP-LXD 2-Wire Decoder Control System Installation & Troubleshooting Guide...
  • Page 37 ESP-LXD’s with date codes of December 2010 or earlier up from a different have a different firmware vintage than ESP-LXD’s with controller. a date code of January 2011 or later. Contact Rain Bird Technical Services or Global Support Plan for assistance. Weather Weather sensor is not This is by design.
  • Page 38 The Intelligent Use of Water. ™ LEADERSHIP • EDUCATION • PARTNERSHIPS • PRODUCTS At Rain Bird, we believe it is our responsibility to develop products and technologies that use water e ciently. Our commitment also extends to education, training and services for our industry and our communities.
