- Page 1 v2.0 Central Control System ™ NCC Configurator Instructions December 3, 2010...
-
Page 2: Table Of Contents
Contents What is the NCC Configurator? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 What you will need to use the NCC Configurator . -
Page 3: What Is The Ncc Configurator
What is the NCC Configurator? The NCC Configurator Utility is required to configure the • NCC Cartridge IQ Port communication settings for IQ Direct and Server Satellite Controllers utilizing the following communication options: NCC-RS External Modem − NCC-GP GPRS/Cellular − NCC-EN Ethernet −... -
Page 4: What You Will Need To Use The Ncc Configurator
What you will need… Computer (IQ desktop or a separate laptop) • USB-to-Serial Adapter (required only if your computer does not • have a Serial Port) recommended model IOGEAR GUC232A − http://www . i ogear . c om/product/GUC232A/ IQ Software CD v2 . 2 or newer •... -
Page 5: Install The Ncc Configurator On Your Computer
Rain Bird NCC Configurator ● Follow the prompts on the screen to install the IQ Software ● When the IQ Software is installed double-click on the Rain Bird NCC Configurator icon on your computer Desktop to launch the Utility NCC Configurator Instructions... -
Page 6: Connect The Ncc Configurator Communication Cables
Connect the communication cables ● Connect the Y-Cable to the NCC Cartridge CM Port ● Install the NCC Cartridge into the Controller ● ● NCC Configurator Instructions... - Page 7 Connect the communication cables ● Connect one end of the IQ Null-Modem Cable to the DB-9 connector on the Y-Cable ● Connect the other end of the IQ Null-Modem Cable to the computer Serial Port (or USB-to-Serial Adapter) ● ● NCC Configurator Instructions...
-
Page 8: Set The Ncc Cartridge To Ncc Configurator Mode
Set the NCC to NCC Configurator Mode ● Turn the IQ Satellite dial to the IQ Settings position ● Use the down arrow button to highlight NCC Configurator from the menu then press Next ● After confirming the communication cables are installed ●... -
Page 9: Using The Ncc Configurator
Using the NCC Configurator ● Launch the NCC Configurator Utility on the computer ● ● ● Click the drop-down arrow to select the computer COM Port number to which the Null Modem Cable is connected ● Click on the Read Configuration button to retrieve the current communication configuration settings from the NCC Cartridge ●... -
Page 10: Ncc-Ph Phone Cartridge Configuration
NCC-PH Configuration ● The NCC-PH Phone Cartridge does not require configuration with the NCC Configurator ● For IQ Software initiated communication, enter the phone number for the IQ Satellite in the IQ Software . The IQ Satellite will answer the call from the IQ Software automatically . ●... -
Page 11: Ncc-Gp Gprs/Cellular Cartridge Configuration
NCC-GP Configuration IP Address: The address is retrieved automatically from the • installed SIM Card Port Number: Default Port is 50005 • Access Point: This information is provided by your GPRS/ • Cellular Service Provider (AT&T Access Point = rainbird . c om) User Name: The user name for your GPRS/Cellular Service •... -

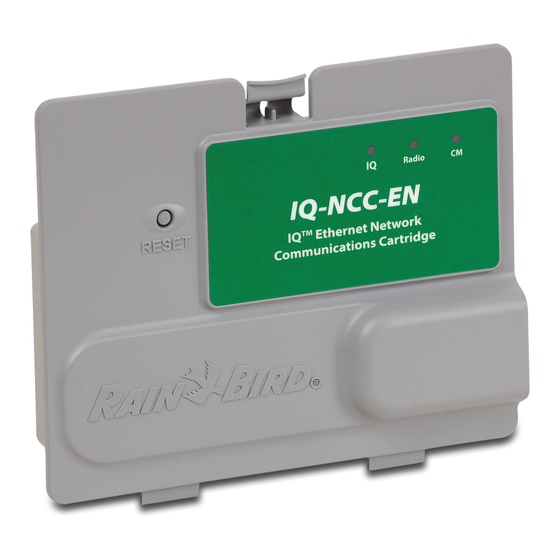

Page 12: Ncc-En Ethernet Cartridge Configuration
NCC-EN Configuration IP Address: The network address assigned to this cartridge • (assigned by your Network Administrator) Port Number: Default Port is 50005 • Subnet Mask: The Subnet Mask address (provided by your • Network Administrator) Default Gateway: The Default Gateway Address (provided by •... -
Page 13: Ncc-Wf Wifi Cartridge Configuration
NCC-WF Configuration SSID: Network Identification (provided by your Network • Administrator) Encryption Method: WPA or WPA2 (set by your Network • Administrator) Encryption Passkey: Passkey (provided by your Network • Administrator) IP Address: The Network Address assigned to this cartridge •... -
Page 14: Ncc-Rs Rs-232 Cartridge Configuration
NCC-RS Configuration NCC-RS Configuration not required for Direct-Connect Cable or • IQRSSRADIO communication mode NCC-RS Configuration may be for External Modem • communication mode Initialization String: Required for some external modems • (consult the external modem manual for required settings) Hang Up String: Required for some external modems (consult •... -
Page 15: Ncc Configurator History Log
NCC Configuration History Click on the History link on the bottom of the NCC Configurator • dialog box to retrieve a log of the previously sent NCC Cartridge Configuration settings Log is labeled with the Configuration Name entered in − specific NCC Cartridge configuration screen Each log is date and time stamped −... - Page 16 The Intelligent Use of Water ™ (800) RAINBIRD (1-800-724-6247) 800-458-3005 (U . S . and Canada) www.rainbird.com (U . S . and Canada) Registered Trademark of Rain Bird Corporation ® Dxxxxx © 2010 Rain Bird Corporation 11/10 P/N xxxxxx...
