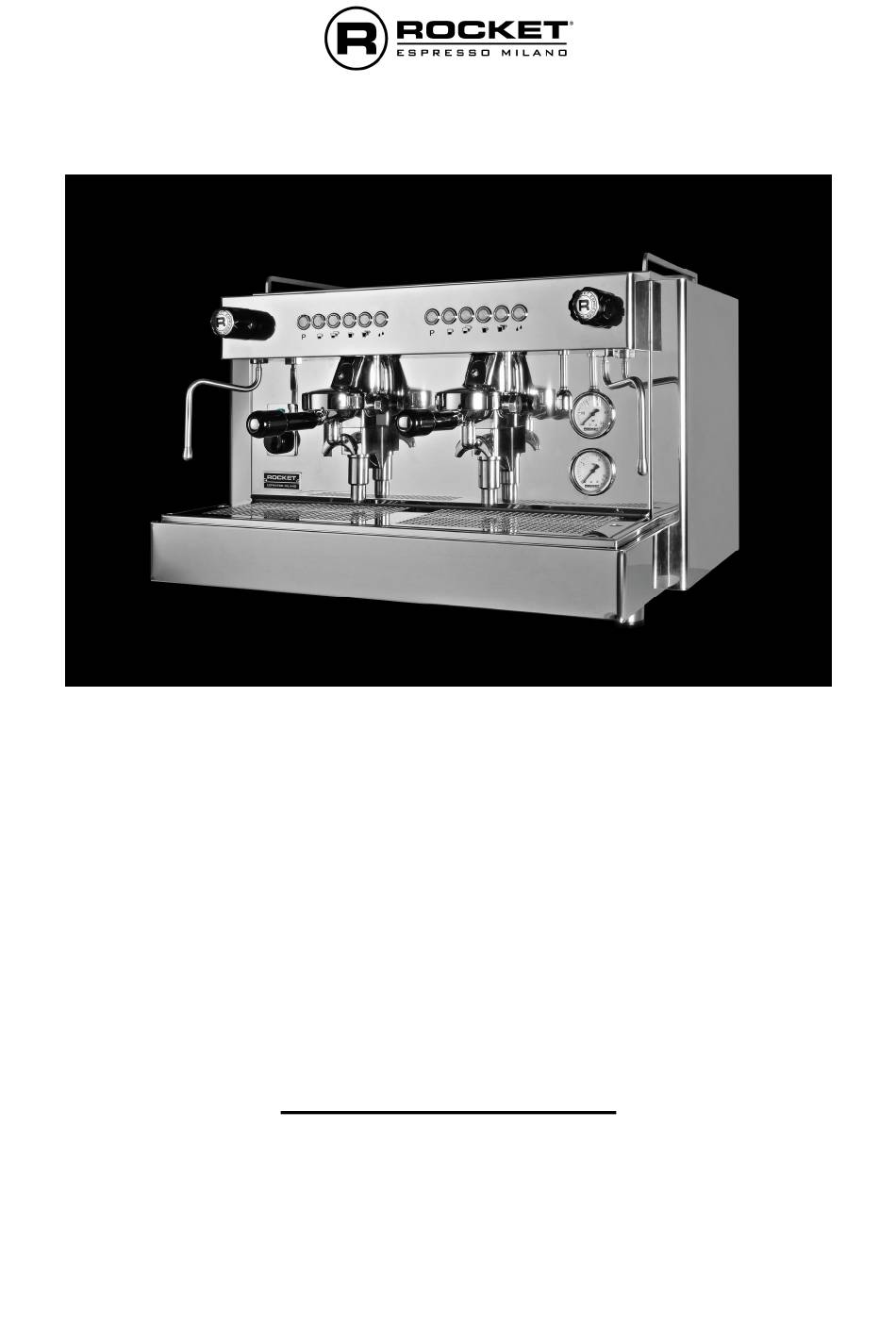

User Instructions Rocket RE A and RE S
Espresso Machines
RE A: 2 – 3 – 4 brewing heads
RE S: 2 – 3 – 4 brewing heads
From serial # C1507.....
_____________________________________________________________________________________________
© Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice..
Page 1
Advertisement
Table of Contents
Related Manuals for Rocket Espresso RE A2
Summary of Contents for Rocket Espresso RE A2
- Page 1 RE A: 2 – 3 – 4 brewing heads RE S: 2 – 3 – 4 brewing heads From serial # C1507….. _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 1...
-
Page 2: Table Of Contents
Declaration of CE conformity Information for the authorized service technician: RE A: Electrical diagram (2 Gr. + 3 Gr. machines) RE A: Hydraulic circuit _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 2... -
Page 3: General Data
3 two cup filter handles with 3 two cup metal filter baskets Four group machines only: 4 two cup filter handles with 4 two cup metal filter baskets _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 3... -
Page 4: Introduction
It is the responsibility of the user to ensure that the location of the machine is hygienic, and that its continued safe operation can be guaranteed. _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 4... -
Page 5: Important Safeguards
19. Never use the machine with wet hands and / or with bare feet. 20. Never operate the machine without water. _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 5... - Page 6 Cleaning and user maintenance shall not be made by children without supervision. 35. Save these instructions. _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 6...
-
Page 7: Installation
13. This equipment must be installed on a flat, level and stable surface. The minimum height of this surface is 1025 mm 14. Handle the machine with care. _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 7... -
Page 8: Technical Data
535 mm – 21.06 in. 4 group 1.220 mm – 48.03 in 583 mm – 22.95 in. 535 mm – 21.06 in. _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 8... -
Page 9: Installation Diagram
11.42 in. 290 mm 11.42 in. 115 mm 4.53 in. 115 mm 4.53 in. 100 mm 3.94 in. 100 mm 3.94 in. _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 9... -
Page 10: Description Of External Components Re A Series (Automatic Portion Control)
Coffee brewing head (“group”). Caution: can become hot and cause burns Display Control lamp “machine on” (when lightening) Sight glass boiler water level control _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 10... -
Page 11: Description Of External Components Re S (Semi-Automatic Portion Control)
Hot water valve handle. Caution: can become hot and cause burns Control lamp “machine on” (when lightening) Sight glass boiler water level control _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 11... -
Page 12: Start-Up
. Your machine is now ready to work. Operation of Rocket Espresso RE A series (automatic portion control) Fig. 2 Touchpad _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 12... -
Page 13: Operation Re A Series With Automatic Portion Control
(automatic portion control). 9. Remove the filter handle (Fig.1-10) from the machine and empty used coffee grounds. _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 13... -
Page 14: Dispensing Hot Water
When the programmed quantity of hot water has been reached, the dispensing will stop automatically. The dispensing can be stopped manually anytime pressing again the hot water key. _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 14... -
Page 15: Operation Re S Series With Semi-Automatic Portion Control
9. Remove the filter handle (Fig. 1B-10) from the machine and empty used coffee grounds. _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 15... -
Page 16: Dispensing Hot Water
Hot water will be dispensed into the pitcher. When the requested quantity of hot water has been dispensed, close the hot water valve again. _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 16... -
Page 17: Dispensing Steam To Froth Or Heat Up Liquids
Do not let the milk bake onto the steam wand. Clogged wands and steam valves can be expensive to repair or to replace. _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 17... -
Page 18: Turning Off The Machine
Throughout the day: Wipe the screens inside your group head with a damp clean towel to remove excess grounds. Caution: hot metal surfaces! _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 18... - Page 19 Once you have the filter basket out, clean both the filter basket and the internal surface of the handle with a pot scourer until both surfaces are clean from the dark coffee oils. _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 19...
-
Page 20: Disassembling / Dismantling Of The Machine
Position the drip tray (Fig. 1 or Fig. 1 B – Pos. 9). Store the machine in a safe, dry and clean place. _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 20... -
Page 21: Programming Automatic Coffee Portions
Now you have three options to leave the portion-programming mode: Depress key A three times. The leds of all keys will light up (no led is flashing). _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 21... -
Page 22: Programming Hot Water Portions
Please repeat this procedure for the hot water product keys of all groups. Please note that hot water portions are time controlled and are depending from boiler pressure. _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 22... -
Page 23: Programming By The Authorized Technician
When you are done, please depress “A” to confirm and switch to the next setting. _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 23... - Page 24 The setting of the pre-infusion (1.0) will blink. Please do the setting using keys B and C and confirm depressing A. _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 24...
- Page 25 1.0 Bar (Typical factory setting) 0,15 10 (Please do not change these settings) PID setting 2°C (Please do not change this setting). _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 25...
- Page 26 Please proceed scrolling the menu (using “A” key) to the setting you wish to correct. When done, depress key A repetitiously until the display reads “OFF”. Depress key “D” to move to machine’s normal operation. _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 26...
-
Page 27: Declaration Of Ce Conformity
Via Curiel 13 20060 Liscate (Milano, Italy) IT05846260965 This is to confirm that the Rocket Espresso R8V – R8 – RE A – RE S – Boxer series of espresso machines had been manufactured according to the following standards: 2004/108/EC... - Page 28 RE A espresso machines: Electrical diagram of 2 nd 3 group machines _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 28...
- Page 29 Pressure transducer Boiler level probe Boiler safety probe Touch keys group 1 Touch keys group 2 Touch keys group 3 Display _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 29...
- Page 30 RE A espresso machines: Hydraulic circuit _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 30...
- Page 31 Heat exchanger injection pipe Group solenoid valve Solenoid valve hot water tempering Drain tray Boiler drain valve Pump pressure gauge Boiler pressure gauge _____________________________________________________________________________________________ © Rocket Espresso Ltd. RE series User Manual Ed. 07.2015. Specifications subject to change without notice.. Page 31...
