Removing The Housing From
Your Rocket Machine
Introduction
This instructional will cover removing the housing from your Rocket machine. This should

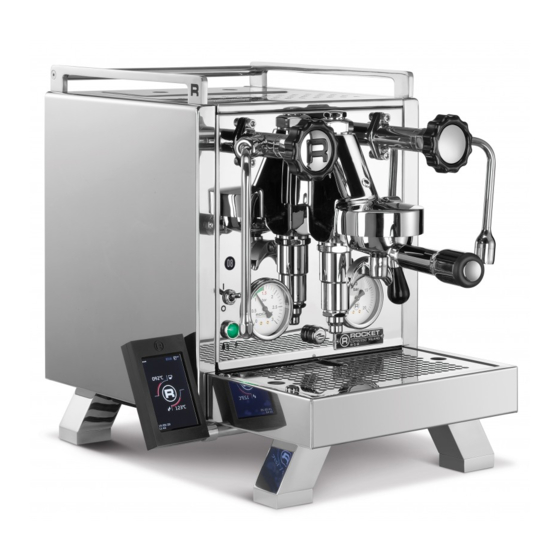

cover any Rocket machine you have, however, we use our Rocket R58 in this example.
Tools:
7mm wrench
Small Phillips head screwdriver
Advertisement
Table of Contents
Related Manuals for Rocket Espresso R58
Summary of Contents for Rocket Espresso R58
- Page 1 Your Rocket Machine Introduction This instructional will cover removing the housing from your Rocket machine. This should cover any Rocket machine you have, however, we use our Rocket R58 in this example. Tools: 7mm wrench Small Phillips head screwdriver ...
- Page 2 Step 1: The first thing you want to do is remove the reservoir cover, and remove the reservoir itself. In the 4 corners around the reservoir, there are the small Phillips head screws, remove them using your Phillips head screwdriver. ...
- Page 3 Step 2: Next, you will be undoing the screws on the bottom. You can either loosen these or completely remove them. I typically choose to loosen them. If you choose to lay your machine on the side as well, I would recommend putting a towel down so you do not scratch or damage the sides.
- Page 4 Step 3: Once you’ve gotten those removed, you will need to remove the inverse screws. These screws face inward, toward the inside of the machine. There are 2 in the back left and right corners, and 2 in the front left or right corners. They will most likely require small micro turns to undo them.
- Page 5 The two in the front: www.wholelattelove.com ...
- Page 6 Step 4: Once you’ve gotten these loosened, you should be able to take the panels off of your machine. www.wholelattelove.com ...
