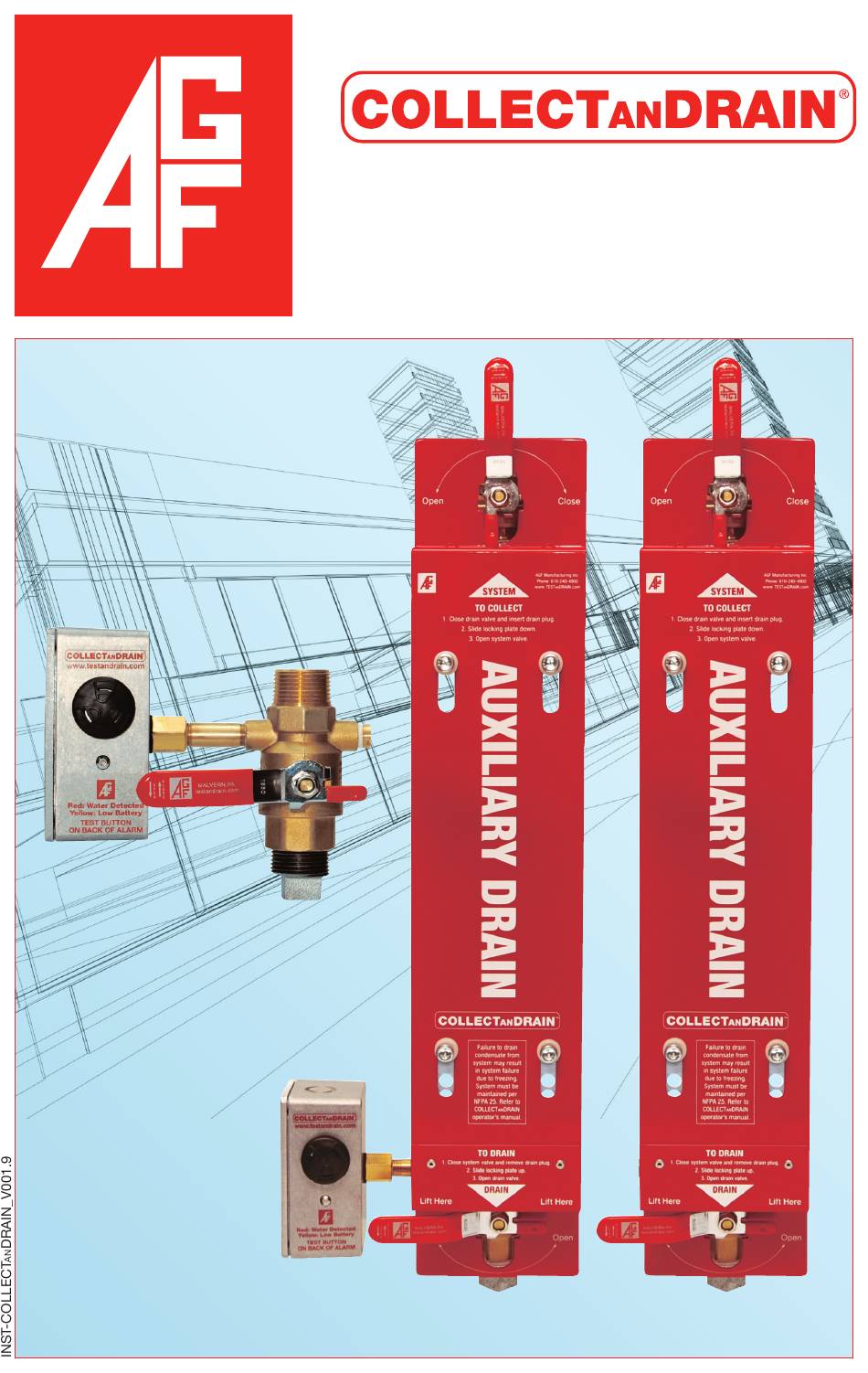

- Page 1 AGF Manufacturing Inc. Model 5100A, 5200A, and 5100ALBV Owner’s Manual Model 5100ALBV Model 5100A Model 5200A...
- Page 2 Model 5100A, 5200A and 5100ALBV Owner’s Manual COLLECT DRAIN Anti-Trip Auxiliary Drains for ™ Dry Pipe and Pre-Action Fire Sprinkler Systems Supply Side (Upper) Ball Valve Condensate Nipple Anti-Trip Plate Water Detection Anti-Tamper Lock Alarm Test Button Drain Side (Lower) (On Back Side) Ball Valve Plug...
- Page 3 Slide the Anti-Trip Plate to its lowest position. Open the supply valve (upper) by making sure the valve handle is in line with the collection assembly. If equipped, install the anti-tamper lock. AGF Manufacturing Inc. • Phone: 610-240-4900 • Fax: 610-240-4906 • www.agfmanufacturing.com...
- Page 4 Model 5100A, 5200A and 5100ALBV Owner’s Manual To Drain Condensate per NFPA 25 (2011 edition) A.13.4.4.3.2, 13.4.4.3.2* Close the supply valve (upper) and remove plug. Slide the Anti-Trip Plate to its highest position and open the drain valve (lower) to drain the accumulated water. Once the water has been drained, close the drain valve (lower) and slide the Anti-Trip Plate to its lowest position.
- Page 5 LED. Image 2 Place 9V battery under the circuit board as shown in Image 3. Install cover with the four screws. Image 3 AGF Manufacturing Inc. • Phone: 610-240-4900 • Fax: 610-240-4906 • www.agfmanufacturing.com...
- Page 6 Model 5100A, 5200A and 5100ALBV Owner’s Manual External Hardwire Operation: Remove four screws on the alarm box and take off the cover. Voltage For external power operation, place the Jumper on the rear two pins as shown in Image 4 (Fig. B). VOLTAGE VOLTAGE JUMPER...
- Page 7 Note: Please call for instructions on how to locally silence the audible alert if directly wired to a Fire Control Panel or BMS. Thank You For Using AGF Products! AGF Manufacturing Inc. • Phone: 610-240-4900 • Fax: 610-240-4906 • www.agfmanufacturing.com...
- Page 8 LED warning light. The Model 5400A also features Fire Control Panel notification capabilities. Visit www.collectandrain.com for more information. AGF Manufacturing Inc. 100 Quaker Lane • Malvern, PA 19355 Phone: 610-240-4900 Fax: 610-240-4906...
