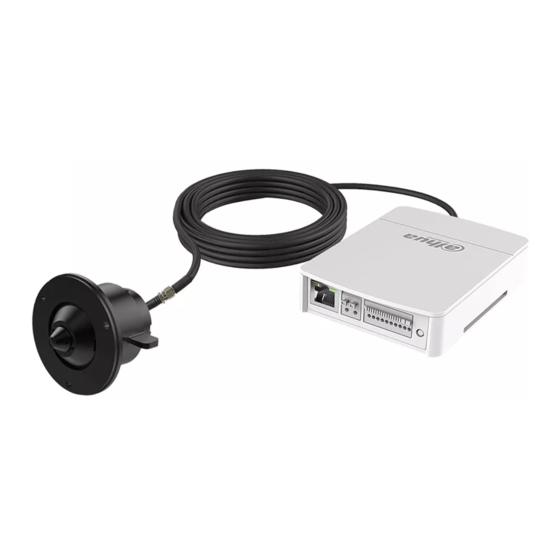

- Page 1 Pinhole Network Camera Quick Start Guide ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.1...
-
Page 2: Foreword
Quick Start Guide Foreword General This manual introduces the installation and operation of the network camera. Read carefully before using the device, and keep the manual safe for future reference. Safety Instructions The following signal words might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided,... - Page 3 Quick Start Guide errors in the print. If there is any doubt or dispute, we reserve the right of final explanation. ● Upgrade the reader software or try other mainstream reader software if the manual (in PDF format) cannot be opened. ●...
-
Page 4: Important Safeguards And Warnings
Quick Start Guide Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, and comply with the guidelines when using it. Transportation Requirements ●... - Page 5 Quick Start Guide against lightning. For outdoor scenarios, strictly comply with the lightning protection regulations. ● Ground the function earthing portion of the device to improve its reliability (certain models are not equipped with earthing holes). The device is a class I electrical appliance. Make sure that the power supply of the device is connected to a power socket with protective earthing.
- Page 6 Quick Start Guide ● Use the accessories suggested by the manufacturer. Installation and maintenance must be performed by qualified professionals. ● Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the lens.
-
Page 7: Table Of Contents
Quick Start Guide Table of Contents Foreword .........................................I Important Safeguards and Warnings ............................. III 1 Introduction......................................1 1.1 Cable ......................................... 1 1.2 Connecting Alarm Input/Output ............................3 2 Network Configuration ..................................5 2.1 Initializing the Camera ................................5 2.2 Changing the Device IP Address ............................6 2.3 Logging in to Web Page ................................. -
Page 8: Introduction
Quick Start Guide 1 Introduction 1.1 Cable Waterproof all the cable joints with insulating tape and waterproof tape to avoid water damage and prevent short circuits from occurring. For details, see the FAQ manual. Figure 1-1 Front panel (1-channel) Figure 1-2 Front panel (2-channel) - Page 9 Quick Start Guide Figure 1-3 Back panel Table 1-1 Port information Port Name Description Audio output Connects to speakers to output audio signal. Audio input Connects to sound pickups to receive audio signal. Install SD card for data storage. ● When installing SD card, make sure that the SD card is not in read-only state.
-
Page 10: Connecting Alarm Input/Output
Quick Start Guide Table 1-2 Alarm information Port Port Name Description G is the ground terminal of RS-232 serial port; TX is G (adjacent to TX)/TX/RX the sending terminal of RS-232 serial port; RX is the receiving terminal of RS-232 serial port. IN1/IN2 Alarm input port, receives on-off signal of external alarm source. - Page 11 Quick Start Guide Figure 1-5 Alarm output Step 3 Log in to the web page, and configure the alarm input and alarm output in alarm settings. ● The alarm input on the web page corresponds with the alarm input end of the I/O port. There will be high level and low level alarm signals generated by the alarm input device when an alarm occurs.
-
Page 12: Network Configuration
Quick Start Guide 2 Network Configuration Device initialization and IP setting can be finished with the ConfigTool or on web page. For more information, see the Web Operation Manual. ● Device initialization is available on select models, and it is required at first-time use and after device is being reset. -
Page 13: Changing The Device Ip Address
Quick Start Guide Step 3 Select Auto-check for updates, and then Click OK to initialize the device. If configuration failed, click to see more information. Step 4 Click Finish. 2.2 Changing the Device IP Address ● You can change the IP address of one or more devices at a time. This section is based on changing IP addresses in batches. -
Page 14: Installation
Quick Start Guide 3 Installation 3.1 Packing List ● Tools required for the installation, such as the electric drill, are not included in the package. ● The operation manual and information are on the disk or the QR code. Figure 3-1 Packing list 3.2 Dimensions Figure 3-2 Back-end device (unit: mm [inch]) - Page 15 Quick Start Guide Figure 3-3 Model L1 (unit: mm [inch]) Figure 3-4 Model L3(unit: mm [inch]) Figure 3-5 Model L4 (unit: mm [inch])
-
Page 16: Installing The Camera
Quick Start Guide Figure 3-6 Model L5-3.6 mm (unit: mm [inch]) Figure 3-7 Model L5-2.8 mm (unit: mm [inch]) 3.3 Installing the Camera The camera adopts a detachable design, and the lens and the back-end device should be installed... - Page 17 Quick Start Guide separately. After finishing installation, connect the lens and the back-end device, and then power on the camera. ● When installing or removing the lens, make sure that the power is cut off; otherwise, device abnormality or damage could occur. ●...
- Page 18 Quick Start Guide Figure 3-9 Lens installation (model L1)
- Page 19 Quick Start Guide Figure 3-10 Lens installation (model L3)
- Page 20 Quick Start Guide Figure 3-11 Lens installation (model L4 and model L5)
- Page 21 Quick Start Guide...
