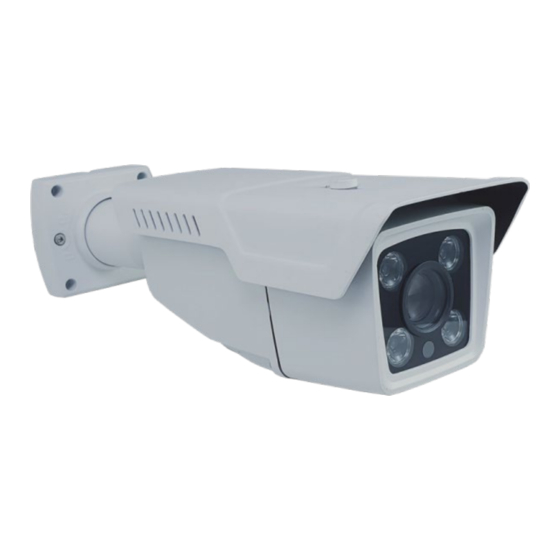

- Page 1 LPRHD2M-550M Setup Guide...
- Page 2 1. Once the LPR is connected and powered on, it will display in the grid and may be relatively blurry: 2. Double-click on the camera view to make it the only view on screen: OPTIVIEW, INC. 5211 FAIRMONT STREET • JACKSONVILLE, FL 32207 904.805.1581 • WWW.OPTIVIEWUSA.COM...
- Page 3 3. Right-click to bring up the list menu and click “PTZ Control”: You will then see the following controls appear on screen: OPTIVIEW, INC. 5211 FAIRMONT STREET • JACKSONVILLE, FL 32207 904.805.1581 • WWW.OPTIVIEWUSA.COM...
- Page 4 Now that you have the view set, we need to disable the Auto- Focus feature so the view will stay stable. 5. On the PTZ Controls, click: “Iris +” one time “Right Arrow” 3 times “Down Arrow” 2 times: OPTIVIEW, INC. 5211 FAIRMONT STREET • JACKSONVILLE, FL 32207 904.805.1581 • WWW.OPTIVIEWUSA.COM...
- Page 5 6. The following menu should appear on screen: 7. Use the PTZ Control arrows to navigate down to #9, or “AF”. Use the “Iris +” as the select button to enter the menu for AF: OPTIVIEW, INC. 5211 FAIRMONT STREET • JACKSONVILLE, FL 32207 904.805.1581 • WWW.OPTIVIEWUSA.COM...
- Page 6 8. Use the Right Arrow to change AF Mode to Off: 9. Navigate down to #8 or “Return” and use “Iris +” return back to the previous menu: OPTIVIEW, INC. 5211 FAIRMONT STREET • JACKSONVILLE, FL 32207 904.805.1581 • WWW.OPTIVIEWUSA.COM...
- Page 7 10. Navigate to #10 or “Exit” and use “Iris +” to select Exit and save your settings: 11. Right click to make your PTZ Controls disappear. Your LPR view is now set: OPTIVIEW, INC. 5211 FAIRMONT STREET • JACKSONVILLE, FL 32207 904.805.1581 • WWW.OPTIVIEWUSA.COM...
