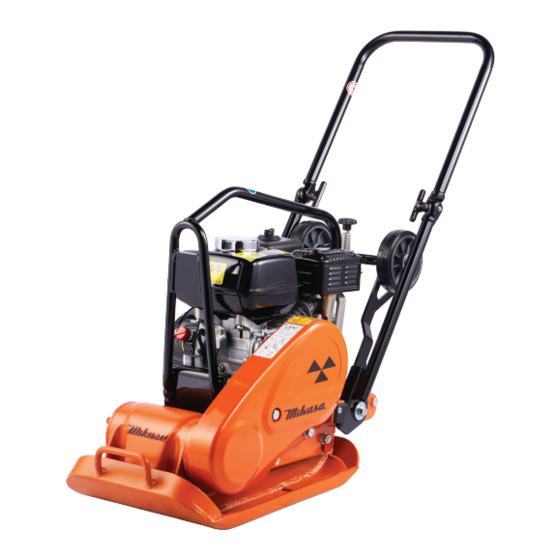

Mikasa MVC-40H Service Manual

Mikasa MVC-40H Service Manual

Forward plate compactor
Hide thumbs Also See for MVC-40H:

Advertisement

Quick Links

SERVICE MANUAL
MIKASA FORWARD PLATE COMPACTOR
MVC-40H, MVC-F60H, MVC-F80H,
MVC-T90H, MVC-T100D
Version 1.0 (May 2022)
FOR MORE INFORMATION
EXCLUSIVE TO
CONTACT US ON
1300 353 986
OR VISIT
flextool.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVC-40H and is the answer not in the manual?

Questions and answers

Summary of Contents for Mikasa MVC-40H

  • Page 1 SERVICE MANUAL MIKASA FORWARD PLATE COMPACTOR MVC-40H, MVC-F60H, MVC-F80H, MVC-T90H, MVC-T100D Version 1.0 (May 2022) FOR MORE INFORMATION EXCLUSIVE TO CONTACT US ON 1300 353 986 OR VISIT flextool.com.au...
  • Page 2 M V C PLATE COMPACTOR SERVICE MANUAL...
  • Page 3: Table Of Contents

    Table of contents INTRODUCTION ..................WARNING SIGNS ..................CAUTIONS FOR MAINTENANCE TO SECURE SAFETY ....... Work Site Clothes And Protective Cautions During Refuelinglothes And Protective Prevention Of Burn And The Accident Of Getting Caught Tools And Equipment Use Of Genuine Parts And Appropriate Oil And V-belt Tightening Torque Of Bolts And Nuts Disposal Of Waste Material TOOL ......................
  • Page 4: Introduction

    To improve the performance and quality of this machine, the change might be made in this machine without notice. If ● you have any questions, please contact with our distributor. For parts list, Mikasa WEB parts list is available at our homepage (http://www.mikasas.com/).
  • Page 5: Clothes And Protective

    3.2 Clothes And Protective CAUTION ! To work safely, wear work clothes of appropriate size, and use suitable protective gear ● such as helmet and safety shoes. The work clothes that do not fit the body size might result in unpredicted injury because the clothes easily get caught by rotating part of the machine.
  • Page 6: Tightening Torque Of Bolts And Nuts

    3.7 Tightening Torque Of Bolts And Nuts WARNING ! Tighten bolts and nuts with the tightening torque specified in this maintenance manual. ● Over tightening torque and lack of tightening torque not only affect the machine life, but also might occur unexpected accident. 3.8 Disposal Of Waste Material CAUTION !...
  • Page 7: Tool

    4.TOOLS 1. Wrench Offset wrench/Socket wrench/Adjustable wrench 2. Hexagonal wrench 3. Plier 4. External snap ring plier/Internal snap ring plier(bent type can be also used) 5. Screwdriver, flat and cross ー + 6. Metal and plastic hammers 7. Pulley puller 8.
  • Page 8: Inspection Before Operation

    5.INSPECTION BEFORE OPERATION DANGER ! Conduct inspection while the engine is stopped.If you get caught in the rotating parts, you may suffer serious damage. Conduct inspection after making this ma- Upper level chine level and checking that the body does not move. Lower level Oil gauge (refil needed)
  • Page 9 Pour water into the water tank for sprinkling work. Note: Pour water only. If you should put liquids other than water, the resin, tank cap seal, etc. may deteriorate or swell, leading to leakage or damage. The water tank can be removed by pulling it upward.
  • Page 10: Cautions Before Maintenance Work

    6.CAUTIONS BEFORE MAINTENANCE WORK Disassembly and assembly of this machine, with inspection and change of vibrator oil included, should be done on a horizontal surface area. Before disassembly and assembly, understand well the normal assembly condition so that you will not make assembly error. If oil seal, gasket, packing, O-ring or lock washer is disassembled, replace it with a new one each time.
  • Page 11: Disassembly And Assembly Of Vibrator

    In case, replace the bearing, SAE10W-30 to Vibrator. please use C3 or C4 type. Model Vibrator oil quantity Please take care the oil seal orientation, MVC-40H / 50H 300cc damage and deformation. MVC-F60H / F70H / F80H 140cc Apply grease on Oil seal lip and Bearing MVC-T90H 200cc insertion part.
  • Page 12: Regular Check And Adjustment

    8.REGULAR CHECK AND ADJUSTMENT 8.1 Inspection And Maintenance Schedule Table Check frequency Check parts Check items Oils Daily Appearance Flaw, deformation (before starting) Fuel tank Leakage Fuel system Leakage Engine oil Leakage, oil level, dirt Engine oil Shock absorber Crack, damage, wear Vibrator oil Leakage Engine oil...
  • Page 13: Checking/Changing V-Belt And Clutch

    8.4 Checking/Changing V-belt and Clutch 8.5 Inspection and Change of Vibrator Oil Make this machine level, and remove the oil CAUTION level plug off the vibrator. Check that vibra- ! tor oil is provided up to the mouth level. The When the vibration weakens during op- ●...
  • Page 14: Troubleshooting

    9.TROUBLESHOOTING 9.1 Engine Bridging Spark Plug (1) Starting problems Carbon accumulated on Spark Plug Short circuit due to insulation problems of Electricity reaches Spark Plug to High Voltage Cable Inappropriate gap of Spark Plug Fuel is supplied, but Spark Plug does not ignite Short circuit of Stop Switch Electricity does not...
  • Page 15: Main Body

    9.2 Main Body Insufficient engine output and inappropriate high speed set revolution Slipping of clutch Low travel speed and Slipping of V-belt vibration weak Too much vibrator oil Failure inside vibrator...
  • Page 16 MIKASA SANGYO CO., LTD. 1-4-3,Kanda-Sarugakucho,Chiyoda-ku,Tokyo,101-0064,Japan PRINTED IN JAPAN...
  • Page 17 Design and technical specifications may be subject to changes. © This publication is copyright. All rights are reserved. Flextool is a registered trade mark of Parchem Construction Supplies Pty Ltd. Mikasa is a registered trade mark of Mikasa Sangyo Co. Ltd, used under licence.
