Mikasa MVC-40GB Instruction Manual

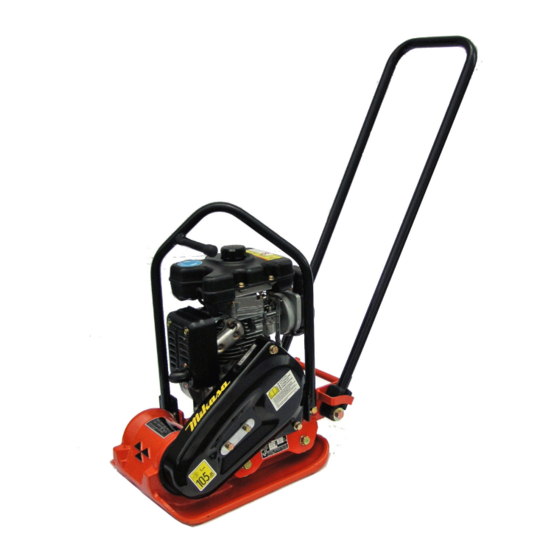

Plate compactor
Hide thumbs
Table of Contents

Advertisement

Quick Links

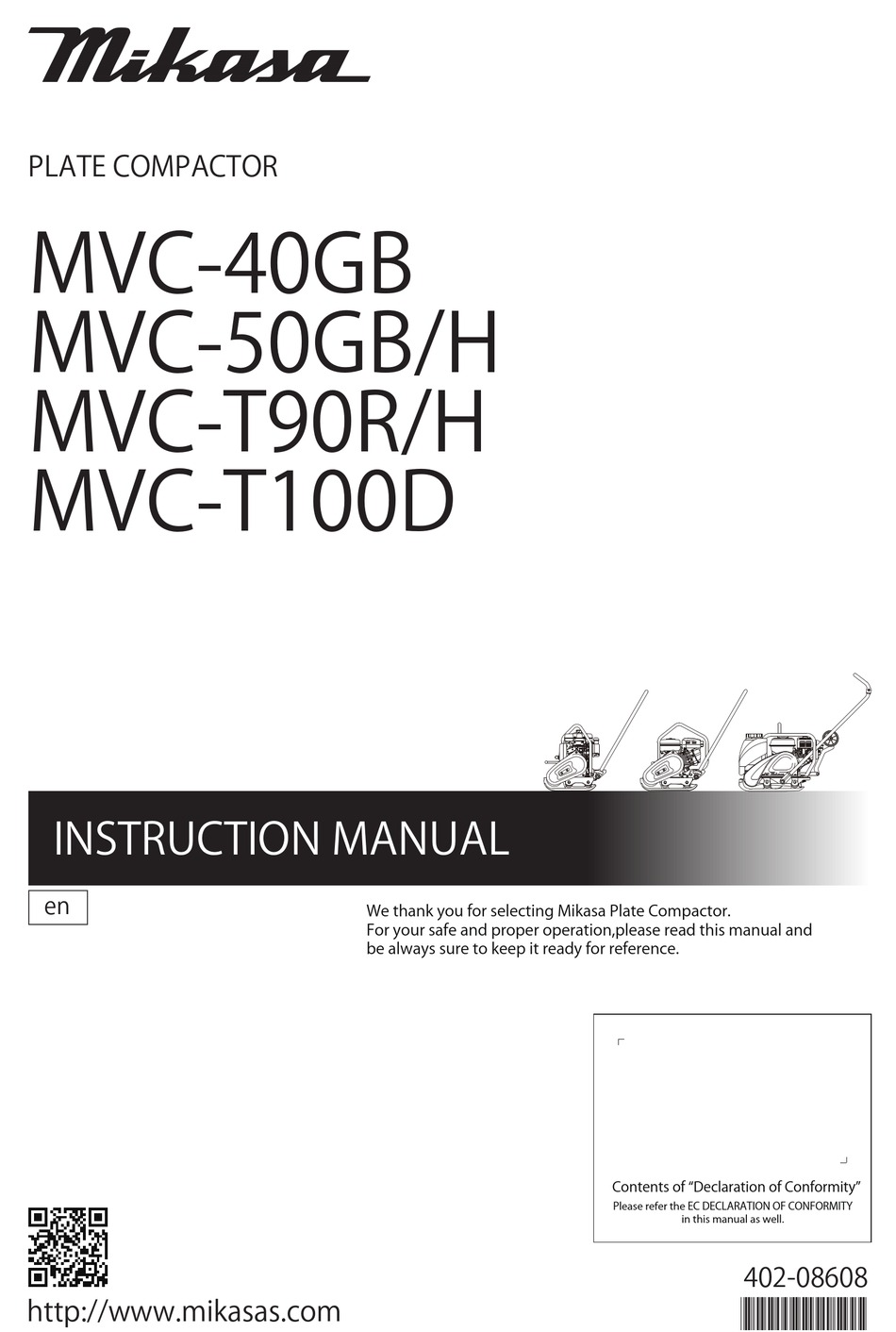

PLATE COMPACTOR
MVC-40GB
MVC-50GB/H
MVC-T90R/H
MVC-T100D
INSTRUCTION MANUAL
en
http://www.mikasas.com
We thank you for selecting Mikasa Plate Compactor.
For your safe and proper operation,please read this manual and
be always sure to keep it ready for reference.
Contents of "Declaration of Conformity"
Please refer the EC DECLARATION OF CONFORMITY
in this manual as well.
402-08608
*402-08608*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVC-40GB and is the answer not in the manual?

Questions and answers

Related Manuals for Mikasa MVC-40GB

Summary of Contents for Mikasa MVC-40GB

  • Page 1 PLATE COMPACTOR MVC-40GB MVC-50GB/H MVC-T90R/H MVC-T100D INSTRUCTION MANUAL We thank you for selecting Mikasa Plate Compactor. For your safe and proper operation,please read this manual and be always sure to keep it ready for reference. Contents of “Declaration of Conformity” Please refer the EC DECLARATION OF CONFORMITY in this manual as well. 402-08608 http://www.mikasas.com *402-08608*...
  • Page 2 2) Manufacturer’s name and address. 1-4-3, Kanda-Sarugakucho, Chiyoda-ku, Tokyo, Japan Takahiro Kishino, engineer 3) Name and address of the person who keeps the R&D Division, Mikasa Sangyo Co., Ltd. technical documentation. Shiraoka-city, Saitama, Japan 4) Type: Vibratory Plates 5) model...
  • Page 3 MVC-40GB MVC-50GB MVC-50H 5) model 731003, 731004, 731102, 731103, 731108, 731110, 731005, 731006, 731104, 731106, 731111, 731112, 731007 731107 731113 6) Equipment item number For serial number, please refer it on front page. 7) Serial number 8) power source Robin EH09...

  • Page 4: Table Of Contents

    TABLE of CONTENTS Preface Applications, Warnings, Structure and Power Transmission Warning Symbols Safety Precautions 4. 1 General Precautions 4. 2 Refueling Precautions 4. 3 Location and Ventilation Precautions 4. 4 Precautions Before Starting 4. 5 Precautions During Work 4. 6 Lifting Precautions 4.

  • Page 5: Preface

    For inquiries about repair parts, parts lists, service manuals, and repairs, please contact the store where you purchased ● the product, our sales office, or the Mikasa Parts Service Center. For parts lists, please visit our homepage at: http://www.mikasas.com/ where you can access Mikasa WEB parts lists.

  • Page 6: Warning Symbols

    Before inspection and maintenance work, stop the engine, and do your work on ● a flat surface area. If a cell is attached, remove the battery wiring before your work. Mikasa does not accept any responsibility for accidents caused by remodeling or ● rework done on the machine. 4.2 Refueling Precautions...

  • Page 7: Location And Ventilation Precautions

    4.3 Location and Ventilation Precautions DANGER Do not run the machine in an unventilated location, such as indoors or inside a ！ ● tunnel. The exhaust gas from the engine contains toxic gases such as carbon monoxide and is very hazardous. Do not operate the machine near open flames.

  • Page 8: Transportation And Storage Precautions

    4.7 Transportation and Storage Precautions Stop the engine during transportation. ● WARNING ！ Transport after the engine and the machine are cooled down. ● Always drain the fuel before transporting. ● Securely fix the machine to prevent it from moving or falling during ●...

  • Page 9: Labeling Position

    DECAL,DO NOT LIFTING NPA-1473 9209-00090 DEAL,LIFTING POSITION NPA-1474 9209-00090 DEAL,CAUTION ICONS Warnig labels NPA-1479 9209-00090 DECAL,ENGINE HANDLING /GS Starting, and stopping NPA-1480 9201-09530 DECAL,MIKASA(125MM)YELLOW NP-953 9201-00920 DECAL, MIKASAMARK NP-92 50GB/ WATER TANK 9201-05070 DECAL,MIKASA MARK 125MM NP-507 50GB/ WATER TANK...
  • Page 10 ※ The illustration is shown for model, "MVC-T90" NPA-1474 VAS HANDLE LABEL PART No. PART NAME Q’ TY REMARK PLATE, SERIAL NO. / EU 9201-01410 DECAL, MIKASA MARK 120X60 WATER TANK NP-141 9201-05070 DECAL,MIKASA MARK 125MM WATER TANK NP-507 9209-00090 DEAL,LIFTING POSITION NPA-1474...

  • Page 11: Description Of Symbols Used Warning Labels

    4-10. Descriptions of symbols used on warning labels P/N 9209-00090 DECAL, SET /MVC, MCD /EXP,EU (NPA-1479, 1473, 1474) Do not use. (For cutters) NPA-1480 ⑨ NPA-1473 NPA-1479 ① ② ③ ⑩ ④ ⑤ ⑥ ⑦ ⑧ NPA-1474 Do not use. (For cutters) Danger: poisonous exhaust gas ①...

  • Page 12: Specifications

    5.Specifications Machine Specifications MVC-40GB MVC-50GB MVC-50H Model Subaru Subaru Honda Engine model EH09-2F EX13 GX120 Type of handle STANDARD FOLDING FOLDING STANDARD FOLDING Overall Length Without water tank With water tank Overall Width ← ← Overall Height Plate Size (W x L) 290 x 420 ←...
  • Page 13 Machine Specifications MVC-T90R MVC-T90E MVC-T90H MVC-T100D Model Subaru Subaru Honda Yanmar Engine model EY20-3D EX17 GX160 L48N Overall Length 1100 (1050) 1100 (1050) 1100 (1050) 1100 (1050) Overall Width Overall Height 825(950) 825(950) 825(950) 825(950) Plate Size (W x L) 500 x 525 500 x 525 500 x 525...

  • Page 14: Appearance

    6. Appearance 6.1 Overall Dimensions MVC-40GB 855 ( Folding Handle: 865) MVC-50GB MVC-50H ※ The illustration is shown for model, "MVC-50GB" 865 ( Folding Handle: 880) ● Dimensions may change without notice.
  • Page 15 MVC-T90 / T100D ※ The illustration is shown for model, "MVC-T90R" 1,100 1,050 (VAS) ● VAS = Vibration Absorbing System ● Dimensions may change without notice.

  • Page 16: Control Unit Positions And Names

    6.2 Control Unit Positions and Names MVC-40GB Subaru EH-09 ENGINE 1. Starter Grip 2. Engine ON/OFF Switch 3. Choke Lever 4. Speed Control Lever 5. Fuel Cock MVC-50GB 6. Handle Bar MVC-50H 7. Folding Handle ※ The Photo is shown for model, "MVC-50GB"...
  • Page 17 MVC-T90 / T100D ※ The Photo is shown for model, "MVC-T90" Water Tank Cap Fuel Tank Cap Lifting Hook Handle Bar Gasoline Engine Belt Cover Vibrating Plate Vibration Case Water Tube (Sprinkler) Water Shut-Off Valve Water Tank Fuel Tank Engine ON/OFF Switch Recoil Starter (pullrope) Air Cleaner Spark Plug...

  • Page 18: Inspection Before Operation

    Refer to the "Regular Check and Adjustments" ★ on page 17 for the inspection points before start- Recommended oil quantity ing operation. MVC-40GB/50GB/50H : 300cc MVC-T90/T100D 200cc Clean each part of the machine well to maintain dirt and dust-free condition. Pay special attention to the soil...
  • Page 19 How To Use Revolving Type Moving Cart (MVC-T90,T100D) For removal and reattachment of wheel, select a flat and hard surface area. From Stoped Condition To Carrying Condition Disengage the hook at the end of lock wire from the lock holder. Fig.6 Pull up the lock knob to revolve the axle and let the wheel touch the ground.

  • Page 20: Operation

    After the lock pin stopper touches the lock pin, the lock pin With the lock wire coming at the back side of the axle, put moves up, and once it fits into the stopper hole, it moves the hook at the end on the lock holder hole. down automatically.
  • Page 21 When the engine has started, return the speed control Speed control lever ( HONDA: GX160) lever to the low speed position immediately. Listening to the sound of the explosion, return the choke lever gradu- Speed control lever ally to the fully open condition. (Fig.17-1, 17-2, 17-3 ) Choke (SUBARU: EH09-2F, EY20-3D) Fig.14-3...

  • Page 22: Operation

    Push down the decompression lever and release. Speed control lever (HONDA: GX160) (Fig.20) Speed control lever Decompression Lever Fig.22-3 Speed control Lever (YANMAR: L48N) Fig.20 Grasp the starter grip and slowly pull it out. The resistance becomes the hardest at a certain position, corresponding to the compression point.

  • Page 23: Stopping Machine

    9. Stopping Machine When you finish the work and stop the engine, return the Fuel cock ( SUBARU : EX13) speed control lever to the low speed position, and keep the engine running at low speed for 3-5minutes. When the temperature of the engine has decreased, stop the engine.

  • Page 24: Transportation

    10 Transportation WARNING ！ Make sure there is no breakage of guard frame and anti-vibration rubber nor loosened or missing bolts. ● Always stop the engine when lifting. ● Use an intact wire rope without any deformation with sufficient strength. ●...

  • Page 25: Regular Check And Adjustments

    12. Regular Check and Adjustments 12.1 Inspection and Maintenance Schedule Table Check frequency Check parts Check items Oils Appearance Daily Flaw, deformation (before starting) Leakage Fuel tank Leakage Fuel system Engine oil Engine oil Leakage, oil level, dirt Crack, damage, wear Shock absorber Leakage Engine oil...

  • Page 26: Changing Engine Oil

    Changing Engine Oil 12.2 Perform the first engine oil change after 20 hours of operation, then change at every 100 hours. Cleaning Air Cleaner 12.3 When the air cleaner element becomes dirty, the engine does not start smoothly, and sufficient output cannot be obtained.

  • Page 27: Troubleshooting

    13. Troubleshooting 1. Gasoline Engine (1) Starting problem Bridging Spark Plug Carbon accumulated on Spark Plug Electricity reaches Short circuit due to insulation problems of to High Voltage Cable Spark Plug Fuel is supplied, but Inappropriate gap of Spark Plug Spark Plug does not ignite Electricity does not...
  • Page 28 MIKASA SANGYO CO., LTD. PRINTED IN VIETNAM 1-4-3,Kanda-Sarugakucho,Chiyoda-ku,Tokyo,101-0064,Japan...

This manual is also suitable for:

Mvc-50gbMvc-50hMvc-t90rMvc-t90hMvc-t100dMvc-40h
