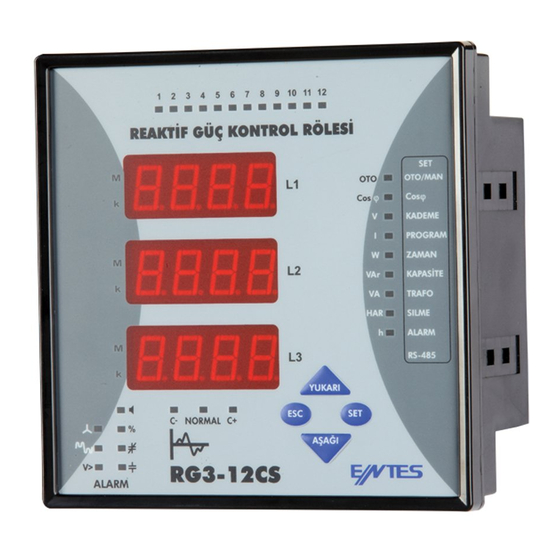

POWER FACTOR CONTROLLER
RG3-12C/CS
Precautions for Safe Use and Installation
1.1
General Information ............................................................................................................................................2
1.2
Front Panel .................................................................................................................................................................2
1.3
Rear Panel ..............................................................................................................................................................4
2.1
Commissioning of RG3-12C/CS ..........................................................................................................................5
2.2
Capacitor Sequence Process ...........................................................................................................................................5
3.1
Manual Operation, Automatic Capacitor Recognition Mode and Automatic Connection Recognition Mode...........5
3.2
3.3
Last Capacitor Step Number Setting..................................................................................................................................7
3.4
Selection of Proper Switching Sequence.........................................................................................................................8
3.5
Switching on&off Time for Capacitor Steps and Discharge Time Settings.................................................................8
3.6
Power Value and Connection Type Settings for Capacitors ........................................................................................10
3.7
Current and Voltage Transformer Ratio Settings .......................................................................................................12
3.8
Reset Settings .....................................................................................................................................................14
3.9
Alarm Settings .....................................................................................................................................................15
3.10 Fan Relay Settings .....................................................................................................................................................21
3.11 Resetting the Energy Counters and Entering the Energy Values..................................................................................23
3.12 Computer Communication Settings .................................................................................................................................24
3.13 Password Activation and Change Settings .............................................................................................................26
Currents, Active Powers, Total Active Powers ...........................................................................................................29
Reactive Powers, Total Reactive Powers, Apparent Powers, Total Apparent Powers......................................30
Temperature, Error Codes ................................................................................................................................................31
Error Messages ................................................................................................................................................32
Capacitor Calculation Table ............................................................................................................................................38
Technical Features ..............................................................................................................................................39
Menu Map .............................................................................................................................................................
SUMMARY
Value Setting ....................................................................................................................7
, Voltages ................................................................................................................................28
1
1
2
5
5
28
32
33
Advertisement
Table of Contents
Related Manuals for Entes RG3-12C
Summary of Contents for Entes RG3-12C
-
Page 1: Table Of Contents
Important Note for System Connection 1. INTRODUCTION General Information ............................2 Front Panel .................................2 Rear Panel ................................4 2. INSTALLATION OF RG3-12C/CS Commissioning of RG3-12C/CS ..........................5 Capacitor Sequence Process ............................5 3. SETTINGS Manual Operation, Automatic Capacitor Recognition Mode and Automatic Connection Recognition Mode...5... -
Page 2: Important Note For System Connection
POWER FACTOR CONTROLLER RG3-12C/CS ATTENTION! Precautions for Safe Use and Installation Important Note for System Connection. Generator Input Connection “Cosj” “Cosj2” Monitoring the measured temperature NOTE: RG3-12C/CS temperature measurement feature is optional. -
Page 3: Introduction
2 28 .7 Measured Parameters : 2 23 .4 DIMENSIONS 1.2.a Button Functions Type PR16 (144x144) DOWN 34.5 138.4 Excessive force can damage the device. Turn the screw into the terminals and tighten until the RG3-12C/CS is secured in place. - Page 4 POWER FACTOR CONTROLLER RG3-12C/CS 1.2.b Front Panel Functions 15. PROGRAM / I LED 16. TIME / W LED 225.5 228.7 17. Capacitors/VAr LED 22 3 .4 18. NETWORK/VA LED 1. L1 2. L2 3. L3 19. RESET / HAR LED 4.
-
Page 5: Rear Panel
POWER FACTOR CONTROLLER RG3-12C/CS 1.3 Rear Panel CONNECTION DIAGRAM RS485 Generator Alarm Relay Input 110~250 V AC Warnings : Phase current should not be aqual to zero in order to let the device to detect the connection error. A 3-phase capacitor has to be connected to 1st step of the device... -
Page 6: Installation Of Rg3-12C/Cs
POWER FACTOR CONTROLLER RG3-12C/CS 2. INSTALLATION OF RG3-12C/CS Warning: Device warns user by blinking (short ON, long OFF) the LED of the capacitor steps which will be switched on. Also device warns user by blinking (long ON, short OFF) the LED of the capacitor steps which will be switched off. - Page 7 POWER FACTOR CONTROLLER RG3-12C/CS 3.1.b Automatic Capacitor Recognition Mode Setting 3.1.c Automatic Connection Recognition Mode Setting NOTE: If there are other loads than compensation connected to the system, the device may not find the connection at the first try and may need several tries.
-
Page 8: Target Cos J And Cos J2 Value Setting
POWER FACTOR CONTROLLER RG3-12C/CS 3.2 Target Cosj and Target Cosj2 Value Setting 3.3 Last Capacitor Step Number Setting Capacitive NOT: When program 10(PS-10) is selected, it is better if the last capacitor Inductive step number is set as 12. When program 10 is selected, the activation... -
Page 9: Selection Of Proper Switching Sequence
POWER FACTOR CONTROLLER RG3-12C/CS 3.4 Selection of Proper Switching Sequence SAUE “ESC” “SAVE SEt yES” “SET” “ESC” P R O G R A M S E Q U E N C E linear Note: In the 10th program(PS-10), power values and connection types(except the first step) of the single phase capacitor steps(r, s, t, rst, oFF) can be set by user. - Page 10 POWER FACTOR CONTROLLER RG3-12C/CS 3.5.b Switch-Off Delay Time Setting “SET” “UP/DOWN” “SET” “SET” “SET” “SET” “UP/DOWN” “UP/DOWN” “ESC” “ESC” SAUE SAUE “ESC” “SAVE SEt yES” “ESC” “SAVE SEt yES” “SET” “SET” “ESC” “ESC”...
-
Page 11: Power Value And Connection Type Settings For Capacitors
“RST” “on” “of” Note : When setup parameter is selected as “on” in Auto menu, after completing the measurement of capacitor powers according to the selected program, RG3-12C/CS continues to work in “setup:of” mode. “SET” 3 sec. “SET” “SET” “UP/DOWN”... - Page 12 POWER FACTOR CONTROLLER RG3-12C/CS 3.6.b Second Capacitor Step Setting “SET” “UP/DOWN” “RST” “SET” “SET” “UP/DOWN” “r”, “S”, “t” “rSt” “SET” “oFF” “ESC” Note : If the 10th program is selected, capacitor powers can be set separately for each capacitor step. However; if any program except Note : After automatic calculation of the capacitors, if “oFF”...
-
Page 13: Current And Voltage Transformer Ratio Settings
POWER FACTOR CONTROLLER RG3-12C/CS 3 sec. “SET” “UP/DOWN” “SET” “ESC” SAUE “SET” “ESC” “SAVE SEt yES” “SET” “ESC” CAP C-03 CAP C-04 CAP C-05 CAP C-06 “SET” CAP C-07 CAP C-08 CAP C-09 CAP C-10 CAP C-11 CAP C-12 “SET”... - Page 14 POWER FACTOR CONTROLLER RG3-12C/CS 3.7.b Voltage Transformer Ratio Setting 3.7.c Reactive Energy Calculation Method Setting For example: Note : Be aware that this value is entered as a ratio, not VT primary or secondary value. Mechanical Energymeter Digital Energymeter Reactive Energy...
-
Page 15: Reset Settings
POWER FACTOR CONTROLLER RG3-12C/CS 3.8 Reset Settings 3.8.b Reactive/Active Ratio Reset Setting 3.8.a Alarm Reset Setting “yES” Note : When an alarm occurs, the alarm relay switches on and the related alarms LED turns on and the alarm code is displayed. Even if alarm conditions disappear, the alarm relay will stay switched on. -
Page 16: Alarm Settings
POWER FACTOR CONTROLLER RG3-12C/CS 3.9 Alarm Settings overvoltage, reactive/active ratio, *temperature “SET” 3.9.a Overvoltage Alarm Setting 3.9.a.a Overvoltage Setting 3 sec. “SET” “SET” “ESC” Note : If over voltage value is set as “0”, this function is disabled. SAUE “UP/DOWN”... - Page 17 POWER FACTOR CONTROLLER RG3-12C/CS “SET” “SET” “UP/DOWN” “on” “of” “SET” “SET” “SET” “ESC” “ESC” SAUE SAUE “ESC” “SAVE SEt yES” “SET” “ESC” “ESC” “SAVE SEt yES” 3.9.b Reactive / Active Ratio Setting “SET” “ESC” 3.9.a.c Switch On or Switch Off Setting of Capacitor Steps for Overvoltage Alarm Setting 3.9.b.a Capacitive Ratio Setting...
- Page 18 POWER FACTOR CONTROLLER RG3-12C/CS SAUE “SET” “ESC” “SAVE SEt yES” “SET” “ESC” 3.9.b.b Inductive Ratio Setting “UP/DOWN” “Alr rAtE CAP” “rAtE Ind” “UP/DOWN” “SET” “SET” “SET” “SET” “SET” “SET” “ESC” “SET” “ESC”...
- Page 19 POWER FACTOR CONTROLLER RG3-12C/CS SAUE “ESC” “SAVE SEt yES” “SET” “ESC” “SET” 3.9.c Temperature Alarm Settings Note : Temperature measurement feature is optional for RG3-12CS. 3.9.c.a Programming the Upper Limit of Temperature Alarm 3 sec. “SET” “SET” “UP/DOWN” “SET” “SET”...
- Page 20 POWER FACTOR CONTROLLER RG3-12C/CS 3.9.c.c Programming the Switching Off of the Capacitor Steps in Case of Overheating 3.9.c.b Programming the Lower Limit of Temperature Alarm “on” “of” “UP/DOWN” “UP/DOWN” “SET” “SET” “SET” “SET” “ESC” “on” “oF” “UP/DOWN” “SET” “SET” “ESC”...
- Page 21 POWER FACTOR CONTROLLER RG3-12C/CS 3.9.d Harmonic Setting 3.9.d.a Overvoltage Harmonic Setting “SET” 3 sec. “SET” “UP/DOWN” “SET” SAUE “SET” “ESC” “SAVE SEt yES” “SET” “ESC” 3.9.d.b Harmonic Alarm Delay Time Setting “UP/DOWN” “UP/DOWN” “SET” “SET”...
-
Page 22: Fan Relay Settings
3.9.d.c Programming the Switching Off of the Capacitor “SET” “ESC” Steps in Case of Harmonic Alarm 3.10 Fan Relay Settings “on” “of” Note: Temperature measurement feature for RG3-12C/CS is optional. 3.10.a Switch On Value for Fan Relay 3 sec. “SET” “UP/DOWN” “UP/DOWN” “SET”... - Page 23 POWER FACTOR CONTROLLER RG3-12C/CS “SET” “UP/DOWN” “SET” “SET” “SET” “ESC” SAUE “SET” “ESC” “SAVE SEt yES” “SET” “SET” “ESC” “ESC” SAUE 3.10.b Switch Off Value for Fan Relay “ESC” “SAVE SEt yES” “SET” “ESC” “SET”...
-
Page 24: Resetting The Energy Counters And Entering The Energy Values
POWER FACTOR CONTROLLER RG3-12C/CS 3.11 Resetting the Energy Counters and Entering the Energy Values “SET” 3.11.a Entering the Energy Values Note: SAUE “SET” 3 sec. “ESC” “SAVE SEt yES” “SET” “ESC” 3.11.b Resetting the Energy Values “UP/DOWN” “SET” “SET” “UP/DOWN”... -
Page 25: Computer Communication Settings
POWER FACTOR CONTROLLER RG3-12C/CS “SET” “UP/DOWN” “yES” “no” “SET” SAUE “yES” “ESC” “SAVE SEt yES” “no” “SET” “UP/DOWN” “SET” “ESC” 3.11.c Conditioning the Energy Counters to Work SAUE with the Generator Input “ESC” “SAVE SEt yES” “SET” “ESC” 3.11 Computer Communication Settings (RS-485) NOTE: Computer communication feature is only available for RG3-12CS model. - Page 26 POWER FACTOR CONTROLLER RG3-12C/CS “SET” “SET” “SET” “UP/DOWN” “SET” “SET” “ESC” SAUE “SET” “SET” “ESC” “ESC” “SAVE SEt yES” SAUE “SET” “ESC” 3.11.c Parity Setting “no”, “odd” “EVEn” “ESC” “SAVE SEt yES” “SET” “ESC” 3.11.b Baud Rate Setting “UP/DOWN” “UP/DOWN”...
-
Page 27: Password Activation And Change Settings
POWER FACTOR CONTROLLER RG3-12C/CS “UP/DOWN” “SET” “SET” “SET” “ESC” SAUE “ESC” “SAVE SEt yES” “1234” “SET” “SET” “ESC” 3.12 Password Activation and Change Settings Note: “UP/DOWN” “SET” “ESC” Note: Factory default value for pin code is “1234” and it is not activated. - Page 28 POWER FACTOR CONTROLLER RG3-12C/CS Note: If you do not save your changes, they will not be valid. Note: After the settings in the menu are done, the changed settings are selected and the menu can be shown by pressing the “SET”...
-
Page 29: Displaying Of Instantaneous Values
POWER FACTOR CONTROLLER RG3-12C/CS Total Cosj 4. DISPLAYING OF INSTANTANEOUS VALUES Cosj “DOWN” “UP” “DOWN” “SET” 1.000 “ESC” -.947 Cosj Voltages Cosj “UP/DOWN” “SET” “SET” 225.5 -.912 228.7 0.973 22 3 .4 0.945 Cosj “SET” “SET”... -
Page 30: Currents, Active Powers, Total Active Powers
POWER FACTOR CONTROLLER RG3-12C/CS Currents Active Powers “UP/DOWN” “UP/DOWN” “SET” “SET” 225.5 25.87 228.7 32.56 22 3 .4 18.93 “SET” “SET” Total Active Powers “DOWN” Note: The dot at the most right digit of the third display indicates that the displayed value is export value. -
Page 31: Reactive Powers, Total Reactive Powers, Apparent Powers, Total Apparent Powers
POWER FACTOR CONTROLLER RG3-12C/CS Reactive Powers Apparent Powers “UP/DOWN” “UP/DOWN” “SET” “SET” 225.5 225.5 228.7 228.7 22 3 .4 22 3 .4 “SET” “SET” Total Reactive Powers Total Apparent Powers “DOWN” “DOWN” Note : The dot at the most right digit of the third display indicates that the displayed value is capacitive reactive power. -
Page 32: Active Import Energy, Active Export Energy, Inductive Reactive Energy, Capacitive Reactive Energy, Temperature, Error Codes
POWER FACTOR CONTROLLER RG3-12C/CS Active Import Energy Capacitive Reactive Energy “E” “UP/DOWN” “I” E-00 1-20 4035 3385 386.2 706.8 Active Export Energy Capacitive/Active ratio Capacitive/Active ratio “DOWN” Refer to page 17 - Inductive ratio setting “E” Note: When you reset the reactive/active ratio, the value in the first display will be reset and updated continiously. -
Page 33: Appendix
POWER FACTOR CONTROLLER RG3-12C/CS 5. APPENDIX ALARM CODES DESCRIPTION REASON Angle degree between phase voltages doesn’t equal to 120° Neutral and Voltage terminal connections are incorrect. Reverse phase sequence Voltage terminal connections are in counter-clockwise direction One or more phase voltages don’t exist... -
Page 34: Register Table
POWER FACTOR CONTROLLER RG3-12C/CS REGISTER TABLE REGISTER TABLE ADDRESS (HEX) PARAMETER FORMAT MULTIPLIER UNIT FUNCTION... - Page 35 POWER FACTOR CONTROLLER RG3-12C/CS REGISTER TABLE ADDRESS (HEX) PARAMETER FORMAT MULTIPLIER UNIT FUNCTION...
- Page 36 POWER FACTOR CONTROLLER RG3-12C/CS REGISTER TABLE ADDRESS (HEX) PARAMETER FORMAT MULTIPLIER UNIT FUNCTION...
- Page 37 POWER FACTOR CONTROLLER RG3-12C/CS REGISTER TABLE ADDRESS (HEX) PARAMETER FORMAT MULTIPLIER UNIT FUNCTION...
- Page 38 POWER FACTOR CONTROLLER RG3-12C/CS REGISTER TABLE ADDRESS (HEX) PARAMETER FORMAT MULTIPLIER UNIT FUNCTION...
-
Page 39: Capacitor Calculation Table
POWER FACTOR CONTROLLER RG3-12C/CS CAPACITOR CALCULATION TABLE kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr kVAr... -
Page 40: Technical Features
POWER FACTOR CONTROLLER RG3-12C/CS Technical Features Please look at the rear label of the device. Factory Set Values Optional ** Only available for RG3-12CS... - Page 41 RG3-12C/CS MENU MAP START INSTANT VALUES Import Active Export Active Indüctive Reactive Capacitive Reactive Cosj SCosj Voltages Currents Active SActive Reactive SReactive Apparent SApparent Temperature Error Energy Energy Energy Energy Max. Transformer Delay Program Target Target Energy Alarm Communication Reset...
