TL255
I
A
C
NTERNET
LARM
OMMUNICATOR
Internet Communicator - North America
Installation Manual
v3.0
: This manual contains information on limitations regarding product use and function and information on the limitations
as to liability of the manufacturer.
firealarmresources.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSC TL255 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tyco DSC TL255

  • Page 1 TL255 NTERNET LARM OMMUNICATOR Internet Communicator - North America Installation Manual v3.0 : This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer. firealarmresources.com...
  • Page 2: Table Of Contents

    Internet Alarm Communicator Installation Manual ABLE OF ONTENTS Warning: Installer Please Read Carefully General Information Communicator Technical Specifications Features UL/ULC Installation Requirements Ratings Hardware Compatibility Software Compatibility Communicator Pre Installation Configuration Encryption Communicator Configuration with SCW Installing CAT 5 Cable (TL255) Communicator Reset Establishing a Communication Channel with the SCW Panel.
  • Page 3: Warning: Installer Please Read Carefully

    Internet Alarm Communicator Installation Manual Warning: Installer Please Read Carefully WARNING: I NSTALLER LEASE AREFULLY Note to Installers Motion Detectors The Warnings on this page contain vital information. As the only individual in Motion detectors can only detect motion within the designated areas as shown in contact with system users, it is the installer’s responsibility to bring each item in their respective installation instructions.
  • Page 4: General Information

    Keypad Data Display Internet Alarm Communicator Installation Manual ENERAL NFORMATION Domain Name Service (DNS) programming is not permitted in UL/ULC listed systems. EYPAD ISPLAY • Section-Toggle Options: The number is displayed when Toggle is ON. The number is not displayed when Toggle is OFF. (e.g., Toggle Options displays: “[--3--6--]”.
  • Page 5: Communicator Technical Specifications

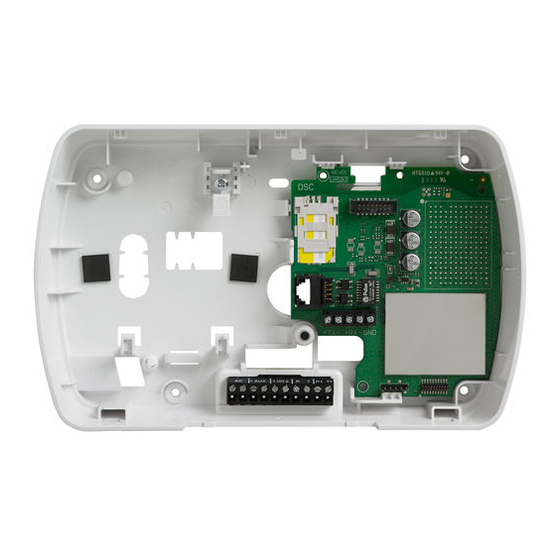

    Internet Alarm Communicator Installation Manual General Information OMMUNICATOR ECHNICAL PECIFICATIONS ENERAL NFORMATION All versions of the Internet Alarm Communicator are housed inside the Self Contained Wireless (SCW) 9055/9057. Each version of Alarm Communicators covered by this Installation Manual are described below: TL255: Is an Internet Alarm Communicator that sends alarm communication to Sur-Gard System I, II, III, and IV central station receivers through an Ethernet connection.
  • Page 6: Software Compatibility

    Software Compatibility Internet Alarm Communicator Installation Manual OFTWARE OMPATIBILITY The Communicator is compatible with the following software: • DLS 5. OMMUNICATOR NSTALLATION ONFIGURATION Before leaving the installation site, the Communicator TL255 shall be connected via an APPROVED (acceptable to the local authorities) Network Interface Device (NID) (e.g., for UL Installations, U60950 listed NID).
  • Page 7: Communicator Reset

    Internet Alarm Communicator Installation Manual Communicator Reset OMMUNICATOR ESET The Communicator can be reset by cycling the power on the SCW. SCW P STABLISHING A OMMUNICATION HANNEL WITH THE ANEL The Communicator interfaces to the SCW through a keyed 16 pin Ribbon cable. See Table 4 . The key prevents incorrect connection of the ribbon cable connector to the SCW and Communicator.
  • Page 8: Programming Options

    System Options Internet Alarm Communicator Installation Manual ROGRAMMING PTIONS The Programming Sections described in this document can be viewed at the SCW LCD. To start programming enter: [*][8][installer code] [851][# # # ], where # # # is the 3 digit Section number referenced in this section. The Programming Worksheets at the end of this document can be used to record the new values when programming changes have been made from the default values.
  • Page 9: Programming Options

    Internet Alarm Communicator Installation Manual Programming Options [006] System Toggle Options 2 [1] Ethernet 1 Receiver Enabled. Default (ON) (OFF for 3G2055). ON: Ethernet Receiver 1 is enabled. OFF: Ethernet Receiver 1 is disabled. [2] Ethernet 2 Receiver Enabled. Default (ON) (OFF for 3G2055). ON: Ethernet Receiver 2 is enabled.
  • Page 10 Programming Options Internet Alarm Communicator Installation Manual [020] Time Zone Default (00) Use Column 2 (Offset Hours) to find your local Time Zone. Record the two digit HEX value from Column 1 (HEX Value) on the same row. Program this HEX value for your Time Zone. Valid range is 00 - FF. Table 5: World Wide Time Zones Offset Offset...
  • Page 11 Internet Alarm Communicator Installation Manual Programming Options Table 5: World Wide Time Zones Offset Offset Location Location Value Hours Abbrev Value Hours Abbrev Australian Western Standard Eastern Standard Time AWST Time Colombia Time China Standard Time Ecuador Time HKST Hong Kong Standard Time Waktu Indonesia Bagian Ten- Peru Time WITA...
  • Page 12 Programming Options Internet Alarm Communicator Installation Manual Table 5: World Wide Time Zones Offset Offset Location Location Value Hours Abbrev Value Hours Abbrev Australian Eastern Standard Eastern Greenland Time AEST Time Cape Verde Time Guam Standard Time AZOST Azores Standard Time YAPT Yap Time Western European Time...
  • Page 13: System Test Options [026 - 029]

    Internet Alarm Communicator Installation Manual Communications Reporting Codes Table 5: World Wide Time Zones Offset Offset Location Location Value Hours Abbrev Value Hours Abbrev WKST West Kazakhstan Standard Time Pakistan Time YEKT Yekaterinburg Time Uzbekistan Time Turkmenistan Time Tajikistan Time French Southern and Antarctic Time Maldives Time...
  • Page 14 System Test Options [026 - 029] Internet Alarm Communicator Installation Manual • The module will send periodic test transmissions to each receiver independently, with no backups. • If the test transmission fails to any of the programmed receivers, an FTC trouble will be generated. Alternate Test Transmission: Alternate Test Transmission can be enabled or disabled in Section [005] Toggle Option [7].
  • Page 15: Ethernet Receiver 1 Options

    Internet Alarm Communicator Installation Manual Ethernet Receiver 1 Options THERNET ECEIVER PTIONS [101] Ethernet Receiver 1 Account Code Default (0000000000) The account code is used by the central station to distinguish between transmitters. This account code is used when transmitting heart- beat signals to the central station receiver.
  • Page 16: Ethernet Options

    Ethernet Options Internet Alarm Communicator Installation Manual [114] Ethernet Receiver 2 Remote Port Default (0BF5/3061) This Section is used to program the port number used by Ethernet Receiver 2. Set the value of this port when your installation is located behind a firewall, and must be assigned a particular port number as determined by your central station system administrator.
  • Page 17: Receiver Diagnostic Testing

    Internet Alarm Communicator Installation Manual Receiver Diagnostic Testing [662] Interactive Port Settings [1] Parity Enable/Disable Toggle Default (OFF) ON: Parity Enabled OFF: Parity Disabled [2] Parity Type Default (OFF) ON: Even Parity Enabled OFF: Odd Parity Enabled [3] Stop Bits Toggle Default (OFF) ON: 1 Stop Bit is used OFF: 2 Stop Bits are used...
  • Page 18: Communicator Troubleshooting

    Communicator Troubleshooting Internet Alarm Communicator Installation Manual 00: Default Module. All programming Sections in module revert to factory settings. This will erase all existing programming of the unit. 55: Reset. The Communicator is reset. This option is equivalent to power cycling the Communicator. Communicator Troubleshooting [984] Communicator Status The communicator status sections are intended to provide the installer with real-time status of the communicator’s functionality, opera-...
  • Page 19 Internet Alarm Communicator Installation Manual Communicator Troubleshooting Trouble Indicator Possible Causes Trouble Possible Solutions Digit Check with your ISP to confirm Internet service is active in your area. Ensure your Ethernet cable is securely inserted into the RJ45 jack of the Communicator and the Hub/Router/ Switch.
  • Page 20: Programming Worksheets

    System Options Internet Alarm Communicator Installation Manual ROGRAMMING ORKSHEETS [020] Time Zone YSTEM PTIONS Default (CAFE) Valid range: 0000 - FFFF. [001] Ethernet IP Address |____|____|____|____| Default (000.000.000.000) [022] Communications Format |____|____|____||____|____|____||____|____|____|____|____|____| Default (04) Program 03 (CID), 04 (SIA). [002] Ethernet IP Subnet Mask |____|____| Default (255.255.255.000) [023] Panel Absent Trouble...
  • Page 21: Ethernet Receiver 2 Options

    Internet Alarm Communicator Installation Manual Ethernet Receiver 2 Options [103] Ethernet Receiver 1 Address [652] Interactive Access Code Default (127.000.000.001) Default (12345678) Valid range: 00000000 - FFFFFFFF. |____|____|____|____|____|____| |____|____|____||____|____|____||____|____|____|____|____|____| [661] Interactive Baud Rate [104] Ethernet Receiver 1 Remote Port Default (05; 115200 Baud) Valid range: 01 - 05. Default (0BF5/3061) Valid range: 0000 - FFFF.
  • Page 22: End User Licence Agreement

    EULA if You fail to comply with the terms and conditions of this EULA. In such HARDWARE) and Digital Security Controls (DSC), a division of Tyco Safety event, You must destroy all copies of the SOFTWARE PRODUCT and all of its Products Canada Ltd., the manufacturer of the integrated security systems and the...
  • Page 23 Internet Alarm Communicator Installation Manual Limited Warranty IMITED ARRANTY Digital Security Controls (DSC) warrants the original purchaser products disassembled or repaired in such a manner as to that for a period of twelve (12) months from the date of purchase, adversely affect performance or prevent adequate inspection or the product shall be free of defects in materials and workmanship testing to verify any warranty claim.
  • Page 24 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. © 2013 Tyco International Ltd. and its Respective Companies. All Rights Reserved. Toronto, Canada · Tech Support: 1-800-387-3630 (CA, US), 905-760-3000 Printed in Canada firealarmresources.com...
