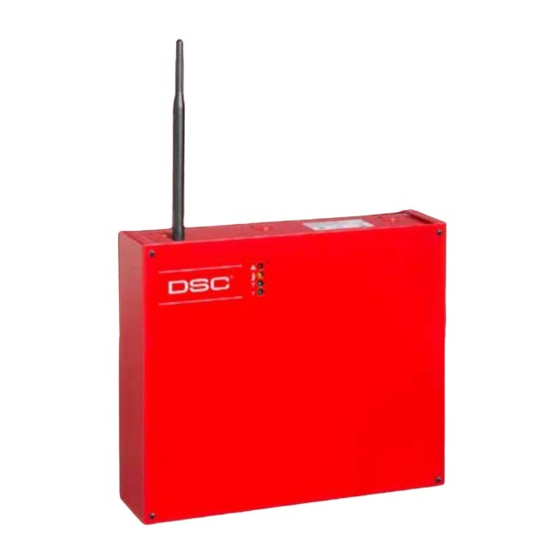

3G3070-CF
Fire Alarm Communicator for central station service fire alarm - commercial
RF communicator 3G (HSPA) network signaling devices
Installation Manual
v3.5
WARNING: This manual contains information on limitations regarding product use and
function and information on the limitations as to liability of the manufacturer.
firealarmresources.com
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Tyco DSC 3G3070-CF
Summary of Contents for Tyco DSC 3G3070-CF
- Page 1 3G3070-CF Fire Alarm Communicator for central station service fire alarm - commercial RF communicator 3G (HSPA) network signaling devices Installation Manual v3.5 WARNING: This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer. firealarmresources.com...
-
Page 2: Table Of Contents
Table of Contents Introduction ..................1 Features ..................... 1 Technical Specifications ..............1 Description ..................2 Approvals Information ..............2 Identification of Parts ................ 3 Installation of GS3070-CF ..............4 3G3070-CF Connections Description ..........5 Status LEDs ..................6 Operating Modes ................7 Inputs Activation Mode .............. -
Page 3: Introduction
Introduction The 3G3070-CF is a wireless communicator for UL commercial fire and/or burglary applications. The 3G3070-CF can send status change events information over the 3G (HSPA) or 2G (GPRS) Network from the Alarm Control Panel at the protected premises to a supervising station. The device is compatible with UL listed alarm receiver Models SG-System IV, SG-SYSTEM III (using SG-DRL3-IP line card), SG- SYSTEM II and SG-SYSTEM I. -
Page 4: Description
Description This 3G3070-CF manages transmissions to a central station and can simulate the landline in the event of trouble (e.g., landline down) or even substitute the landline completely in areas where the 3G or 2G service is provided and a landline is not available. The 3G3070-CF has the capability of communicating alarm signals via the GPRS data network. -
Page 5: Identification Of Parts
Identification of Parts The numbers in square brackets [ [ [ [ [ ] ] ] ] ] in this manual refer to the main parts of the GS3070-CF (see Fig.1 below) described in this section. WARNING!: HIGH VOLTAGE DISCONNECT POWER AND TELEPHONE LINES PRIOR TO SERVICING Power Power... -
Page 6: Installation Of Gs3070-Cf
Installation of GS3070-CF CONNECT 24 Enrollment Information Only authorized dealers can enroll a 3G3070-CF with CONNECT 24. Dealer application forms and additional information on the CONNECT 24 Voice Response Unit can be found at the CONNECT 24 web site www www.connect24.com .connect24.com .connect24.com... -
Page 7: 3G3070-Cf Connections Description
3G3070-CF Connections Description 3G3070-CF Module (1) Earth Ground - (1) Earth Ground - (1) Earth Ground - (1) Earth Ground - (1) Earth Ground - This terminal must be connected to the Mains Earth, in order to comply with the Telecommunications Network Safety Standards (Overvoltage Protection Requirements). -
Page 8: Status Leds
Status LEDs The 3G3070-CF has 4 LEDs used for local indication of module functionality, status (trouble conditions) and receiving signal strength. RED — This LED is Normally OFF, but will blink in the event of trouble. This LED will switch ON within 3 minutes in the event of 3G Radio [5 5 5 5 5 ] trouble, or when the wireless Network is unavailable (NO SERVICE). -
Page 9: Operating Modes
Operating Modes Simulated Landline Mode The simulated land line mode provides the fire alarm control panel (with dialer interface) with a communication path for standalone type applications (Wireless network being the sole communication technology used) or for back-up type applications (where two communication technologies PSTN and wireless are used). -
Page 10: Inputs Activation Mode
Inputs Activation Mode The 3G3070-CF also has 4 inputs that can be used to trigger specific event transmissions. The events associated with these inputs will be transmitted using Contact ID Communication Format. The default settings for these inputs (as they should be correlated at the supervising station) are: INPUT 1- AC LOSS INPUT 3 - FIRE ALARM INPUT 2 - FIRE SUPERVISORY... -
Page 11: Swinger Shutdown
Swinger Shutdown Swinger Shutdown is followed by a PSTN line trouble, limiting this event to a maximum of 3 trouble reports every 24 hours (including the PSTN line trouble sent when PTM is active). The condition will restore at midnight at which point the counter is reset. Hardware Default To perform a hardware default and force the unit to get the latest configuration from Connect 24, follow these steps:... -
Page 12: Troubleshooting Guide
Troubleshooting Guide Powering up the 3G3070-CF Powering up the 3G3070-CF Powering up the 3G3070-CF Powering up the 3G3070-CF Powering up the 3G3070-CF – when powering up the 3G3070-CF, always connect the battery first before connecting primary DC power from the control panel or transformer. W W W W W iring Primar iring Primar iring Primar... -
Page 13: Troubleshooting Guide
Troubleshooting Guide o l l o l l o l l o l l o l l e r i e r i e r i e r i e r i c i n o l l g i l c i n o l l g i l... -
Page 14: Troubleshooting Guide
Troubleshooting Guide The Red light will flash to indicate various trouble conditions outlined previously. If multiple trouble conditions are present, the red light will flash according to the highest priority trouble. For example, if both a 3G3070-CF Power trouble (one flash) and an insufficient signal strength trouble (four flashes) are present;... -
Page 15: Appendix - Wiring Diagrams
APPENDIX - Wiring Diagrams Fig. 2 - 3G3070-CF Module Wiring Diagram 3G3070-CF Connect relay contacts to a zone input on the alarm control panel Phone line connection is required only for for 3G3070-CF troubles supervision back-up configurations. In stand-alone applica- (24 h type zone) tions, no other communication technology is required for Fire Alarm Monitoring. - Page 16 Fig. 2a - 3G3070-CF Module Wiring Diagram - Standalone Configuration 3G3070-CF Connect relay contacts to a zone input on the alarm control panel for 3G3070-CF troubles supervision (24 h type zone) These inputs are typically used to interface with fire alarm panels that do not have a dialer interface and use the fire alarm, fire supervisory or fire trouble output relay contacts to send...
- Page 17 Fig. 4 - Telephone Connection (Not required when 3G3070-CF is used as a standalone device) CONTROL PANEL RJ-31X Incoming Handset Phone line 3G3070-CF T1 R1 Fig. 5 - Optional Power Supply And Supervision Wiring Diagram NOTES: 1. Program the Control Panel’s input Zone/Point as 24h “Supervisory”...
- Page 18 FCC COMPLIANCE STATEMENT Incidence of Harm CAUTION: Changes or modifications not expressly approved by Digital If this equipment 3G3070-CF causes harm to the telephone network, the Security Controls could void your authority to use this equipment. This telephone company will notify you in advance that temporary discontinuance equipment generates and uses radio frequency energy and if not of service may be required.
- Page 19 (the company, individual or entity who acquired the Software and any related SOFTWARE PRODUCT), the accompanying printed materials, and any copies of the Hardware) and Digital Security Controls, a division of Tyco Safety Products SOFTWARE PRODUCT, are owned by DSC or its suppliers. You may not copy the Canada Ltd.
- Page 20 The trademarks, logos, and service marks displayed on this document are registered in the United States [or other countries]. Any misuse of the trademarks is strictly prohibited and Tyco International Ltd. will aggressively enforce its intellectual property rights to the fullest extent of the law, including pursuit of criminal prosecution wherever necessary.
