Summary of Contents for Rohde & Schwarz TSME DC Series

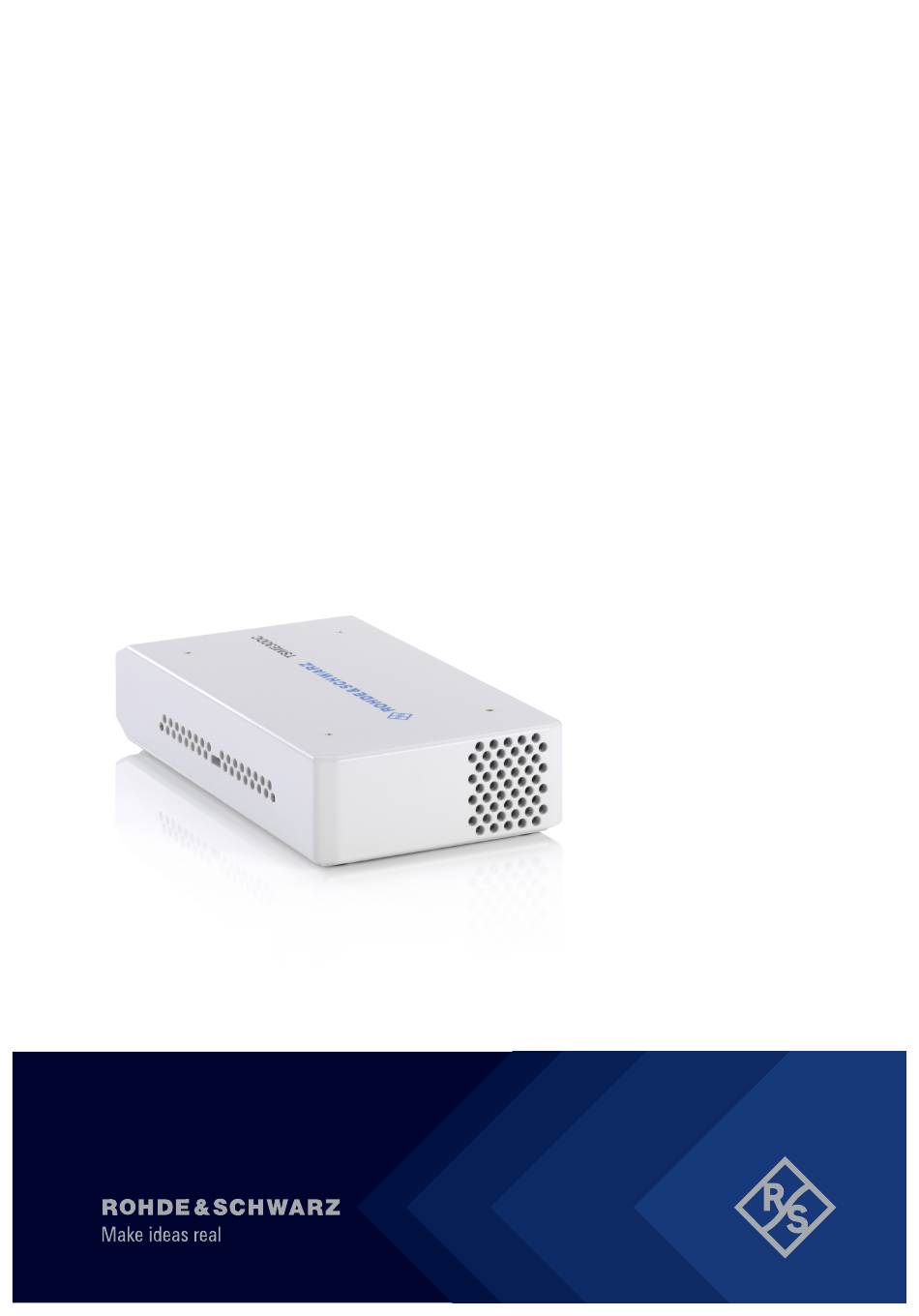

- Page 1 ® R&S TSMExxDC Ultracompact Downconverters Manual (a1:X2) 4901104002 Version 04...
- Page 2 ® This manual applies to the following R&S TSME downconverter models: ● R&S ® TSME30DC (4901.1004.02) ● R&S ® TSME44DC (4901.2600.02) © 2022 Rohde & Schwarz GmbH & Co. KG Mühldorfstr. 15, 81671 München, Germany Phone: +49 89 41 29 - 0 Fax: +49 89 41 29 12 164 Email: info@rohde-schwarz.com...
-
Page 3: Table Of Contents
® Contents R&S TSMExxDC Contents 1 Safety and regulatory information........5 1.1 Safety instructions................5 1.2 Labels on the product................7 1.3 Korea certification class B..............7 2 Welcome................. 8 2.1 Documentation overview..............8 2.1.1 Manual....................8 2.1.2 Basic safety instructions................. 8 2.1.3 Brochures....................8 2.1.4 Application notes, application cards, white papers, etc...... - Page 4 ® Contents R&S TSMExxDC 5.1 Cascading R&S TSMA6/6B and R&S TSME6........19 5.2 Connecting R&S TSMA6/6B-BP with R&S TSME6 and R&S TSMExxDC...................20 6 Measurement setup............. 23 7 Transporting.................27 8 Maintenance, storage and disposal........28 8.1 Cleaning....................28 8.2 Storage....................28 8.3 Disposal....................28 9 Contacting customer support..........
-
Page 5: Safety And Regulatory Information
® Safety and regulatory information R&S TSMExxDC Safety instructions Safety and regulatory information The product documentation helps you use the product safely and efficiently. Fol- low the instructions provided here and in the following chapters. Intended use The R&S TSMExxDC instruments are intended to upgrade the R&S TSMx6 scan- ners to measure 5G NR signals in the mmWave frequency range. - Page 6 ® Safety and regulatory information R&S TSMExxDC Safety instructions Never open the casing of the product. Only service personnel authorized by Rohde & Schwarz are allowed to repair the product. If any part of the product is damaged or broken, stop using the product. Contact Rohde & Schwarz customer service at http://www.customersupport.rohde-schwarz.com.
-
Page 7: Labels On The Product
® Safety and regulatory information R&S TSMExxDC Korea certification class B Potential hazard Read the product documentation to avoid personal injury or product damage. DC - direct current Connect to a DC power supply of the specified voltage range. Labels on the product Labels on the casing inform about: ●... -
Page 8: Welcome
® Welcome R&S TSMExxDC Documentation overview Welcome Documentation overview This section provides an overview of the R&S TSMExxDC user documentation. Unless specified otherwise, you find the documents on the R&S TSMExxDC product page at: www.rohde-schwarz.com/manual/tsmx 2.1.1 Manual Introduces the R&S TSMExxDC, includes general information, e.g. safety instruc- tions and describes how to connect the instrument in a measurement setup. -
Page 9: Key Features
® Welcome R&S TSMExxDC Key features www.rohde-schwarz.com/application/tsmx Key features ● Ultra broadband RF frequency range for down conversion (24 – 44 GHz) – R&S TSME30DC with a frequency range from 24 GHz to 30 GHz – R&S TSME44DC with a frequency range from 24 GHz to 44 GHz ●... -
Page 10: Preparing For Use
® Preparing for use R&S TSMExxDC Connecting to power Preparing for use Here, you can find basic information about setting up the product for the first time. Unpacking and checking 1. Unpack the product carefully. 2. Retain the original packing material. Use it when transporting or shipping the product later. -
Page 11: Connecting To The Vehicle Power Supply Via Terminal
® Preparing for use R&S TSMExxDC Connecting to power 3.2.2 Connecting to the vehicle power supply via terminal To connect vehicle power supply via terminal 1. Demount the cigarette lighter adapter from the cable. 2. Connect the open ends of the cable to the DC supply. Ensure that the polarity is correct. -
Page 12: Connecting To Rf In
® Preparing for use R&S TSMExxDC Connecting to RF In ● R&S TSME-Z1 has an output power of about 30 W, sufficient for up to two products, one TSME6 and one TSME30/44DC. ● R&S TSMA6-Z1 has an output power of 105 W and is suitable for multiple TSMx products. -
Page 13: Connecting To If 1-5
® Preparing for use R&S TSMExxDC Connecting to IF 1-5 b) R&S TSME44DC (see Figure 4-3) ● RF In 24 GHz to 44 GHz The K connector is sensitive to mechanical stress. Use the following han- dling precautions. ● Always use a torque wrench and mount the cable end with 60 Ncm. Connecting to IF 1-5 The SMA connector is sensitive to mechanical stress. -
Page 14: Instrument Tour
® Instrument tour R&S TSMExxDC Front panel view Instrument tour The meanings of the labels on the product are described in Chapter 1.2, "Labels on the product", on page 7. Front panel view The front panel of the R&S TSMExxDC does not provide any connectors or con- trol elements for operation. -
Page 15: Side Panel View
® Instrument tour R&S TSMExxDC Rear panel view Side panel view The R&S TSMExxDC provides a connector for a Kensington lock, which can be used to secure a mobile device against theft. The connector is located on the side panel of the instrument. Figure 4-1: Connector for a Kensington lock on the R&S TSMExxDC Rear panel view This figure shows the rear panel view of the R&S TSMExxDC. - Page 16 ® Instrument tour R&S TSMExxDC Rear panel view Figure 4-2: R&S TSME30DC rear panel "IF 1-5 (5x)" on page 17 "Pwr./State LEDs" on page 17 "AUX connector" on page 17 "DC In connector" on page 18 "RF In ≤ 6 GHz (SMA connector)" on page 18 "RF In (2x), R&S TSME30DC (K connector)"...
- Page 17 ® Instrument tour R&S TSMExxDC Rear panel view "DC In connector" on page 18 "RF In ≤ 6 GHz (SMA connector)" on page 18 "RF In (1x), R&S TSME44DC (K connector)" on page 18 IF 1-5 (5x) The IF 1 connector (blue frame) is the only IF output, which supports measure- ments below 6 GHz.
- Page 18 ® Instrument tour R&S TSMExxDC Rear panel view DC In connector The DC IN connector is required for the DC power supply (10-28 V, max. 1.8 A). For details, see Chapter 3.2, "Connecting to power", on page 10. RF In ≤ 6 GHz (SMA connector) The frequency range RF bypass input (SMA connector) supports measurements below 6 GHz.
-
Page 19: Vibration-Proofed Stacking
® Vibration-proofed stacking R&S TSMExxDC Cascading R&S TSMA6/6B and R&S TSME6 Vibration-proofed stacking Cascading R&S TSMA6/6B and R&S TSME6 To connect R&S TSMA6/6B and R&S TSME6 1. Screw the connecting elements (order no. 4900.0804.00) on the top of the R&S TSMA6/6B. ●... -
Page 20: Connecting R&S Tsma6/6B-Bp With R&S Tsme6 And R&Stsmexxdc
® Vibration-proofed stacking R&S TSMExxDC Connecting R&S TSMA6/6B-BP with R&S TSME6 and R&S TSMExxDC Figure 5-2: Aligning R&S TSMA6/6B and R&S TSME6 1 = R&S TSMA6/6B 2 = Connecting screws 3 = R&S TSME6 4 = Holes on the bottom pane of R&S TSME6 Connecting R&S TSMA6/6B-BP with R&S TSME6 and R&S TSMExxDC The following steps are valid for R&S TSME6 and downconverter... - Page 21 ® Vibration-proofed stacking R&S TSMExxDC Connecting R&S TSMA6/6B-BP with R&S TSME6 and R&S TSMExxDC 1 = Collar screws for connecting R&S TSME6 2 = Aux 1 / Aux 2 (auxiliary power out for connecting R&S TSME6/TSMExxDC via power cable R&S TSME-ZYC) 2.
- Page 22 ® Vibration-proofed stacking R&S TSMExxDC Connecting R&S TSMA6/6B-BP with R&S TSME6 and R&S TSMExxDC Figure 5-4: Connected R&S TSME6/TSMExxDC and R&S TSMA6/6B-BP 1 = R&S TSMA6/6B-BP 2 = R&S TSME6/TSMExxDC 4. Connect the power cable R&S TSMA6-BPPT resp. R&S TSMA6-BP2T from AUX1 resp.
-
Page 23: Measurement Setup
® Measurement setup R&S TSMExxDC Measurement setup Figure 6-1 shows a measurement setup with one R&S TSME30DC and five R&S TSME6 devices. Figure 6-1: Example measurement setup with 5 R&S TSME6 devices 1 = R&S TSME30DC 2 = Master R&S TSME6 3 = R&S TSME6 2 to 5 4 = Synchronization R&S TSME30DC - Master R&S TSME6* 5 = R&S TSME30DC IF 1 - Master R&S TSME6 RF In... - Page 24 ® Measurement setup R&S TSMExxDC *The cable to synchronize R&S TSME30DC and the master R&S TSME6 exists as separate cable and as essential part of the cable bundle to synchronize to master R&S TSME6 with the additional R&S TSME6 devices. The R&S TSMExxDC supports up to 5 scanners.
- Page 25 ® Measurement setup R&S TSMExxDC Figure 6-2: Tab "Downconverter Configuration" (Example: R&S TSME30DC) ● IF Output Receiver Configuration Specify the configuration of the IF output connectors of the R&S TSMExxDC. ● RF Input Antenna Configuration (R&S TSME30DC) Specify the configuration of the RF input antenna connectors of the R&S TSMExxDC.
- Page 26 ® Measurement setup R&S TSMExxDC – mmWave Antenna 1 (24 GHz to 44 GHz) For R&S ViCom and R&S ROMES, the API allows only the configuration of frequencies of activated antenna ports. ● Accept Configuration To confirm the current configuration settings, select the "Accept Configuration" button.
-
Page 27: Transporting
® Transporting R&S TSMExxDC Transporting Packing Use the original packaging material. It consists of antistatic wrap for electrostatic protection and packing material designed for the product. If you do not have the original packaging, use similar materials that provide the same level of protection. -
Page 28: Maintenance, Storage And Disposal
® Maintenance, storage and disposal R&S TSMExxDC Disposal Maintenance, storage and disposal The product does not require regular maintenance. It only requires occasional cleaning. It is however advisable to check the nominal data from time to time. Cleaning Do not use any liquids for cleaning. Cleaning agents, solvents (thinners, acetone), acids and bases can damage the front panel labeling, plastic parts and display. - Page 29 ® Maintenance, storage and disposal R&S TSMExxDC Disposal fulfills its obligation to take back and dispose of electrical and electronic waste. Contact your local service representative to dispose of the product. Manual 4901.1040.02 ─ 04...
-
Page 30: Contacting Customer Support
® Contacting customer support R&S TSMExxDC Contacting customer support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz product, contact our customer support center. A team of highly qualified engineers provides support and works with you to find a solution to your query on any aspect of the operation, program- ming or applications of Rohde &... -
Page 31: Index
® Index R&S TSMExxDC Index Application cards ........8 Application notes ........8 Brochures ..........8 Casing Labels ........... 7 Customer support ........30 Kensington Lock Connecting ..........15 Labels on casing ........7 Locks Connecting ..........15 Manual ............8 Safety instructions ......... 5, 8 White papers ..........
